When a labeled packet is received with a TTL of 1, the receiving LSR drops the packet and sends an ICMP message “time exceeded” (type 11, code 0) to the originator of the IP packet. This is the same behavior that a router would exhibit with an IP packet that had an expiring TTL.

What happens when a router receives a packet with a TTL?

What happens when a router receives a packet with a TTL of 0? The router drops the packet and sends an ICMP TTL expired message back to the host. … The hosts will still send and receive traffic, but traffic may not always reach the correct destination.

What happens to the value in the TTL field when a packet is forwarded by a router?

When a packet is by a router, the router subtracts 1 from the TTL count. Then, the packet travels to the next destination on the network. When the TTL count is 0, after the final subtraction, the packet is discarded by the router.

What happens when TTL reaches zero?

If the TTL field reaches zero before the datagram arrives at its destination, then the datagram is discarded and an Internet Control Message Protocol (ICMP) error datagram (11 – Time Exceeded) is sent back to the sender. … In practice, the TTL field is reduced by one on every hop.

What is TTL routers?

Time to live (TTL) refers to the amount of time or “hops” that a packet is set to exist inside a network before being discarded by a router.

Which type of packets are supported by OSPF?

• The Hello Packet : …
• The Database Description Packet : …
• The Link State Request packet : …
• The Link State Update packets: …
• The Link State Acknowledge packets:

Why are TTL values different?

The reason you get different responses is because different operating systems use different starting values for TTL. Some devices use 255, while others use 63. So, one of the devices you are pinging sends the reply with the TTL set to 255. By the time it gets back to you, it has decremented to 239.

What is extend TTL value?

Spoof LAN TTL value option allows to send packets to the Internet with the fixed TTL field in IP packet header whereas Expand TTL Value option influences traffic in the opposite direction, allowing not to discard those packets which TTL shall be set to zero when passing through a router.

Which protocol is used by the routers to send error messages when communicating with another IP address?

ICMP (Internet Control Message Protocol) is an error-reporting protocol that network devices such as routers use to generate error messages to the source IP address when network problems prevent delivery of IP packets.

What is default TTL value?

All versions use a default value of 255 for both TCP and UDP. TCP TTL uses a safe value of 128, but UDP TTL is set to 32. There is no way to change the defaults, but a new Runtime Version 2.5 is said to fix the problem (i.e. make the parameters configurable). The default TTL is 32 for both TCP and UDP.

Article first time published on

What is the purpose of the TTL field in the IP header?

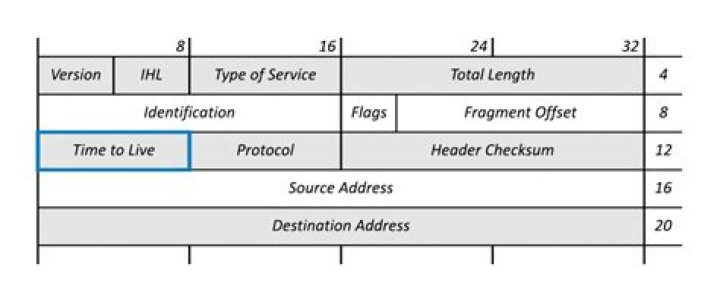

The TTL field, Time To Live, of an IP packet represents the maximum number of IP routers that the packet can go through before being discarded.

Is higher TTL better?

A higher TTL reduces the perceived latency of a site and decreases the dependency on the authoritative name servers. The lower the TTL, the sooner the cached record expires. This allows queries for the records to occur more frequently.

Which field in an IPv4 packet is used by the router to determine if a packet has expired and should be dropped?

The router uses a hop limit field to determine if the packet has expired, and does not have a TTL field.

When a router can't determine a path to a message's destination where does it send the message?

When a router can’t determine a path to a message’s destination, where does it send the message? Answer: C. Gateway of last resort 8.

Why IP protocol is unreliable?

IP is connectionless because it treats each packet of information independently. It is unreliable because it does not guarantee delivery, meaning, it does not require acknowledgments from the sending host, the receiving host, or intermediate hosts. IP provides the interface to the network interface level protocols.

What is TTL 126?

The TTL value is an 8-bit field, which means it can contain a value between 0 and 255. … For example, if NNM sniffed a server sending a packet with a TTL of 126, it detects that 128 is two hops away. NNM does not know the IP address of the in-between routers.

What is TTL 255 in ping?

The TTL values 255, 254, and 253 indicate that the lifetime of a BFD packet is 255, 254, and 253 respectively. … By default, the lifetime of a static single-hop or dynamic single-hop BFD packet is 255, the lifetime of a static multi-hop BFD packet is 254, and the lifetime of a dynamic multi-hop BFD packet is 253.

Why does the TTL change?

Because of changing network conditions a router may not always pick the same route each time for your packets. When this happens, your packet may end up traversing a path that involves a different number of routers. This is why you see a different TTL. This is perfectly normal.

What does TTL mean in electronics?

Transistor-transistor logic (TTL) is a digital logic design in which bipolar transistor s act on direct-current pulses. Many TTL logic gate s are typically fabricated onto a single integrated circuit (IC). TTL ICs usually have four-digit numbers beginning with 74 or 54.

Is TTL invariable in IP header?

in the ip header , the time to live (TTL)filed is invariable.

How do I set TTL value?

1. Sign into the Account Center.
2. Click the domain you want to edit.
3. Under DNS & ZONE FILES, click on Edit DNS Zone File.
4. Scroll down to the Additional Zone Actions tool, click on the Lower TTL button. …
5. Click the Raise TTL button to return the value back to the default 12 hours interval.

What does OSPF use?

Open Shortest Path First (OSPF) is a routing protocol for Internet Protocol (IP) networks. It uses a link state routing (LSR) algorithm and falls into the group of interior gateway protocols (IGPs), operating within a single autonomous system (AS).

What is the function of the OSPF LSR packet?

The Link State Request (LSR) packet is an OSPF packet Type 3. After DBD packets exchange process, the router may find it does not have an up-to-date database. The LSR packet is used to request pieces of neighbor database that is more up-to-date.

What is OSPF packet?

OSPF sends packets to neighbors to establish and maintain adjacencies, send and receive requests, ensure reliable delivery of Link-state advertisements (LSAs) between neighbors, and to describe link-state databases. Link-state databases are generated from all the LSAs that an area router sends and receives.

When a time exceeded message must be sent by the router to the original source?

Time exceeded When the packet traverses through the router, then each router decreases the value of TTL by one. Whenever a router decreases a datagram with a time-to-live value to zero, then the router discards a datagram and sends the time exceeded message to the original source.

How does ICMP provides error reporting in network layer?

ICMP sends query and error reporting messages. … The error-reporting messages report problems that a router or a host (destination) may encounter when it processes an IP packet. The query messages, which occur in pairs, help a host or a network manager get specific information from a router or another host.

How can we determine if an ipv4 packet is carrying an icmpv4 packet?

1. #include <stdbool.h>
2. #include <netinet/in.h>
3. /* … */
4. bool is_icmp = (packet[9] == IPPROTO_ICMP);

What is TTL 128 in networking?

By default, in Windows and many other OS’s, the TTL will be 128 — that means that after a packet passes through 128 routers, if it hasn’t reached it’s final destination yet, the packet will expire and will be removed from the network.

What is TTL measured in?

TTL is set via HTTP headers, such as the Cache-Control header, and is measured in seconds. For example, the value “Cache-Control: max-age=30” is a directive for a given resource to be refreshed every 30 seconds before time to live is exceeded.

How do I change TTL to ping?

1. Open a command prompt.
2. Type ping 8.8. 8.8 and press Enter. …
3. Observe the results. The ping request should be successful.
4. Type ping -i 1 8.8. 8.8 and press Enter.
5. Observe the results. …
6. Type ping -i 2 8.8. …
7. Observe the results. …
8. Close the command prompt to complete this activity.

What happens when TTL expires?

The TTL value is set on a packet in a way to reduce it by one when the packet passes through each hop in the network. … So, what happens when TTL expires? The packet will not travel to the next hop. This procedure helps to avoid the infinite looping of packets.
