What causes changes in thrust angle? In the case of a vehicle with a solid rear axle, a thrust angle is most likely to have been caused by an impact or collision. The rear axle and associated componentry were jarred by an impact that created the angle.

What is the thrust angle?

The thrust angle is an imaginary line that is drawn perpendicular from the centerline of the rear axle, down the centerline of the vehicle. The purpose of the thrust angle is to determine if the rear axle is lined up with the center of the vehicle, as well as the front axle.

What does rear thrust angle mean?

The thrust angle is an imaginary line drawn perpendicular to the rear axle’s centerline. It compares the direction that the rear axle is aimed with the centerline of the vehicle. It also confirms if the rear axle is parallel to its front axle and that the wheelbase on both sides of the vehicle is the same.

What is negative caster angle?

Negative caster positions the lower ball joint behind (rearward of) the upper ball joint or strut mount. Unlike in a positive caster arrangement, the wheel and tire contact patch hit the ground behind the steering system and suspension components. Negative caster angle isn’t a setting used by modern road cars.

What happens if rear thrust angle is misaligned?

A misaligned thrust angle may also cause diagonal wear on the rear tires and increase the chance the vehicle pulls or drifts to one direction. To eliminate the thrust angle, realigning the rear axle or rear toe is necessary. If bent or damaged parts are responsible, these must be replaced.

What is positive scrub radius?

The scrub radius is the distance at the road surface between the tire center line and the SAI line extended downward through the steering axis. The line through the steering axis creates a pivot point around which the tire turns. … When the intersection is below the surface of the road, this is positive scrub radius.

What is positive camber?

It is used in the design of steering and suspension. If the top of the wheel is farther out than the bottom (that is, away from the axle), it is called positive camber; if the bottom of the wheel is farther out than the top, it is called negative camber.

What is better positive or negative caster?

Performance Benefits of Positive Caster You get better handling when cornering, better stability at high speeds, and better straight-line tracking. The better traction while cornering is similar to a vehicle with negative camber, as it keeps more tread on the ground despite the sharp angles.

What is positive caster?

Caster angle settings allow manufacturers to balance steering effort, high speed stability, and front end cornering effectiveness. Positive Caster – If the line slopes towards the rear of the vehicle, then you have positive caster. The down side to positive caster is if the vehicle does not have power steering.

What is the difference between positive caster and negative caster?

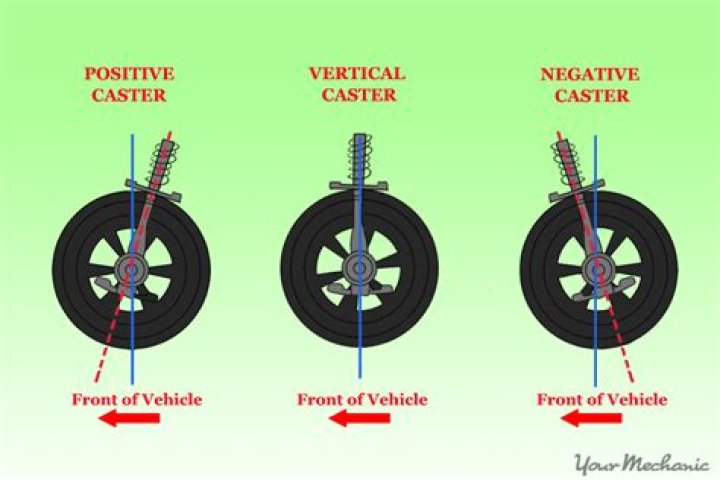

Positive caster is when the vehicle’s wheel (and lower pivot point) is in front of the upper pivot point. Negative caster has a lower pivot point behind the upper pivot point, and zero caster means the steering axis is perpendicular to the ground.

Article first time published on

What is chamber angle?

The chamber angle is the outermost part of the anterior chamber, where the anterior or scleral wall converges with the posterior wall of the iris in a curved segment made up of the inner surface of the ciliary body. Despite its simple definition, the anatomy and histology of this area reveal its great complexity.

What is meant by designating thrust angle as being positive or negative?

A positive thrust angle will try to steer the vehicle to the left, while a negative thrust angle will try to steer the vehicle to the right. This will cause the driver to pull the steering wheel right or left to compensate.

How do you check rear axle alignment?

Measure from one side of the frame at the front and rear using the half measurements and place a mark on the floor at each end of the car at centerline. (I use a piece of 2- or 3-inch-wide masking tape placed on the floor to mark on.) These marks now represent the centerline of the car.

What causes bad thrust angle?

An incorrect thrust angle is often caused by an out-of-position axle or incorrect toe settings. So in addition to the handling quirks that are the result of incorrect toe settings, thrust angles can also cause the vehicle to handle differently when turning one direction vs. the other.

What does thrust angle affect?

The thrust angle can determine the straight-ahead position of the front wheels. So ignoring this angle can undermine even the most accurately aligned front suspension. It can result in a crooked steering wheel as the front wheels steer to align themselves with the desired direction of the vehicle.

What type of alignment is best?

A thrust alignment is the most accurate alignment for vehicles without adjustable rear suspension. Only the front wheels are adjusted. Here’s how: There’s no guarantee both rear wheels are pointed straight ahead as they should be.

What is the most critical tire wearing angle?

Toe is the most critical tire wearing angle. Tires that “toe-in” point toward one another. Tires that “toe-out” point away from each other. This refers to the tilt of the wheels toward or away from one another when viewed from the front.

What should be adjusted to correct thrust angle?

To measure the thrust angle on a vehicle you have to perform a four-wheel alignment. Even if the rear axle is non-adjustable, you need to take rear axle readings to properly align the front suspension. A thrust condition exists when the rear individual toe is not equal.

How much does a thrust alignment cost?

A thrust-angle alignment can cost between $49 and $79, and a four-wheel alignment from $89 up. It takes a lot to knock your car out of alignment; your average run-of-the-mill pothole won’t do it.

What is toe and camber?

Camber is the vertical inclination of the tire. … With positive camber, the top of the tires points outwards of the car. With negative camber, the top of the tires points inwards. Toe. Toe is the angle the tires are rotated around their vertical axis, looking at them from above the car.

What is castor and camber?

Caster is viewed from the side of the vehicle. It’s the forward or rearward tilt of the steering axis. Positive caster provides steering wheel returnability and greater stability. Negative caster is rare and typically used on heavy-duty applications. Camber affects the vehicle’s stability.

What is the best camber angle?

For a normal car you typically want to maintain a slight amount of negative camber (0.5 – 1°) to have a good balance of cornering grip, braking grip, and tire wear. On most vehicles it’s common to have slightly more negative camber (0.8 – 1.3°) in the rear to reduce the chances of oversteer (loss of grip in rear).

Is positive scrub radius good?

When you brake and your effort is greater on one side of the car than the other, a positive scrub radius will make the car turn to the side where effort is greater. You’ll find that a positive scrub radius is useful with certain racing setups. It’s also a standard setting with many double-wishbone suspension designs.

What is SAI angle in alignment?

Return. Steering Axis Inclination (SAI) SAI is the measurement in degrees of the steering pivot line when viewed from the front of the vehicle. This angle, when added to the camber to form the included angle (see below) causes the vehicle to lift slightly when you turn the wheel away from a straight ahead position.

What is kingpin angle?

Kingpin angle is a measure of the angle of the suspension steer axis relative to vertical in front view. … Kingpin angle is measured in Degrees and is positive when the top of the steering axis points towards the centre of the car.

What does Ackerman angle do?

Ackerman is the difference in turn radius between the front tires. On oval track cars it can be desirable to create a situation where the left front tire turns faster than the right front tire. The Ackerman effect can help the car turn better through the center of the turn.

What is toe in a car?

In automotive engineering, toe, also known as tracking, is the symmetric angle that each wheel makes with the longitudinal axis of the vehicle, as a function of static geometry, and kinematic and compliant effects. … Positive toe, or toe in, is the front of the wheel pointing towards the centreline of the vehicle.

What is neutral caster?

Neutral caster is when the upright mounting points are on the same vertical plane as each other as well as being on the same vertical plane as the centre line of the hub and wheel.

Will caster cause a pull?

So: Camber and caster will cause your vehicle to pull if they’re uneven, but will cause little tire wear, while toe in won’t cause your vehicle to pull, but can cause extremely fast tire wear. This is why your vehicle can pull and not wear out tires, or it can drive perfectly straight and destroy them in a hurry!

Is it better to have toe in or toe out?

Generally the rule of thumb is that more toe-in increases understeer and more toe-out increases oversteer. However, with modern cars, especially race cars with independent front and rear suspensions, there is another effect on handling.

What will too much caster do?

The main problem with too much caster, is that you reduce your contact patch in turns, so you are more likely to slide out in high speed turns or on slick surfaces, It also increases wear on the inside and outside edges of the tires.
