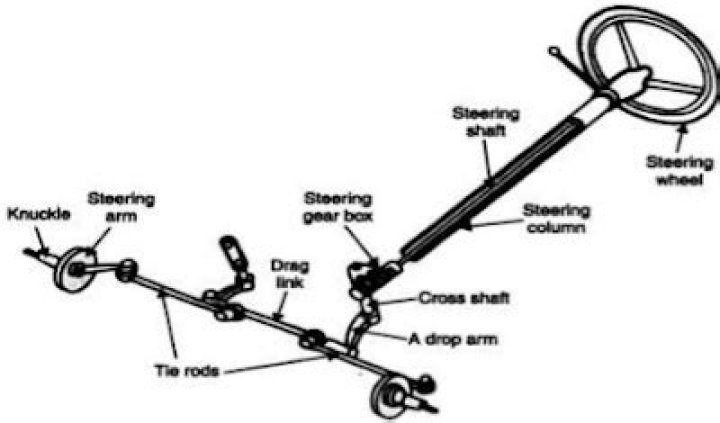

The drag link, sometimes also called the center link, connects the pitman arm to the steering arm. In some vehicles, it connects to the tie rod assembly. The drag link is the element that keeps both of your two front steering wheels in line.

What is the steering arm connected to?

The steering column connects to the steering box input shaft in the same way it connected to the steering rack. The pitman arm bolts to the end of the steering box output shaft. When the steering wheel turns, the pitman arm will move in an arc to a fraction of movement of the steering wheel.

What component connects the steering linkage to the steering gear?

A steering box is a small gearbox connected between the driver’s steering wheel and the linkage of the steering system.

What does the tie rod connect to the center link?

A tie rod consists of an inner and outer end. The tie rod transmits force from the steering center link or rack gear to the steering knuckle. This will cause the wheel to turn. The outer tie rod end connects with an adjusting sleeve, which allows the length of the tie rod to be adjustable.

What connects to the pitman arm?

Pitman Arm: The Pitman arm connects the steering box, attached to the bottom of the steering shaft, and the center/drag link. The Pitman arm converts the radial motion of the steering column or shaft into the linear motion that turns the automobile’s wheels.

What connects to tie rods?

Tie rods connect the spindle, on which your front wheel is mounted on one end, to the steering gear mechanism on the other end. … An outer tie rod end is connected to each front wheel spindle, and an inner tie rod end is connected to the steering rack or steering gear box assembly.

What does a drag link connect to?

“The drag link connects the pitman arm to the steering arm, or in some applications it connects to the tie rod assembly. Unlike a center link, the drag link does not connect to an idler arm, and has no inner tie rod ends attached to it.

What is a truck drag link?

Function: A drag link connects the pitman arm on the steering gear with the steering arm on the spindle. Rotation of the steering gear input shaft causes the pitman arm to rotate back and forth. As this motion occurs, the drag link pushes or pulls the steering arm causing the wheel to pivot on its king pin.

What transfers movement from the steering box to the center link?

The pitman arm attaches to the center link and is moved by turning the steering wheel. … The inner tie rods are mounted to the center link and transfer steering motion to the steering arms and outer tie rods.

What connects to steering rack?

A rod, called a tie rod, connects to each end of the rack. The pinion gear is attached to the steering shaft. … The rack-and-pinion gearset does two things: It converts the rotational motion of the steering wheel into the linear motion needed to turn the wheels.

Article first time published on

What component supports the wheel and attaches to the control arms?

On non-strut equipped vehicles, the spindle is attached to both the upper and lower control arms with a ball joint. The ball joint is a steel ball enclosed in a steel socket that allows the spindle and front wheel to rotate left and right and allow the wheels to move up and down following the roads surface.

What connects the steering column to the wheels?

The steering column and rack are joined with a gear wheel called a pinion. Most vehicle steering systems also include some kind of power-assist to make it easier for the driver to turn the steering wheel, i.e., power steering (anyone who has driven a pre-1970s vehicle knows how helpful this is!).

What do tie rods do?

Tie rods help your vehicle in terms of steering. Tie rods have two parts, an inner and outer end. The tie rod works with the Ball joint in converting force from the steering center link to the steering “knuckle.” Simply put, the tie rods help with steering smoothly and the front end alignment of your vehicle.

What part of a rack-and-pinion assembly is the steering shaft attached to?

What is a Rack and Pinion? A rack and pinion assembly helps transfer rotational force from the steering wheel to the front wheels. A steering shaft is attached to the steering column. The steering shaft has a pinion attached which attaches to a linear gear with teeth called the rack.

What is steering wheel rack?

The rack and pinion, also known as the steering rack, is an assembly in your vehicle that allows your wheels to rotate from side to side when you turn your steering wheel. … Connected to both ends of the rack is a tie rod that connects the steering arm on the spindle.

Is a drag link the same as a center link?

The drag link, sometimes also called the center link, connects the pitman arm to the steering arm. In some vehicles, it connects to the tie rod assembly. The drag link is the element that keeps both of your two front steering wheels in line.

Is tie rod and link rod same?

Drag Links (DLs) connect the steering gear and the pitman arm at one vehicle wheel. Tie Rods (TRs) connect the steering knuckles at the left and at the right wheel to transfer the steering forces. The length of links and rods can be adjusted to realize an optimized wheel alignment. …

How do I know if my center link is bad?

Common signs include poor handling, car wandering or pulling to the left or right, vibrations in the steering wheel, and uneven tire wear.

What is the pivoting support for the steering linkage?

On an automobile or truck with a conventional parallelogram steering linkage, the idler arm or idler arm assembly is a pivoting support for the steering linkage. The idler arm supports the end of the center link on the passenger’s side of the vehicle.

What is a rack end?

Rack ends also called as inner tie rods or axial joints is a part of rack and pinion steering gear system, which converts circular motion of the steering wheel to straight line motion at the wheels The rack ends are the connections between steering rack and the outer tie rod ends which is connected to the steering …

Where is the inner tie rod located?

A modern car with a rack and pinion steering system has four tie rods, with an inner and outer tie rod on each side. Each of the inner tie rods connects the steering rack to an outer tie rod. The inner tie rods are located inside the steering rack’s rubber boots.

What component in gear box attaches to pitman arm?

The pitman arm attaches to the steering gear shaft and acts as a lever, converting torque from the steering gear to mechanical force for movement of the steering linkage.

What is a pitman arm and drag link?

A Pitman arm is a shaft that translates rotary or angular movement into linear movement. … It transmits the motion it receives from the steering box into the drag (or center) link, causing it to move left or right to turn the wheels in the appropriate direction.

What does an adjustable drag link do?

Adjustable drag links provide the ability to fine tune steering linkage systems for precise control. The links function much like a turnbuckle. All ball sockets are either staked or clamped. The ball sockets are of the same dual bearing, low end movement design as Dayton Parts’ tie rod ends.

Is a drag link a tie rod?

Drag Links (DLs) connect the steering gear and the pitman arm at one vehicle wheel. Tie Rods (TRs) connect the steering knuckles at the left and at the right wheel to transfer the steering forces.

Is the rack and pinion connected to the power steering?

When a rack and pinion system is connected to a power steering system, the design changes slightly. A cylinder with a piston in the middle is placed in the rack. … When pressure is placed on the fluid on one side of the piston, it forces the piston to move, which turns the rack and assists with steering.

Is the steering wheel connected to the axle?

Axles can be found connected to the wheels of your car and responsible for bearing the entire weight of your vehicle. They also help to drive your car and in most vehicles are an important part of the steering system. Most Axles today are split axle, meaning the wheel on each side is connected to a separate shaft.

What connects to the front strut?

Each steering knuckle connects to the bottom of a strut assembly at one end and a ball joint at the other end. On most vehicles, the outer tie rods attach to the sides of the knuckles, as well. The steering knuckles also provide a mounting location for the wheel hubs, which support the wheels and tires.

What component allows the control arms to pivot at the body attachment points?

The shaft of the suspension system n the outer end of the front control arm. These swivels are typically constructed with the ball and socket to allow pivoting. The angle the steering arms makes with the steering axis, projected toward the center of the rear axle.

Are struts and control arms the same?

Struts actually replace the ball joint and upper control arm components that are present in traditional suspension systems, with the exception of most luxury models, which have struts and retain their ball joints and control arms.

Where is steering wheel mounted?

Steering wheels for passenger automobiles are generally circular and are mounted to the steering column by a hub connected to the outer ring of the steering wheel by one or more spokes (single spoke wheels being a rather rare exception).
