Gabion do not require skilled labor to assemble and can be filled with local rock as long as the rock is hard, heavy, durable and free draining.

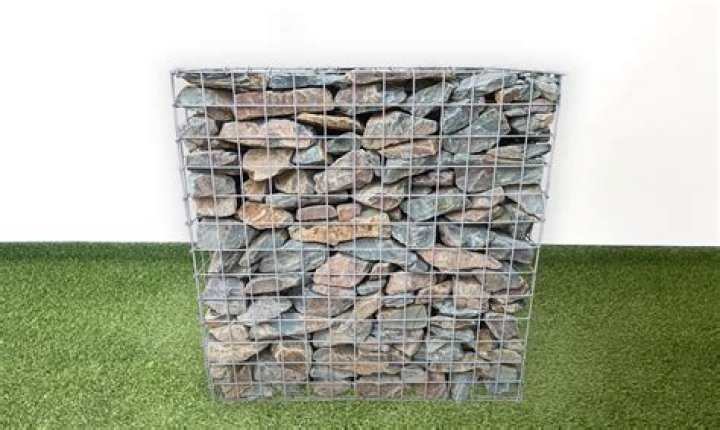

What can you fill gabion baskets with?

• Old bricks and blocks. These are a great option for filling gabion baskets very cheaply. …
• Old paving stones. …
• Outline with expensive stone then fill with cheaper ones. …
• Ask your neighbours! …
• Wine bottles.

How do you fill a gabion wall?

For gabions placed on the ground, you can simply wheelbarrow your rock filling directly into the top of the basket then attach the lid mesh. You do not require any loaders or bobcat’s to scoop the rock and fill the basket from an unmanageable height.

Can I fill a gabion with soil?

A Gabion basket is one of the most straightforward things that someone can make for their garden. It is merely a large mesh cage that is filled with earth. You can fill them with sand and soil, rocks, or concrete.

How do you stop gabion baskets from bulging?

When filling the baskets it is necessary to insert a brace in the middle of the basket. This is important to stop the face bulging when filling. The higher the wall the more important this is as the more force exerted on the face.

Are gabion walls cheap?

Gabion walls are cheap, long-lasting, and easy to install! While there are a few instances where a Gabion wall might need a foundation, most Gabion walls don’t need any sort of foundation. All you need to do is build the baskets and fill them with your stones or other filler materials.

What are wire baskets filled with rocks called?

What is a gabion? A modular containment system (called a gabion basket or cage) made from wire mesh and filled with rock, stone or other non-degradable materials.

What kind of rock is used for gabion baskets?

Angular rock is the best gabion fill as it provides a good interlock and therefore less deformation of the face occurs. When using rounded river rock as gabion fill, it is recommended that you use the heavier 3/16th gabion baskets, which are less likely to deform under load.

Does a gabion wall need a foundation?

Jurgensen says there’s no need to create a foundation for gabion walls as they end up weighing so much when you fill them with rock. … Unlike a traditional concrete wall, gabion walls are flexible and are able to move with the earth.

Can you use gabions for retaining walls?

Gabion retaining walls are easy to design and build and customize to fit your unique design for your space. Comparatively speaking, they tend to run a lot cheaper than other standard walls or fences and can even be DIY’d with ease—something you could hardly do with a traditional brick and mortar wall.

Article first time published on

Can you stack gabion baskets?

It is often thought that you can just stack narrow gabions and because they are filled with heavy stone, they will be structurally sound – this is not the case. … If, however, you require the wall to be narrower than 750mm you need to install internal wind posts inside each gabion cell.

How thick should a gabion wall be?

A wall can be constructed of a single thickness of gabion baskets piled on top of each other. This would mean the thinnest gabion wall would be 12 inches thick. Gabion wall systems commonly use larger baskets on the bottom of the wall with thinner baskets at the top.

Can you bend gabions?

Depending on the thickness and style of the curved gabion retaining wall you can achieve the curves by either kicking in the front or back of the gabion at the seams to create a curve at the joints or seams of the gabions.

How much rock does it take to fill a gabion basket?

Typical 3″ x 3″ mesh requires a minimum of 4″ rocks and limit the largest rock at 8″. Use angular rocks to fit into corners and smaller rocks or used bricks and concrete materials may be inserted in the center of the structure as they will not to be seen when finished.

What are the disadvantages of gabions?

Disadvantages/Problems Gabions are more expensive than either vegetated slopes or riprap. The wire baskets used for gabions may be subject to heavy wear and tear due to wire abrasion by bedload movement in streams with high velocity flow. Difficult to install, requiring large equipment.

Can you build a gabion wall with chicken wire?

Buy prefabricated gabion wire baskets or buy wire mesh such as chicken wire or construction wire mesh. Make sure the wire mesh you buy is galvanized or otherwise coated to resist corrosion. Place the wire baskets on the ground where you want to build the wall.

Can you use chicken wire for gabion?

The most common reason is the basket is made of low gauge steel or aluminium and the rock filling has caused the basket change shape. This is common with gabions made from low quality steel such as chicken wire. … This will allow you to fill the basket and keep as much of the basket filled with rock and minimise gaps.

What gauge wire is used for gabions?

Gabion baskets shall be a minimum of 11 gauge (0.118 in – 3.00 mm) galvanized steel wire, fabricated into hexagonal triple-twist mesh openings no larger than 3 ¼” x 4 ½”. Selvedge wire running through all edges shall be a minimum of 9 gauge (0.148 in – 3.76 mm) galvanized steel wire.

Can you cut gabion baskets?

Gabions can be cut on site to the nearest full square, to achieve your required dimensions. Or we can cut them for you for an additional charge.

What is a Gideon basket?

Gabion baskets are used in many situations, including the stabilization of earth movement and erosion, river control, reservoirs, canal refurbishment, landscaping and retaining walls. They can be manufactured in welded mesh or woven wire. … We also sell gabion baskets to the public for bespoke or small projects.

Do gabion baskets rust?

Galvanized gabion baskets will eventually rust, yes. The zinc-iron coating that prevents rusting doesn’t last forever.

What are riprap and gabions?

Riprap is a layer of stones on an embankment slope used to prevent erosion and to protect the structure from the effects of stream flow. … Generally, the top of the riprap is located 1′-0″ above design highwater. GABIONS are prefabricated wire enclosed structures laced together and filled with stones.

What size is gabion stone?

Standard Size Gabions Traditionally twisted mesh gabions have been: 3′, 4.5′, 6′, 9′, and 12′ in length; 3′ and 4.5′ in width; and 1′,1.5′, and 3′ in height. The below chart shows the standard gabion sizes for both baskets and reno mattresses.

What is the cheapest material for a retaining wall?

The cheapest types of retaining walls are wood and concrete blocks, followed by concrete and stones or bricks. Each material has benefits and drawbacks, including strength, longevity, and attractiveness. For those who are planning on building their own retaining wall, it is vital to plan and research.

What stone is best for gabion baskets?

• Stone Type : Granite.
• Colour : Silver Grey.
• Colour disclaimer : Stone is a natural recurring mineral so the colour of the stones will vary from the images on our website.
• Shape of stone : Angular and interlocking to reduce pressure on gabion walls.
• Stone Size : Range between 80mm – 200mm.

What size rock goes in gabion baskets?

Gabion fill shall be hard and durable and non frost susceptible (rock or stone type) having a minimum dimension not less than 80% of the mesh opening and a maximum dimension of 8 inches. Angular rock is the best gabion fill as it provides a good interlock and therefore less deformation of the face occurs.

How much does a gabion basket weigh?

Weight10.20 kgSize1 x 0.5 x 0.5m, 1 x 1 x 0.5m, 1 x 1 x 1m, 1.5 x 1 x 1m, 2 x 1 x 0.5m, 2 x 1 x 1m

Do gabions need drainage?

Unlike other materials, gabion baskets are not vulnerable to drainage issues as they are porous, so water cannot build up and cause structural failure to the retaining wall.

How long do gabion cages last?

Life SpanC2: Low (Low level of pollution, mostly rural areas)100 years +C3: Medium (Urban and industrial atmospheres, moderate sulphur dioxide pollution, coastal areas with with low salinity)50 years +C4: High (Industrial areas and coastal areas with moderate salinity)30 years +

How do you lace gabion baskets?

1. Cut a length of lacing wire approximately 1-1/2 times the distance to be laced. …
2. Secure the wire terminal at the corner by looping and twisting.
3. Start lacing with single and double loops at approximately 100 mm.
4. Securely fasten the other lacing wire terminal.

What is gabion retaining wall?

A gabion wall is a retaining wall made of stacked stone-filled gabions tied together with wire. Gabion walls are usually battered (angled back towards the slope), or stepped back with the slope, rather than stacked vertically. … Galvanized steel wire is most common, but PVC-coated and stainless steel wire are also used.
