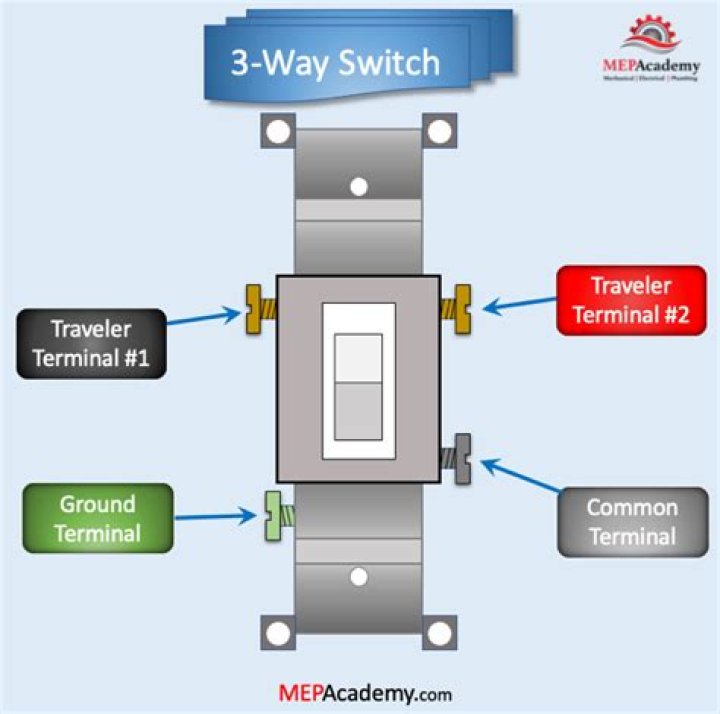

A 3-way switch is larger than a single pole switch and has three screw terminals for wiring connections, plus a ground. Two of these take traveler wires that go from one switch to the other. For the third terminal, one switch is connected to the hot supply wire while the other switch is joined to the light.

Why is a 4 way switch called a 4 way switch?

Each set of terminals will connect to the traveler wires from each of the three-way switches. When connected properly, you’ll be able to turn lights on from either of the three-way switches or the four-way switch. … This is why, for lighting control in three or more locations, four-way switches are the answer.

What is the difference between a 2 way and a 3-way switch?

In a normal switch, the two terminals are either connected (as shown) or disconnected. When they are connected, the switch is “on.” In a three-way switch, the top terminal connects to one or the other of the bottom two terminals.

Why is it called 4 way?

Your particular switch is most probably a Double Pole Double Throw (DPDT) switch which has been internally connected to 4 terminals so that it can transpose (or swap) the pair of wires connected to it, each time it is switched. American electricians often call this a “four-way switch”.

When should you use a 3 way switch?

Three-way switches are commonly used to control a light fixture from two different locations. For example, a long hallway or stairway might use a pair of three-way switches at each end so that lights can be turned on when approaching one end of the hall or stairway, then shut off from the other end.

Is there a 5 way switch?

The 5-way Strat switch is the most common switch you’ll find in Stratocaster guitars. … Finally, in 1977 Fender made the 5-way Strat switch a standard feature in their guitars. Both 3-way and 5-way switches are wired the same. The only difference is the 5-way has a few more indents (Fig 4).

Are all 3 Way switches the same?

Remember that 3-way switches always appear in pairs. The two switches can come before or after the light fixture in the circuit, or you can have one switch on each side, with the fixture in the middle. The most important wire to get right is the one connected to each switch’s common screw terminal.

Can I use a 3 way switch as a 4-way?

Three way switches usually work in pairs with two “traveler” conductors between them. Four way switches are made for the specific purpose of adding additional switches to the pair of 3 way switches. You can put as many of them between the two 3 way switches as you want, and they all work together in perfect harmony.

Can you use a 3 way switch as a single pole?

To convert a 3-way switch to single pole, one of the traveler wires is removed from the switch. In order for a 3-way switch to function as a single pole, the wires need to be connected to the common and one of the traveler terminals. … 3-way switches can be converted to single pole in several configurations.

Does a 4 way dimmer switch exist?

You can have several 4-way switches in a circuit, so long as you have two 3-ways at either end. I think you can always substitute one 3-way dimmer for one of the 3-way regular switches. When wired right, every switch can turn on or off the lights, but usually only at the level the dimmer is set to.

Article first time published on

What is a 4 way in drugs?

What is 4-Way? Phenylephrine is a decongestant that shrinks blood vessels in the nasal passages. Dilated blood vessels can cause nasal congestion (stuffy nose). 4-Way is used to treat nasal congestion and sinus pressure caused by allergies, the common cold, or the flu.

What is the black screw on a three-way switch?

The black screw has the black (common) wire that runs up to the light through the yellow cable. The two grounds are connected together and then to the green ground screw on the switch. To summarize, the black screw gets either the wire from the electrical panel or the wire going to the light.

What is the red wire on a 3-way switch?

Red wire: The second hot/traveler wire is the red wire that serves the same purpose as the black wire between the two switch boxes. Depending on toggle switch configuration, either the red wire or the black wire will be hot if the light is on, but not both.

Will a 3-way switch work as a 2 way?

Yes, you can use 3-way (UK: 2-way) as 2-way (UK: 1-way) switches. It will work fine. Simply make sure the screws are different colors; you want the common terminal and one of the messengers; not both messengers.

Do you need a special switch for a 3 way switch?

The key ingredient is a special type of switch called a “three-way” switch. You’ll need two of them, one to replace the existing switch and another for the new switch location. With these, you’ll have the convenience of turning a light on and off from two spots.

Why is there a red wire in my light fixture?

The exact purpose of a red wire for a light fixture can vary. Except in rare cases, it is a hot wire or a switched hot wire. … If turning the switch off turns the wire off, the red wire delivers power from the light switch. Note: Never touch wires or their connection points while the circuit is energized.

What is the difference between a 3 way switch and a regular switch?

The most common household switch, a single-pole, has two terminals and simply turns power on or off. A three-way switch has three terminals; a four-way has four. … You can usually replace any single-pole switch with a dimmer.

Will a 3-way switch work if wired wrong?

Finding the common wire: When wiring a 3-way light switch, you’ll need to find the common wire and connect it to the common screw. If you don’t correctly connect this wire, then your lights won’t work from more than one switch.

Why does my 3-way switch have 4 wires?

A 3-way switch has 4 wires because there is a 2nd switch controlling the voltage. Two wires are incoming voltage, and the other 2 wires are out going voltage to the 2nd switch.

When did fender add the 5 way switch?

In 1977, Fender introduced the 5 Way Switch with detents in place at the second and fourth position and guitarists no longer needed cardboard wedges. Other than these detents, there is no difference between the two switches. Both switches look like Fig 1.

Are all 5 way switches the same?

There are two common types of 5-way selector switches in the guitar world – the Fender type and the “import” type. Both types are functionally identical but differ in physical layout. It’s easy to see which type you’re dealing with.

How does a 3 way blade switch work?

The 3-Way Switch, like the 5-Way Switch, is comprised of 2 sides, with 4 terminals on each side. The only difference here is the size of the blade that wipes the terminals. The 3 Way Blade only connects one terminal at a time, where the 5-Way blade switch can connect two terminals at a time. This should look familiar!

Can I get power from a 3 way switch?

The second 3 way switch is the last switch in the series of switches, this 3 way switch sends the power to the light or lights. If the single pole switch is installed next to the 3 way switch that receives the power from the electrical panel/circuit breaker, then installation of the single pole switch totally possible.

Can you eliminate a 3 way switch?

Remove the Three-Way Switch From the Circuit Start with the three-way switch that will be removed. Remove the switch cover plate screws with the slot screw driver, and then remove the two switch screws. Carefully pull out the switch, making sure not to touch or short any of the three wires.

Can you use 2 wire for a 3 way switch?

Two three-way switches (s.p.d.t.), four diodes, and two wires also enable three-way switching action. … If you only have a two-wire cable to work with, you can still hook up a three-way switching circuit for your garage, or hallway, to enable you to turn a light on and off from either of two different locations.

What is a DPDT?

A Double Pole Double Throw (DPDT) switch consists of six terminals, two of which are independent input terminals. Each of the poles can complete two different circuits. In other words, each input terminal connects with two output terminals, and all four output terminals are separate.

How many switches do you need to construct a three-way switch circuit?

Three-way switches allow you to operate a light, or device such as a ceiling fan, from two different locations. That’s why a 3-way circuit always involves two 3-way switches.

Can you have 2 dimmers on a 3-way switch?

When using a 3-way dimmer switch, you should only have one dimmer on the circuit. The other switches (you can have more than one) must be on-off switches only. In this setup, the light level is controlled from a single location, whichever light switch you replace with the dimmer switch.

What is the red wire on a dimmer switch?

Red is the switched lead (or a traveler in a 3-way installation), and is attached to the switched hot going to the light. Red with white is a traveler, used for 3-way installations. In your situation, you’ll just cap this one off. Green is ground, and is attached to the grounding conductor.

Does Caseta work with 4-way switch?

The Lutron Caseta can be put on a 4-way circuit (same as a 4-way switch) by using the directions above. However, you will need to use the Pico remote to control all the circuits and dimmers. … Small and compact makes it blend in with your walls and regular light switches. Indicator LED light to show you it’s working.

Do you need 2/3-way switches?

A 3-way wall switch controls a common light or set of lights from two separate switch locations. Two, 3-way switches are required in any 3-way application.
