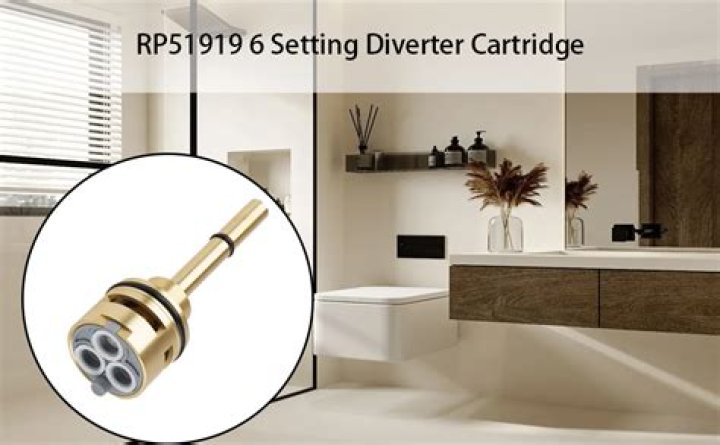

The 6 setting allow you to control each spray individually, or any combination of 2 spray groups at the same time. The body sprays will be plumbed on a pressure loop and function together as a unit. The tub spout does not connect to the diverter in any way.

What is a 3 setting shower diverter?

The 3 setting diverter allows two shower components and the 6 setting diverter allows three shower components. The 3 settings would allow two individual settings and one shared setting for the two components.

How does a 3 function shower diverter work?

Three-Valve Diverter: This type of diverter usually consists of a tap or lever located between the hot and cold taps of a two-tap faucet. To activate the diverter, you turn it 180 degrees, and then simply turn it back when you’re done.

What is a 4 way shower diverter?

This Thermostatic Valve has a four-way diverter that gives you the perfect setup to switch between an overhead shower, hand shower, tub spout, or other enhancements you have installed in your bathroom. … The valve included with this system can be arranged to run two spray functions simultaneously.

Why are shower trim kits so expensive?

Both trim kits are expensive. They usually are when you get into multiple shower heads, wall bars, and valve controls. … Other companies, you need several valve to do all that. Fewer parts usually means less money.

What does 3 function diverter mean?

The three-way diverter allows you to alternate between any of your selected shower outputs by directing the water from the shower head to each additional accessory, one at a time. The diverter will not adjust the water temperature or turn the water off or on.

How do I choose a shower diverter?

1. Choose the Right Shower Valves. First, you’ll want to consider the shower valves, which is the plumbing part that controls the water flow of the shower tap. …
2. Pick the Configuration and Type. …
3. Check the Water Pressure. …
4. Consider Accessories. …
5. Find Something in Your Budget.

What is a 2 way diverter valve shower?

A two-valve diverter uses a rotating control for hot and cold, and a second control to divert water between the tub and the shower. A three-valve diverter allows individual adjustments of cold and hot water, plus a central knob to divert water between the tub and the shower.

Does it matter what order you turn off the faucets shower diverter?

After you find the right combination of hot and cold water, you turn the third handle clockwise to send the water to the showerhead. When you’re done showering, turn the handle counter-clockwise to redirect the water to the tub.

What are the different types of shower valves?

In a nutshell, there are three different types of shower valves on the market: pressure balancing shower valve, thermostatic shower valve and diverter shower valve.

Article first time published on

What is the difference between a diverter valve and a transfer valve?

The main difference between a diverter and a transfer valve is how they direct the water supply. Diverters switch the flow of water between a tub and shower—either the showerhead or the tub faucet gets the water flow. Transfer valve sends water to multiple outlets at the same time.

How does a 4 way diverter valve work?

The Four Way Diverter Valve was developed for strict requirements of bi-directional meter proving. Slips are retracted from the body prior to the rotation preventing friction and damage. Slips move perpendicular- ly against the body sealing area, the soft seals are than compressed in order to make perfect sealing.

What is single lever diverter?

It allows you to control flow through shower or through bucket faucet. A typical bathroom panel consists of single diverter with a shower on top & bucket faucet at the bottom. Diverter in video, is single lever diverter. … Most of the body gets concealed inside bathroom wall.

What is an integrated diverter?

The diverter helps consolidate custom shower design with streamlined style by eliminating the need for a separate diverter when clients want multiple shower heads or hand showers. Rather, this new flexible integrated diverter features separate controls in one single trim.

Can I use a tub and shower faucet for just a shower?

Can a tub and shower faucet be used just for a shower? … Most tub and shower combination faucets can be installed in a shower without using the tub spout. If you do not wish to use the tub function, you can plug the outlet for the tub spout on the valve and not install the spout on the tub wall.

Can you add a shower hose to a shower head?

A standard fitting attaches to the existing shower arm and replaces the old showerhead with a flexible hose and handheld shower unit that can serve both as a stationary head or a handheld shower. … A tub spout diverter valve is commonly used when you want to add a shower function, and there is no existing showerhead.

What height should a shower valve be?

The average height for a shower valve is 30-50 inches above the floor, though this is a general range. For tub-shower units, the height can be just a few inches about the tub or directly on the tub as part of the faucet.

How do I know what type of shower valve I have?

Assess the faucet and determine how many handles it has. If it has two handles, it is a double-handle faucet, which means that the hot and cold water pipes each connect to separate handles. If it has one handle, it is a single-handle faucet. If the faucet has three handles, it is a rare three-handle model.

Why are shower systems so expensive?

Bathroom faucets are so expensive because of the material they’re made of, the high-priced interior design industry, and the multi-use functionality. Interior products by design are more expensive than other household items.

What are the different types of tub spouts?

• Slip-on spouts. Slip-on spouts slide over 1/2-in. copper pipe and fasten with a setscrew. …
• Screw-on spouts. Screw-on spouts have threads deep inside.
• Screw-on spouts with threads at the back end. Screw-on spouts may have threads at the back end. Most come with a bushing so they fit either 1/2-in. or 3/4-in.

How do you divert water from tub to shower?

Bathtubs that function both as a bathtub and shower tub have a shower diverter valve built into them that allows you to switch the water flow from the tub faucet to the shower head. These valves change the flow of water by blocking it from the tub’s faucet and forcing the water upward and out the shower head.

Do you have to turn off water to change shower diverter?

If you’re only working on the diverter, you don’t need to turn off the water supply to the faucet. While working, place a cloth over the tub drain to prevent any dropped screws from going down the drain. Some showers use a diverter built into the tub spout activated by lifting a button on the spout.

What is a shower mixer diverter?

A shower diverter is a mixer that diverts the flow of water between two water outlets– from the bath spout to the shower head. … The shower diverter allows you to not need two mixers, one for the shower one for the bath – giving you one solution within the mixer.

What is a diverting valve?

A shower diverter, also known as a diverter valve, is a valve that diverts the flow of water from the bathtub faucet to the shower head. Thus, a diverter valve allows you to have a shower and a bathtub in the same space.

Are all shower valves the same size?

Shower valves are not universal and you cannot mix manufacturers when it comes to trim and rough-in valves. Besides that, one manufacturer will have different valve sizes and types which may also not be universal and interchangeable with each other. Luckily, shower sets are always sold as a complete set.

Are shower valve cartridges universal?

Cartridges aren’t interchangeable among different faucets, so if you decide you need a replacement, you need to know its part number so you can order it from your plumbing supplier or online. That number is usually available on the manufacturer’s website in the online version of the owner’s manual for your faucet.

Does a diverter valve increase performance?

RE: does changing the diverter valve make a difference? yes… the stock ones fail prematurely and the aftermarket ones are smoother and sound better. plus you can adjust them to your boost requirements once you get into raising your boost. They dont raise boost.

What is a thermostatic diverter?

A thermostatic shower valve may control only the shower or the tub spout or, if it is a diverter valve, both tub and shower. These maintain water temperature at a safe level, despite fluctuations in water supply lines. The problem that causes temperature fluctuations is basic.

What is a shower body?

A Shower valve body rough in kit is the brass fixture inside the shower wall where the hot and cold water gets mixed to a comfortable warm temperature, perfect for your morning shower. Once the hot and cold water is mixed, the shower rough in valve sends it out to the showerhead or tub spout.

What's a 3 way valve?

A three-way ball valve has three ports or openings that are connected to piping or tubing for gas or fluid flow (media) to pass through. These ports are usually described as one inlet and two outlet ports or one outlet and two inlet ports depending upon the flow direction through the valve.

What does a turbo diverter valve do?

The diverter valve is usually located on the side of the turbocharger, it is a pressure release system which diverts unused pressure back into the system preventing compressor surge. By rerouting the pressure back to the compressor inlet, diverter valve keeps the compressor wheel moving and decreases turbo lag.
