Flow hoods have been used for many years in the HVAC industry as a method of measuring the air flows at registers. … The register flows in residential systems are used to determine if individual rooms are getting the correct airflow, and in estimates of total air handler flow and duct air leakage.

How is fan flow rate measured?

By multiplying air velocity by the cross section area of a duct, you can determine the air volume flowing past a point in the duct per unit of time. Volume flow is usually measured in cubic feet per minute (CFM).

How many CFM do I need for flow hood?

As you can see, at 1.0″ of static pressure, this fan should provide a flow rate of 320 CFM at the Hi setting. This is called the working point, and since we required at least 300 CFM, the fan should be adequate.

How do you calculate cfm of air flow?

CFM = (fpm * area), where fpm is the feet per minute. To find the cubic feet per minute, substitute the FPM value with the area after the area is squared.

How do you measure CFM for a hood?

1. Determine the volume of your kitchen.
2. Multiply that number by 15, the standard number of times a range hood should exchange all the air in your kitchen per hour.
3. Divide that number by 60 to get the minimum cubic feet per minute for your hood.

What instrument measures air flow?

These test instruments are called anemometers or thermoanemometers (if they measure temperature). Many anemometers measure airflow, air volume and temperature, while other parameters may include humidity, dew point, and static/differential pressure.

How do you measure air flow in a room?

1. Use the above Air Changes per Hour Table to identify the required air changes needed for the use of the room. …
2. Calculate the volume of the room (L’xW’xH’).
3. Multiply the volume of the room by the required room air changes.
4. Divide the answer by 60 minutes per Hour to find the required room CFM:

How does a pitot tube measure airflow?

The Pitot tube is inserted into the duct with the tip pointed toward the airflow. The positive port of the manometer is connected to the total pressure port (Pt) and the negative to the static pressure port (Ps). The manometer will then display velocity pressure which can be converted to velocity.

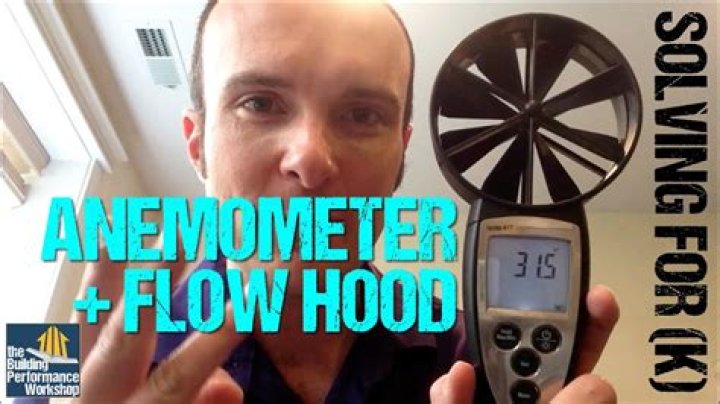

How does an anemometer measure air flow?

Start by making sure the anemometer is on the setting to measure airflow. Then, hold the vane wheel next to the fan or the duct. It is best to hold in the direction of the airflow for the most accurate reading. Move the anemometer around to see airflow readings at different points.

What is a good cfm for a fan?

On high speed: Good CFM ranges from 4,000 to 5,000. Better ranges from 5,000 to 6,000. Best is over 6,000.

Article first time published on

What is airflow rate?

Airflow rate means the actual volume of air passing through the device per unit of time, expressed in cubic-feet-per-minute, to three significant figures.

What CFM do I need?

The rule of thumb is that you need at least 1 CFM per square foot of room area. To determine the square footage of your bathroom, multiply the length times the width. For example, if your bathroom is 6 feet wide and 9 feet long, its square footage is 54. Therefore, it should have a fan rated for at least 54 ​CFM.

How many CFM do I need for 1000 square feet?

Total area of home (square feet)Continuous ventilation rate1,000 square feet50 CFM2,000 square feet100 CFM3,000 square feet150 CFM

What is the appropriate size HEPA filter used in a laminar flow hood?

Many applications call for Laminar Flow Hoods that provide ISO 5/Class 100 HEPA-filtered air which removes organisms and particulates 0.3 micron in size with an efficiency of 99.99%.

Is 400 cfm enough for a range hood?

We recommend purchasing a hood that is more powerful than 400 CFM, but the casual cook might be able to get by with 400. Most 400 CFM hoods are manufactured cheaply at big box stores, so they are not very durable.

Is 450 cfm enough for range hood?

For high-output gas ranges or cooktops, the minimum rate of 1 CFM of ventilation per 100 British thermal units (BTU) is recommended. For example, if your high-output burner output is 45,000 BTU, look for a range hood that provides 450 CFM to best clear the air. However, the higher the CFM, the louder the hood will be.

What CFM range hood for gas stove?

For gas cooking surfaces or range, a minimum ventilation level of 100 CFM (Cubic Feet per Minute) per 10,000 BTU is recommended. However, the hood must have a minimum of 500 CFM of ventilation power.

How do you calculate ventilation needed in a room?

Derives the ventilation rate from the area of the space (in square feet) to be ventilated multiplied by the ventilation rate per square foot. Example: For residential bathrooms up to 100 sq. ft. in area, HVI recommends an exhaust rate of 1 cfm per square foot.

How do you calculate air flow from pressure?

Calculate air flow in a duct by measuring the air flow velocity in feet per minute (FPM) and multiplying by the duct cross sectional area in square feet (ft2). First, measure the velocity pressure in the duct. Use a differential pressure sensor in combination with a pitot tube assembly.

What is the difference between CFM and FPM?

FPM refers to the “air speed” produced by a dryer, as measured in Feet Per Minute. CFM is a measure of the “air flow,” stated in Cubic Feet per Minute. In other words, FPM is a measurement of how fast the air moves and CFM measures how much air is moved.

What is pitot tube flow meter?

A pitot (/ˈpiːtoʊ/ PEE-toh) tube, also known as pitot probe, is a flow measurement device used to measure fluid flow velocity. … It is widely used to determine the airspeed of an aircraft, water speed of a boat, and to measure liquid, air and gas flow velocities in certain industrial applications.

How does a pitot tube measure pressure?

It’s a slender tube that has two holes on it. The front hole is placed in the airstream to measure what’s called the stagnation pressure. The side hole measures the static pressure. By measuring the difference between these pressures, you get the dynamic pressure, which can be used to calculate airspeed.

Is it better to have a higher CFM?

A higher CFM is always better for your kitchen fan. You can always run a high CFM hood on lower settings. It provides great ventilation by moving a heavy amount of air per minute.

How do you calculate motor horsepower from CFM?

1. CFM To HP Formula. The following formula is used to estimate or convert CFM to HP. HP = (CFM * 1.44) …
2. CFM to HP Definition. How is CFM converted into HP? CFM can be converted into HP by multiplying the airflow by 1.6 and then multiplying that result by 0.9.
3. Example Problem. How to calculate HP from CFM?

DOES CFM matter for fans?

Cubic Feet per Minute – or CFM – determines the amount of air that a fan can move through a room while operating at the highest speed. The larger the space, the higher the fan CFM must be in order to efficiently cool a room. CFM for fans is a critical measurement for determining if a room can be cooled.

How do I calculate flow rate?

Q=Vt Q = V t , where V is the volume and t is the elapsed time. The SI unit for flow rate is m3/s, but a number of other units for Q are in common use. For example, the heart of a resting adult pumps blood at a rate of 5.00 liters per minute (L/min).

What determines airflow rate?

Determining air flow is a matter of multiplying the cross sectional area of a duct by the air velocity. If the dimensions of the duct are known, then the cross-sectional area can be easily determined and the volumetric flow calculated.

How strong should air be in vents?

A consistent and relatively strong airflow is one of the main signs of a fully functional HVAC system. The air coming out of your vents should be roughly equal throughout your whole house. A bathroom fan, for example, should be able to pump a minimum of 50 cubic feet of air per minute.

How do I calculate engine CFM?

The formula for calculating how much CFM (cubic feet per minute) an engine requires is: CFM = Cubic Inches x RPM x Volumetric Efficiency ÷ 3456. Any ordinary stock engine will have a volumetric efficiency of about 80%.

What does CFM mean for range hoods?

Take a hood’s power, for instance. One of the key features to look for in a range hood is the number of cubic feet per minute (CFM) the fan can move. It’s a measure of the hood’s power. A general rule of thumb is that you need 1 CFM for every 100 BTU’s your range produces.
