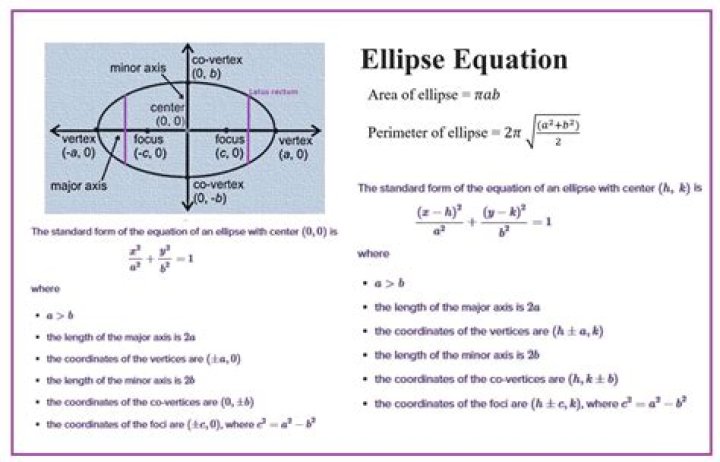

Remember the patterns for an ellipse: (h, k) is the center point, a is the distance from the center to the end of the major axis, and b is the distance from the center to the end of the minor axis.

What are A and B in ellipses?

For ellipses, a≥b (when a=b , we have a circle) a represents half the length of the major axis while b represents half the length of the minor axis.

What is 2a in ellipse?

In an ellipse, 2a is the length of the major axis and 2b is the minor axis. The distance beween the foci is 2c, and a,b,c satisfy b2+c2=a2.

What is A and C in ellipse?

Each ellipse has two foci (plural of focus) as shown in the picture here: As you can see, c is the distance from the center to a focus. We can find the value of c by using the formula c2 = a2 – b2. Notice that this formula has a negative sign, not a positive sign like the formula for a hyperbola.

Is major axis A or B?

In the standard form equation, look at the numbers in the denominators. They are the squares of half the lengths of the axes of the ellipse parallel to the respective variable. … The major axis of the ellipse has length = the larger of 2a or 2b and the minor axis has length = the smaller.

Is a always bigger than B in ellipses?

In both patterns, (h, k) is the center point, just as it was with a circle. The a and the b have to do with how wide and how tall the ellipse is. Each ellipse has a major axis and a minor axis. … Whichever denominator is larger determines which variable is a (because a is always bigger since it is the major axis.)

What do A and B represent in standard form?

Standard Form: the standard form of a line is in the form Ax + By = C where A is a positive integer, and B, and C are integers. The standard form of a line is just another way of writing the equation of a line.

Which equation represents the ellipse?

Given an ellipse on the coordinate plane, Sal finds its standard equation, which is an equation in the form (x-h)²/a²+(y-k)²/b²=1.

Is an ellipse a conic?

Ellipses are the closed type of conic section: a plane curve tracing the intersection of a cone with a plane (see figure). Ellipses have many similarities with the other two forms of conic sections, parabolas and hyperbolas, both of which are open and unbounded.

What is Vertex in ellipse?

Every ellipse has two axes of symmetry. … Each endpoint of the major axis is the vertex of the ellipse (plural: vertices), and each endpoint of the minor axis is a co-vertex of the ellipse. The center of an ellipse is the midpoint of both the major and minor axes. The axes are perpendicular at the center.

Article first time published on

What is 2c in ellipse?

A half-axis, from the center out to the ellipse, is called a “semi-major” or a “semi-minor” axis, depending on which axis you’re taking half of. … The length of the semi-major axis is a and the length of the whole major axis is 2a, and the distance between the foci is 2c.

How is ellipsoid formed?

ellipsoid, closed surface of which all plane cross sections are either ellipses or circles. An oblate spheroid is formed by revolving an ellipse about its minor axis; a prolate, about its major axis. …

What is ellipse Class 11?

Ellipse is the locus of a point in a plane which moves in such a way that the ratio of the distance from a fixed point (focus) in the same plane to its distance from a fixed straight line (directrix) is always constant, which is always less than unity.

Is a circle an ellipse?

So, a circle is a special kind of ellipse whose major and minor axes are equal in length. An ellipse can be thought of as a stretched circle.

How do you find the axis of an ellipse?

1. If the equation is in the formx2a2+y2b2=1, x 2 a 2 + y 2 b 2 = 1 , wherea>b, then. the major axis is the x-axis. …
2. If the equation is in the formx2b2+y2a2=1, x 2 b 2 + y 2 a 2 = 1 , wherea>b, then.

What is a transverse axis?

Transverse axis refers to an axis that is transverse (side to side, relative to some defined “forward” direction). In particular: Transverse axis (aircraft) Transverse axis of a hyperbola, coincides with the semi-major axis.

What does A and B represent in a quadratic equation?

The b-value is the middle number, the number next to the x. The other letters, a and c, are also numbers like b. Each of these can be any number. In combination, they tell you what the quadratic function will look like when graphed.

What does AB and C represent in a quadratic equation?

The Quadratic Formula uses the “a”, “b”, and “c” from “ax2 + bx + c”, where “a”, “b”, and “c” are just numbers; they are the “numerical coefficients” of the quadratic equation they’ve given you to solve.

What does B represent in standard form quadratic?

b conventionally stands for the coefficient of the middle term of a quadratic expression. The normal form of a generic quadratic equation in one variable x is: ax2+bx+c=0. Associated with such a quadratic equation is the discriminant Δ given by the formula: Δ=b2−4ac.

What if A is less than B in ellipse?

If a<b then the ellipse is taller than it is wide and is considered to be a vertical ellipse. If the equation of an ellipse is given in general form px2+qy2+cx+dy+e=0 where p,q>0, group the terms with the same variables, and complete the square for both groupings.

Is a always bigger than C in an ellipse?

In an ellipse, the semi-major axis, a, is longer than the semi-minor axis, b, so under this convention a is always the larger of the two numbers (if we define a and b this way, as lengths, we are assured both are positive).

What is the value of E in ellipse?

Eccentricity of Circle: For a Circle, the value of Eccentricity is equal to 0. The Eccentricity of Ellipse: For an Ellipse, the value of Eccentricity is equal to. √a2−b2a.

What is the B value in an ellipse?

Remember the patterns for an ellipse: (h, k) is the center point, a is the distance from the center to the end of the major axis, and b is the distance from the center to the end of the minor axis. Remember that if the ellipse is horizontal, the larger number will go under the x.

What is horizontal ellipse?

If major axis of ellipse is x axis or parallel to x axis it is called horizontal ellipse and if major axis of ellipse is y axis or parallel to y axis called vertical ellipse.

What is an ellipse in geography?

An ellipse is a closed-plane curve that results from the intersection of a plane cutting through a cone. … If one thing travels around another in the shape of an ellipse — like the earth around the sun — it has an elliptical orbit.

Which lines are the Directrices of the ellipse?

Mathwords: Directrices of an Ellipse. Two parallel lines on the outside of an ellipse perpendicular to the major axis.

Which points are the foci of the ellipse?

The foci always lie on the major (longest) axis, spaced equally each side of the center. If the major axis and minor axis are the same length, the figure is a circle and both foci are at the center. Reshape the ellipse above and try to create this situation.

What is a major axis of an ellipse?

The major axis of an ellipse contains the longer of the two line segments about which the ellipse is symmetrical. It is the line that passes through the foci, center and vertices of the ellipse. It is considered the principle axis of symmetry.

What is the coordinate of the center of the ellipse?

the center of the ellipse is (0,0) the coordinates of the vertices are (0,±a)=(0,±√25)=(0,±5)

What is eccentricity of ellipse?

The eccentricity of an ellipse is, most simply, the ratio of the distance c between the center of the ellipse and each focus to the length of the semimajor axis a.

How many vertices are there in an ellipse?

The line through the foci intersects the ellipse at two points, the vertices. The line segment joining the vertices is the major axis, and its midpoint is the center of the ellipse. The line perpendicular to the major axis at the center intersects the ellipse at two points called the co-vertices (0, ± b).
