PIM Sparse Mode (PIM-SM) is a multicast routing protocol designed on the assumption that recipients for any particular multicast group will be sparsely distributed throughout the network.

What is ip pim sparse mode in Cisco?

* PIM Sparse Mode (PIM-SM) explicitly builds unidirectional shared trees rooted at a rendezvous point (RP) per group, and optionally creates shortest-path trees per source. PIM-SM generally scales fairly well for wide-area usage. * PIM Dense Mode (PIM-DM) uses dense multicast routing.

What is the difference between sparse and dense mode?

One of the primary difference between Dense and Sparse mode is the multicast technique used. In Dense mode packets are flooded to the entire network and then branches where there are no receivers are eliminated. In Sparse mode packets branches distribution growth as new nodes join the multicast group.

How does PIM Sparse Mode work?

PIM Sparse Mode uses an explicit request approach, where a router has to ask for the multicast feed with a PIM Join message. PIM Sparse Mode is indicated when you need more precise control, especially when you have large volumes of IP multicast traffic compared to your bandwidth.

What would be a reason to use sparse mode over dense mode multicast?

Sparse mode assumes relatively fewer receivers. Dense mode is ideal for groups where many of the nodes will subscribe to receive the multicast packets, so that most of the routers must receive and forward these packets (groups of a high density).

What is the difference between IGMP and PIM?

IGMP snooping allows a device to only forward multicast streams to the links on which they have been requested. PIM Sparse mode requires specific designated routers to receive notification of all streams destined to specific ranges of multicast addresses.

What is RPF in networking?

Reverse-path forwarding (RPF) is a technique used in modern routers for the purposes of ensuring loop-free forwarding of multicast packets in multicast routing and to help prevent IP address spoofing in unicast routing.

What does load interval 30 mean?

If the load interval is set to 30 seconds, new data is used for load calculations over a 30-second period. This data is used to compute load statistics, including the input rate in bits and packets per second, the output rate in bits and packets per second, the load, and reliability.

What is IP PIM passive?

Displaying software resource usage for VLANs. Displaying the status of IGMP snooping traffic. Displaying querier information. Displaying the active interface with no other querier present. Displaying the passive interface with no other querier present.

What is prune message?

Prune: Multicast routing terminology indicating that the multicast-enabled router has sent the appropriate multicast messages to remove itself from the multicast tree for a particular multicast group.

Article first time published on

What is IGMP snooping querier?

IGMP Snooping Querier. The IGMP/MLD Snooping Querier is used to support a Layer 2 Multicast domain of snooping switches in the absence of a Multicast router. For example, where Multicast content is provided by a local server, but the router (if one exists) on that network does not support Multicast.

What is ip PIM RP address?

ip pim rp-address Configures a static IP address of a rendezvous point for a multicast group range or adds new multicast range to existing RP. The no form of the command removes the rendezvous point for a multicast group range or removes all configuration of the RP. Syntax Description.

What is * g multicast?

The “G” represents the specific multicast group IP address of concern. The IP header of the multicast data packet contains G as the packet’s destination address. So for a host whose IP address is 10.1. 1.1 acting as a source for the multicast group 224.1.

What is IGMP in networking?

The Internet Group Management Protocol (IGMP) manages the membership of hosts and routing devices in multicast groups. … Multicast routing devices use IGMP to learn, for each of their attached physical networks, which groups have members.

What is PIM dense mode?

Protocol Independent Multicast – Dense Mode (PIM-DM) is a data-driven multicast routing protocol, which builds source-based multicast distribution trees that operate on the Flood- and-Prune principle. It requires unicast-reachability information, but does not depend on a specific unicast routing protocol.

What is RPF check in PIM?

RPF checks are performed only on unicast addresses to find the upstream interface for the multicast source or RP. The routing table used for RPF checks can be the same routing table used to forward unicast IP packets, or it can be a separate routing table used only for multicast RPF checks.

What is the purpose of RPF check on an IP multicast network?

RPF Check Basics Because routers can find out the source of a multicast packet based on the source address, they can check the source addresses of multicast packets to ensure correct forwarding paths. The process of checking the forwarding path based on the source address is a reverse path forwarding (RPF) check.

Does RPF actually create a shortest path tree?

Does RPF actually create a shortest path tree? … No, RPF does not create a shortest path tree because a network can receive more than one copy of the same multicast packet.

Does IP multicast reduce traffic?

Multicast protocols such as UDP/IP and RTP/IP are used to broadcast data to any number of receiving devices. … Multicast can both reduce and increase network traffic, depending on how the network is configured. Multicast can reduce network traffic because there is no attempt to resend data. It is sent only once.

What is multicast and Unicast?

A Unicast transmission/stream sends IP packets to a single recipient on a network. A Multicast transmission sends IP packets to a group of hosts on a network.

Is video conferencing example of IP multicast?

In computer networking, multicast is group communication where data transmission is addressed to a group of destination computers simultaneously. … Multicast is often employed in Internet Protocol (IP) applications of streaming media, such as IPTV and multipoint videoconferencing.

What is BSR and RP in multicast?

BSR (Bootstrap) is similar to Cisco’s AutoRP, it’s a protocol that we use to automatically find the RP (Rendezvous Point) in our multicast network. … Candidate BSR: this is the router that collects information from all available RPs in the network and advertises is throughout the network.

How do I set up auto RP?

1. Configure PIM in sparse-dense mode on all routing devices in the PIM domain. …
2. Configure a routable loopback interface address on all routing devices in the PIM domain. …
3. Configure the two multicast dense groups on all the routing devices. …
4. Configure the auto-RP announce option.

What is ip PIM AutoRP listener?

ip pim sparse-dense-mode to allow group 224.0.1.40 to be treated as dense mode (no need of an RP) or you use this ip pim autorp listener that allows the device to listen to and propagate mapping messages even if no RP for the group exists.

What is Switchport Nonegotiate command?

switchport nonegotiate: Prevents the interface from generating DTP frames. You can use this command only when the interface switchport mode is access or trunk. You must manually configure the neighboring interface as a trunk interface to establish a trunk link.

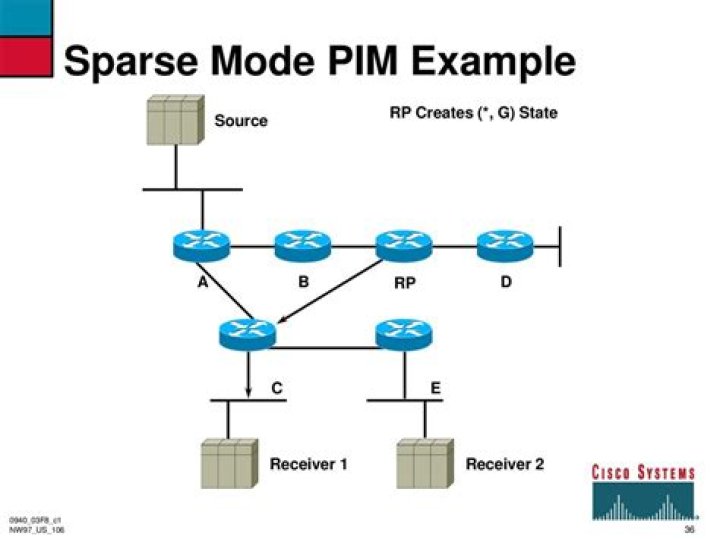

How does multicast sparse mode work?

To solve this issue, PIM sparse mode uses a RP (Rendezvous Point) in the network. Here’s how it works: Each router that receives multicast traffic from a source will forward it to the RP. Each router that wants to receive multicast traffic will go to the RP.

Should I disable IGMP snooping?

You should generally leave the IGMP Snooping option as disabled if you do not use mirroring functions or other type of multicast traffic.

Why do we need IGMP querier?

The responsibility of the Querier is to send out IGMP group membership queries on a timed interval, to retrieve IGMP membership reports from active members, and to allow updating of the group membership tables.

Is IGMP snooping necessary?

IGMP snooping is an important feature of network switches. When it is enabled, the bandwidth consumption will be reduced in a multi-access LAN environment so as to avoid flooding the entire VLAN, and network information security can also be improved at the same time.

What is Anycast RP?

PIM Anycast RP is a method of providing load balancing and fast convergence to PIM RPs in an IPv4 multicast domain. The RP address of the Anycast RP is a shared address used among multiple PIM routers, known as PIM RP. The PIM RP routers create an Anycast RP set.

What is the role of RP in PIM?

The RP router serves as the information exchange point for the other routers. All routers in a PIM domain must provide mapping to an RP router. It is the only router that needs to know the active sources for a domain—the other routers just need to know how to reach the RP.
