LNAV/VNAV, aka L/VNAV (Lateral NAVigation/Vertical NAVigation) — Horizontal and approved vertical guidance to the LNAV/VNAV line of minimums. Lateral sensitivity does not increase as the aircraft gets closer to the runway. Vertical guidance is provided either by WAAS or approach-certified baro-VNAV systems.

What is LNAV in Boeing?

LNAV and VNAV are parts of the Flight Guidance System, and are acronyms for Lateral Navigation and Vertical Navigation’. Both these functions form part of the automation package that the B737NG is fitted with. LNAV is the route you fly over the ground.

What is VNAV used for?

In aviation, vertical navigation (VNAV, usually pronounced vee-nav) is glidepath information provided during an instrument approach, independently of ground-based navigation aids. An onboard navigation system displays a constant rate descent path to minimums.

What is LPV vs LNAV?

The difference between LPV and LNAV/VNAV is that although they both have vertical guidance, LPV was intentionally designed to be very similar to an ILS approach with an increasingly sensitive glideslope whereas LNAV/VNAV was not.

How does LNAV Vnav work?

An LNAV approach is flown to a Minimum Descent Altitude, MDA, while an LNAV/VNAV approach is flown to a Decision Altitude, DA. If WAAS becomes unavailable, a GPS or WAAS equipped aircraft can revert to the LNAV MDA using GPS only.

What is VNAV mode?

VNAV stands for Vertical Navigation and is an autopilot feature that allows the aircraft to adjust vertical speed to meet a predetermined altitude at a specified waypoint.

Can I use LNAV Vnav?

When you fly an LNAV +V approach, you need to use LNAV minimums, but the +V will give you an advisory glide path all the way down the approach. Keep in mind, it’s possible +V could take you below step-down minimums, so you need to keep an eye on your altitudes.

What is Lnav and VNAV in Boeing?

If the autopilot is off, LNAV and VNAV still send their signals to the flight director so we can hand fly the plane the way the autopilot would if it were flying. So in summary, RNAV is a method of navigation, and LNAV/VNAV are subsystems of the autoflight system.

How do I use Lnav?

Simply point lnav at your log files and it will automatically detect the Log Formats, index their contents, and display a combined view of all log messages. You can navigate through your logs using a variety of hotkeys.

Is Vnav a precision approach?

4 Answers. LPV, LNAV/VNAV, and Baro VNAV are considered to be an ‘Approach with Vertical Guidance (APV)’. These types of approaches are differentiated from ‘Precision’ approaches (ILS, PAR, etc.) in the FAA AIM (Section 5-4-5, Paragraph 7):

Article first time published on

What are Lnav minimums?

So at a minimum, the LNAV MDA on an approach is at least 250 feet above the highest obstacle in your path. But, there are several factors that can cause the MDA to be higher. If the MDA needs to be raised, they do it in 20 foot increments. Next up, let’s look at approaches with vertical guidance.

What is LP MDA?

They are added in locations where terrain or obstructions do not allow publication of vertically-guided LPV procedures. Both LP and LNAV lines of minima are Minimum Descent Altitudes ( MDA ) rather than DAs . … An LP is published if it provides lower minima than the LNAV .

How does RNAV work?

Instead of having to go directly from one ground-based station to the next in a zig-zag pattern, RNAV allows aircraft to fly directly to any point within the coverage zone of the station being used. This “direct-to” capability often allows aircraft to bypass published routes, freeing up more airspace for traffic.

What does approach mode do?

The mode is not only used when flying by autopilot, it is also used when you fly manually. If you are doing the approach with the flight director bars on and given that ‘app’ is engaged, the bars will give you the guidance to capture and follow both the localiser and glide.

What is required for LNAV VNAV?

LNAV/VNAV procedures require an approach certified barometric vertical guidance (Baro-VNAV) system; and a GPS or a WAAS system approved for LNAV/VNAV.

Is RNAV only GPS?

The term “RNAV” allows pilots to use various means of area navigation, including but not requiring GPS. They enable specific VOR/DME RNAV equipment to create waypoints on the final approach path by virtually “moving” the VOR a specific DME distance along a charted radial.

What does Lpv stand for?

AcronymDefinitionLPVLocalizer Performance with Vertical Guidance (aviation)LPVLinear Parameter-Varying (systems and controls)LPVLong Period Variable (astronomy)LPVLand Product Validation

Can you shoot an RNAV approach without GPS?

Therefore, RNAV approaches make more airports accessible under instrument conditions. … Note that you cannot use a GPS to shoot approach procedures titled “VOR/DME RNAV RWY XX,” unless it also says “or GPS” in the title. Only VOR/DME RNAV systems can be used for these approaches.

What is the difference between ILS and RNAV?

RNAV is GPS and satellite-based, while ILS is just a landing system and is fully ground-based. ILS is just a landing system and is fully ground-based.

What is IAS auto pilot?

When you engage IAS mode, the autopilot will automatically adjust vertical speed to maintain whatever indicated airspeed you were at when you engaged it. So if you press IAS at 180kts in a climb, it will adjust vertical speed to maintain 180kts. Same thing in a descent.

What is vertical speed mode?

According to the FAA’s Advanced Avionics Handbook, when you engage “Vertical Speed” Mode (V/S), the autopilot will attempt to maintain the specified Foot-Per-Minute vertical speed until you choose a different setting in autopilot, the aircraft reaches an assigned altitude set into the assigned altitude selector/alerter …

What is Lnav in Linux?

LNAV is a powerful, open-source and command-line enhanced log file navigator and viewer for Linux and Unix systems. It is created to help Sysadmins navigate through the /var/log directory and easily view logs based on timestamps and log levels filters.

What is an airport localizer?

An instrument landing system localizer, or simply localizer (LOC), is a system of horizontal guidance in the instrument landing system, which is used to guide aircraft along the axis of the runway.

What is WAAS aviation?

The Wide Area Augmentation System (WAAS) provides extremely accurate navigation capability by augmenting the Global Positioning System (GPS). It was developed for civil aviation by the Federal Aviation Administration (FAA) and covers most of the U.S. National Airspace System (NAS) as well as parts of Canada and Mexico.

What is the difference between DA and MDA?

Yet, decision altitude (DA) and minimum descent altitude (MDA) are very different concepts. As the names suggest, DA is a decision point while MDA is the lowest altitude allowed without visuals.

Can I fly an RNP approach?

A RNP APCH is designed to support most approach operations and any aircraft certified for RNP APCH with approved flight crews can fly any published RNP approach. A RNP AR APCH is designed for more demanding procedures that require specific authorisation.

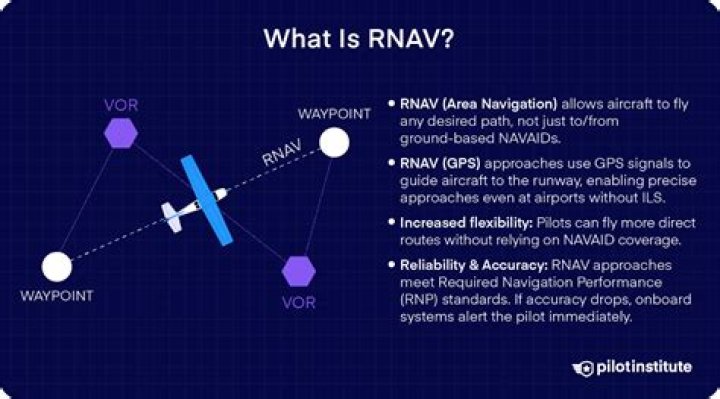

What is RNAV in aviation?

Area navigation (RNAV) is a method of navigation that permits aircraft operation on any desired flight path within the coverage of ground- or space-based navigation aids, or within the limits of the capability of self-contained aids, or a combination of these.

What is RNP AR?

existing RNP-certified aircraft. • “AR” = “Authorization Required” – Similar to how CAT III Instrument Landing System (ILS) is approved by Civil.

What happens when you lose WAAS?

If you lose a signal completely, you’ll get an “abort approach—navigation lost” message. That means an immediate missed approach procedure, unless you have a second WAAS GPS receiver as a backup—ready and programmed for the approach.

What is RNAV stand for?

RNAV stands for Area Navigation. RNAV : Capability to fly any desired flight path, defined by waypoints such as geographic fixes. (LAT/LONG) and not necessarily by ground navaids.

Does RNAV use VOR?

Area navigation (RNAV) equipment includes VOR/DME, LORAN, GPS, and inertial navigation systems (INS). … Some aircraft may have equipment that allows input from more than one RNAV source, thereby providing a very accurate and reliable navigation source.
