In a blower motor, the relay supplies the power that allows the fans to circulate warmed air. Essentially an on/off switch, the blower motor relay’s reactions start and end the heating process in HVAC systems by controlling the flow of current between the power source and the motor.

How do I know if my blower relay is bad?

If you have a faulty blower motor, you may experience low airflow from the vents, even when the fan is on high. There will be no air coming from the vents if your fan isn’t working due to a bad blower motor resistor.

What is a relay in HVAC?

A relay turns HVAC equipment on or off. It’s that easy. A thermostat is also just a switch that turns HVAC equipment on and off. … A relay can have more that one voltage going through it because there is no electrical connection among the parts of a relay. A 24V thermostat circuit sends electricity to the relay coil.

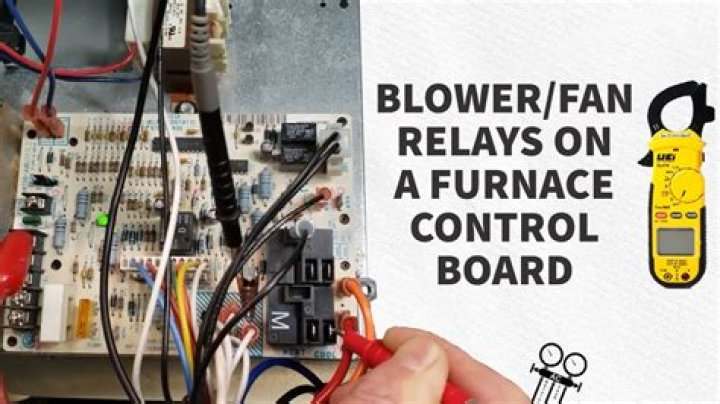

What does a blower relay do in a furnace?

Gas Furnaces and Air Handlers use a fan relay to switch the blower motor ON and OFF. The fan circulates the warm or cold air inside the home. Most furnaces and air handlers using a two-speed motor, a high speed for cooling and a lower speed for heating.

What happens if your blower motor relay is bad?

If the blower motor relay develops any sort of problem that hinders its ability to properly limit and distribute power, it may cause the blower motor fuse to blow. Any sort of electrical spikes or excessive current from a bad relay will blow the fuse and cut power in order to protect the system.

Why does my blower motor kick on and off?

…you most likely have a bad fan limit switch. Your furnace fan limit switch is basically a control system that determines when the furnace blower assembly should turn on and off. … So if your furnace blower is turning on and off when the furnace isn’t in a heat cycle, it usually means the fan limit switch is defective.

What causes blower motor relay failure?

In most cases, a blower motor resistor fails due to corrosion or overheating. Sometimes, the mechanical resistance to the motor rotation causes an excessive electric current that can overheat and prematurely damage the blower motor resistor.

Where is the relay for the blower motor?

The blower motor relay is generally located in the under-hood fuse box or in the under-dash fuse box. A blown fuse can mimic relay failure.

Does a furnace have a relay in it?

The electric relay in a furnace is responsible for relaying electrical power to the heating elements and the blower motor inside the furnace cabinet. The heating elements provide the heat to warm the air, and the blower motor sends this warmed air through the ductwork.

How much is an AC relay?

How much does an a/c compressor relay cost? It’s cheap and easy. It’s as simple as swapping out one relay for another and then testing the system. Expect prices to start around $35 to $100+ for a replacement of the relay alone.

Article first time published on

How does a relay work?

A relay is an electrically operated switch. They commonly use an electromagnet (coil) to operate their internal mechanical switching mechanism (contacts). When a relay contact is open, this will switch power ON for a circuit when the coil is activated.

Why will a blower run on the on position and not on auto?

Other Blower Fan Won’t Run Problems The fan will run and blow warm air but only in FAN or FAN ON mode – delivering heat – but NOT in AUTO mode. This is a bad temperature sensor in the unit; replace the fan limit controller.

Where is the blower fuse located?

Many vehicles have two fuses for the blower motor, one in the interior fuse block and the other under the hood. The blower motor is usually under the dashboard on the passenger side.

Why is my furnace running but not blowing air?

Your filter could be so saturated with dust and debris. … Every modern furnace is equipped with a safety shutoff that will be tripped if your furnace gets too hot, and a clogged air filter can cause your furnace to overheat, shut itself off and give you the illusion of a furnace not blowing air.

Where is the AC relay?

The relay can be mounted on the fire wall or on the fender well. A/C control installations typically have a three-wire connection for the relay. One wire is a ground, one wire is the input from the interior control panel, and one wire is the power feed to the A/C compressor clutch.

What causes a relay to fail?

In fact, the life of a relay is essentially determined by the life of its contacts. Degradation of contacts is caused from high in-rush currents, high- sustained currents, and from high voltage spikes. … Relays can also fail due to poor contact alignment and open coils.

Why does a relay burn out?

The following causes are probable. If overvoltage is applied to the coil, the coil’s insulating film will be destroyed, and short-circuiting will cause high temperature. The color of the coil will change, and the resin around the coil will melt.

Can a bad relay drain your battery?

A failed ECM power relay can also cause a battery drain or dead battery. If the relay shorts it can leave power on to the computer, even when the vehicle is turned off. This will place a parasitic drain on the battery, which will eventually cause it to go dead.

Why does my furnace turn on and off every few minutes?

Dirty or faulty flame sensor If your furnace turns off after a few minutes, there is a good chance it is caused by a faulty or dirty flame sensor. This vital component is designed to keep an eye on the gas burner. When it cannot sense that burner, the furnace runs then shuts off and starts again.

Why does my central air fan keep running?

AC Unit Is Too Small Or Unable To Match Settings A too-small HVAC system will often run to keep up with the thermostat setting, leading the fan and blower to run consistently. … This means that the entire system, including the fan, will run longer than usual to attain the set temperature.

Why does furnace blower run constantly?

If your fan limit switch is set to AUTO but the fan continues to run without ever stopping, you’ll need to call a professional. Two problems that could cause your fan to run without stopping include: A bad fan limit switch that needs to be replaced. Bad thermostat wiring.

What controls the blower motor on the furnace?

Motor Controls for HVAC – Motor controls are necessary to start and stop air conditioning and heating motors automatically or manually. The most common manual motor control for air conditioning and heating is the thermostat. … This switch when placed in the on position turns the blower motor on.

Are Relays AC or DC?

General Purpose Relays are electromechanical switches, usually operated by a magnetic coil. General purpose relays operate with AC or DC current, at common voltages such as 12V, 24V, 48V, 120V and 230V, and they can control currents ranging from 2A-30A.

What is DC relay?

Direct current (DC) is steady and never reverses. A DC relay uses a single coil of wire wound around the iron core to make the electromagnet. … Once the current is turned off and the iron core is no longer magnetized, the spring-loaded lever returns to a relaxed position and the electrical contacts are switched back.

Why is a relay needed?

Relays can reduce the need for high-amperage wiring and switches, which are expensive and take up space. Therefore, switching to relays in your electronic systems can reduce the size or weight of a casing, for instance, or allow manufacturers to fit more functionality into a space of the same size.

Which are the two types of relays?

• Relays are electrically operated switches. …
• Electromechanical relays have an electromagnetic coil and a mechanical movable contact. …
• Solid-state relays are solid-state electronic components that do not have any moving components, which increases their long-term reliability.

Is relay a sensor?

The term “relay” is usually called a variety of devices, the switching contacts in response to a change in some input variable, not necessarily electric. … In fact it is the sensors that are connected to the relay and interacting with them according to a specific algorithm.
