FireWire, also called IEEE 1394 or i. LINK, high-speed computer data-transfer interface that was used to connect personal computers, audio and video devices, and other professional and consumer electronics.

Is 1394 the same as USB?

FireWire is also known by the term IEEE 1394 High Performance Serial Bus, and USB stands for Universal Serial Bus. … The two technologies are still mainly the same, although FireWire costs a bit more than USB.

Where does the 1394 cable go?

The 1394 header and USB header is a pin connection found on a computer motherboard that allow additional 1394 and USB connections to be added to the computer. For example, a USB add-on could be installed in one of the drive bays and connected to the USB header to add additional USB ports.

Can I plug 1394 into USB header?

DO NOT connect a 1394 cable to the USB connectors. Doing so will damage the motherboard!

What does IEEE 1394 stand for?

Acronym. Definition. IEEE 1394. Institute of Electrical & Electronics Engineers high speed serial bus standard (aka FireWire and i.Link)

What does a FireWire socket look like?

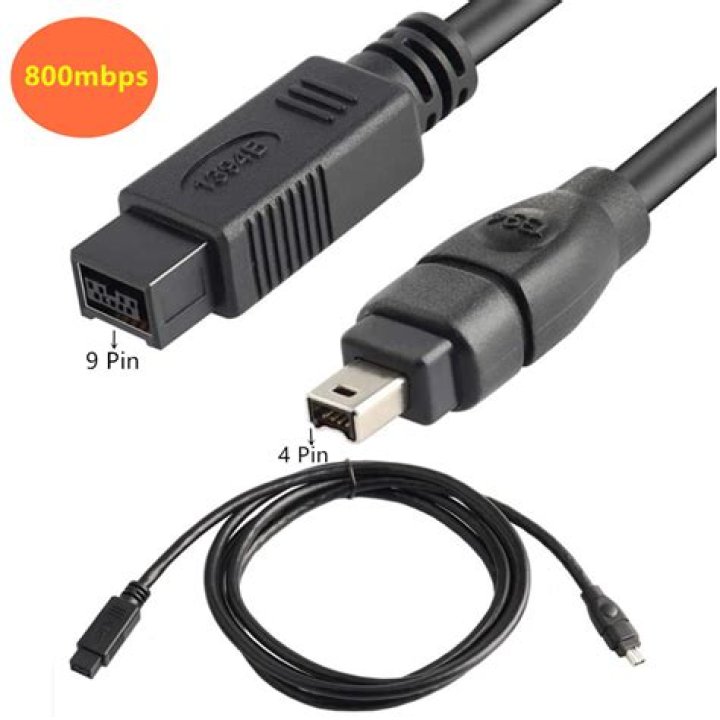

FireWire has two versions, and unlike USB 2.0 and 3.0, they’re not backward compatible. They don’t even look remotely alike, which can lead to some confusion. The older standard, FireWire 400, is a flatter connector with one rounded side, and the faster 800 version resembles a fat USB connector.

Is FireWire still used?

Firewire didn’t die. It’s still in use in many high-end setups, and you can still buy Firewire drives today. But it definitely became a niche product, with even Apple eventually dropping the port from its MacBooks.

Is FireWire faster than eSATA?

eSATA, an external connection that runs at the same speed as the internal SATA 1.0 bus, has a maximum theoretical of 3Gbps. This makes USB 3.0 faster than eSATA and about six times faster than FireWire 800 (full duplex at 800Mbps).

Is FireWire a USB?

The main difference between FireWire and USB is that the FireWire is an Apple version of IEEE 1394 interface that allows high-speed data transferring between devices while USB is an interface that enables communication between devices and a host controller such as a personal computer.

What is F_usb on motherboard?

InvalidError said: “F USB” sounds like it would stand for front-panel USB. If your PC case has front USB ports, the cable for those needs to plug into the matching port on the motherboard if you want to use them.

Article first time published on

Is FireWire better than USB?

In general, FireWire devices support a higher bandwidth than USB 2.0, and therefore can send more data faster. This results in the ability to utilize more inputs and outputs, as well as increased performance and stability. … FireWire streams data rather than packets data.

What color is the IEEE 1394 cable end?

4-pin connector6-pin connectorcolor of wire in cable2black13red24green35orange

What do USB headers look like?

USB headers are a couple of rows of pins that look like this for USB 2.0: They are the 3 little blue boxes. Each one of those supports 2 USB ports.

How many devices can be connected to an IEEE 1394 port?

IEEE 1394, High Performance Serial Bus, is an electronics standard for connecting devices to your personal computer. IEEE 1394 provides a single plug-and-socket connection on which up to 63 devices can be attached with data transfer speeds up to 400 Mbps ( megabit s per second).

What is an ATX cable?

An ATX style connector is a replacement for the older P8 and P9 AT style connector. It is one of the largest connectors inside a computer. It connects a power supply to an ATX style motherboard. As shown in the picture, the 20-pin cable is a multi-color cable and may be labeled as P1. Note.

What devices use FireWire?

Firewire is most often used to connect digital camcorders, external hard drives, and other devices that can benefit from the high transfer rates (up to 480 Mbps) supported by the Firewire connection. The iSight camera used for chatting on the Mac connects using a Firewire cable.

When was FireWire discontinued?

FireWire was phased out of Mac hardware between 2008 (when the MacBook Air released without a FireWire port) and 2012 (when the last FireWire-equipped Macs came out).

Does FireWire carry power?

Like its predecessor, FireWire 800 provides significant amounts of power on its bus (up to 45 watts, with a maximum of 1.5 amps and 30 volts). This means that many devices can be powered through the FireWire cable and will not need their own power cables and adapters.

What replaced FireWire?

This past summer Apple announced its 15-inch Retina MacBook Pro with a surprising omission: no FireWire port. In its place is Apple’s latest peripheral connector, USB 3.0, which provides equivalent performance and is widely used in recent Windows PCs.

Is there a FireWire to HDMI adapter?

The answer is no. There is no FireWire to HDMI cable or Firewire adapter except for Smart TVs as they have an input HDMI connection. The solution is to utilize an expansion card like a PCI-X card, an output device with SDHC / SDXC memory cards, or built-in Firewire in the receiver device.

How do I get FireWire on my PC?

Like USB, FireWire is a plug-and-play connection; a FireWire port can support 63 devices (using a daisy-chaining technique). Just connect a device to your PC by using a FireWire cable — run the cable from the device to the FireWire port on your PC, and you’re ready to roll!

Why is it called FireWire?

FireWire was first developed by Apple and it was standardized in 1995; it was given the name IEEE 1394 High Performance Serial Bus. It works much like a Universal Serial Bus, commonly called a USB. FireWire was created to quickly relay information in an easy-to-use manner and to allow many devices to use the same bus.

Which has the highest data rate USB or IEEE 1394?

Production historyBitrate400–3200 Mbit/s (50–400 MB/s)

What is a FireWire to USB adapter?

Whereas FireWire relies on an IEEE 1394 serial bus, USB utilizes a universal serial bus, which corresponds directly to USB acronyms. … The firewire to USB adapter is one of the options to convert the FireWire connection to USB, so let us discuss this.

What are the three differences between FireWire and USB?

• Firewire was developed by Apple along with some other contributors while USB was developed by Intel and Microsoft with help from other companies too.
• Firewire is much faster than USB.
• Firewire circuitry is more complex than USB.
• Firewire can provide a lot more power to devices compared to USB.

Which port listed is the fastest?

• Thunderbolt (up to 40 Gbps)
• USB 3.1 (10 Gbps), then USB 3.0 (5 Gbps)
• eSATA (6 Gbps)
• Firewire (6 Gbps)
• Gigabit Ethernet (1 Gbps)
• USB 2.0 (480 Mbps)
• Ethernet (100 Mbps)

What is the fastest connection for an external hard drive?

Solution: The fastest connection arrangement used by the external storage devices or external hard drives is Thunderbolt 3 . The maximum speed of Thunderbolt 3 for data transfer is 40 Gbps (Gigabytes per second).

Which is faster USB or Ethernet?

In terms of speed, Ethernet is twice faster than USB. USB can connect multiple devices at the same port. Ethernet is used to connect cable modem, whereas USB is used to connect peripheral devices. And Ethernet has a much larger range of network when compared to the USB’s range.

Where does the VDG cable go?

The VDG is for some of the Gigabyte and Aorus motherboards that only used the 3 pin connection. other brands all used the 4 pin connector and Gigabyte swapped to that style on the more recent boards. You need to use the same connector that it shows for other brands that uses the 4 pin connector with 1 pin missing.

What does JUSB1 mean?

The little connector blocks on the motherboard that are labeled as JUSB1 and JUSB2 are where you plug in the USB cables from the case.

What is JCOM1 on motherboard?

JCOM1 is a 9-pin connector on some older motherboards that is used to connect serial port devices. … These devices need a separate port connector on the motherboard. JCOM1 is not a standard connector like the parallel port connector (COM1) or USB port connector. It is a proprietary connector.
