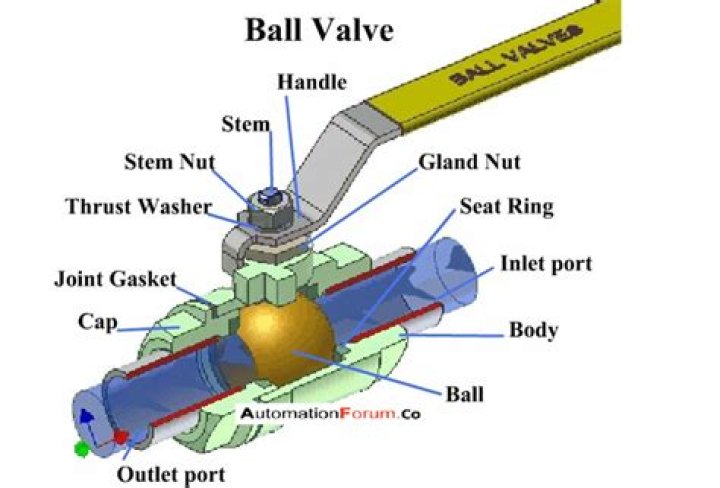

A ball valve is a shut off valve that controls the flow of a liquid or gas by means of a rotary ball having a bore. By rotating the ball a quarter turn (90 degrees) around its axis, the medium can flow through or is blocked.

What is the advantage of ball valve?

Advantages Of Ball Valves: Good sealing performance: Ball valve has a good sealing performance and will no leakage. Strong: Could withstand high pressure up to 400bar even more. Also could withstand high temperature up to 350℃

How can you tell the difference between a ball valve and a gate valve?

The main difference between ball valves and gate valves While gate valves open by lifting a round or rectangular gate out of the path of the fluid, ball valves have a stem and a ball that turn horizontally. This is why ball valves are often referred to as a rotational valve.

What industries use ball valves?

If you’re an oil or gas engineer, you know that ball valves are very essential components of piping systems. They are used for various purposes throughout the oil and gas industry. For upstream applications, they control the flow of oil. For the midstream, they protect equipment by controlling the flow of gas and oil.

What are valves used for?

A valve is a device or natural object that regulates, directs or controls the flow of a fluid (gases, liquids, fluidized solids, or slurries) by opening, closing, or partially obstructing various passageways.

What are the types of ball valves?

Types. There are five general body styles of ball valves: single body, three-piece body, split body, top entry, and welded. The difference is based on how the pieces of the valve—especially the casing that contains the ball itself—are manufactured and assembled. The valve operation is the same in each case.

Can ball valves be used for flow control?

A ball valve is typically a quarter-turn valve with a perforated ball in the middle to control flow. … Even though ball valves aren’t the best device to control flow, they are still commonly used because of their cost effectiveness.

How does a diaphragm valve work?

Diaphragm valves use a flexible diaphragm connected to a compressor by a stud which is molded into the diaphragm. Instead of pinching the liner closed to provide shut-off, the diaphragm is pushed into contact with the bottom of the valve body to provide shut-off.

What is a globe valve?

A globe valve regulates flow in a pipeline. It is used to control or stop the flow of liquid or gas through a pipe. Globe valves are named for their spherical body shape with the two halves of the body being separated by an internal baffle. … Globe valves are also known as throttle valves.

Why the use of valves in the industry is important?

Positioning a valve correctly can increase a systems life expectance, reduce maintenance costs, lower the effects of cavitation and increase the system’s efficiency.

Article first time published on

What is the importance of the valves in the production industry?

Valves serve a variety of purposes in the industrial, engineering, manufacturing and scientific communities. … The main purpose of a valve is to control media flow through a system. The valve may be used to start, stop, or throttle the flow to ensure safe and efficient operation of the process.

Which valve is mostly used in process industries?

Double block and bleed valves are used primarily in process control applications for the purpose of shutting off the upstream pressure and bleeding off the fluid and/or pressure of the system. They may be manually operated or controlled by an electro-mechanical actuator.

Can you use a ball valve for hot water?

The ball valve is used as shut-off valves in the distribution of hot and cold water.

Can I replace a gate valve with a ball valve?

If you already have a gate valve installed and have to replace it, you can certainly replace it with a ball valve. You will need a torch to heat up the parts and remove them. Turn the water off and drain it from the pipe and valve. You will want to open the valve as well.

What type of valve is used for steam?

Ball valves are commonly used in steam, water, oil, gas, air, corrosive fluids. They can handle slurries and dusty dry fluids.

What is a ball valve in plumbing?

Ball valves, also called shut-off valves, tend to be increasingly found in newer homes. Ball valves use a handle to control the placement of a hollow, perforated sphere in the mechanism. When the handle is turned, the hole immediately opens or closes the water flow.

Which valve is most commonly used in household applications?

Pressure balancing valves are the most common type of household valve. This type of valve has a single control and a handle.

What are valves used for in oil and gas?

Gas valves are flow control devices that play an essential role in any piping system. They are used in the oil and gas industry to handle, regulate and control the flow rates of gases such as natural gas, oxygen and liquefied petroleum.

Can you use a ball valve to reduce pressure?

A ball valve only controls flow and not pressure. A ball valve can be used to limit the pressure after water is flowing. A ball valve requires less plumbing than a pressure Regulator. The maximum pressure won’t be reached until the set point is reached.

Can you use a ball valve to throttle?

BALL VALVES Many people use them successfully for throttling clear water. Ball valves have low pressure drops, open and close quickly, are simple, and are trouble free. With the development of Teflon seals, ball valves have grown in popularity. Opening or closin a ball valve too quickly can cause fluid hammer.

Can you throttle flow with a ball valve?

Ball Valves To get the best use of a ball valve, we recommend using it for throttling gases in low-flow circumstances. … It provides a minimal drop in pressure thanks to its nonsticking design when the valve is fully open.

Does a ball valve have packing?

Under the handle of these ball valves there’s a nut. This is called the “packing nut”. … Specifically, there’s a piece of PTFE which is squeezed by the nut to form a seal against the body and stem.

Why do ball valves fail?

A variety of factors can contribute to ball valve failure including poor design (chemical compatibility, rated pressure/flow rate, etc.), faulty installation, and/or improper operation.

What is the difference between floating ball valve and trunnion ball valve?

The ball in a trunnion ball valve is supported by the stem and trunnion, reducing the operating torque, while the seats are spring loaded. In a floating ball valve, the ball floats and the seats are fixed while the ball is only supported by the stem.

What is the difference between Globe and ball valve?

A globe valve uses a plug (stem) that closes against the flow, and a ball valve has a gate (ball) that closes across the flow. Globe valves are good for regulating flow, whereas ball valves are better for on/off control without pressure drop. … They are generally preferred over globe valves in shutoff applications.

What is the difference between globe valve and butterfly valve?

The globe valve raises the stem when it opens or closes, meaning that the handwheel rotates and lifts along with the stem. For butterfly valve, disc-shaped butterfly plate in the body around its own axis rotation, so as to achieve the purpose of opening and closing or adjustment.

What is meant by check valve?

A check valve is a valve that is closed by the pressure of a fluid so that the fluid does not flow back in the direction it came from. Check valves ensure that fuel flows in only one direction, thus avoiding contamination.

What is a diaphragm ball valve?

A Diaphragm valve is a flexible, pressure responsive element that transmits force to throttle, open or close a valve. Diaphragm valves separate the flow stream from the closure element using an elastomeric diaphragm, which is a flexible, durable material.

Where do we use diaphragm valve?

• Water and Wastewater.
• Power.
• Pulp and Paper.
• Chemical.
• Cement.
• Mining and Minerals.
• Pharmaceutical and Bioprocessing.

Who uses diaphragm valves?

Straight through diaphragm valves are used for slurries, viscous fluids, and other applications where blocking must be reduced. They are also useful for bi-directional flow regimes, as there is no saddle to impede swift changing from inlet to outlet.

Why are pumps and valves important?

Valves regulate and control flow and pressure in pumping systems. They also play an important role in site safety. … A variable speed pump station design will require additional considerations.
