What Is a Header Board (or “Ledger”)? When building a deck that juts out from a house, the deck is usually tied into the house structurally. To achieve this, a header board or “ledger” is bolted to the house. The header board is one end of the deck, and the deck at this end derives support from the house.

What is the purpose of a wood header?

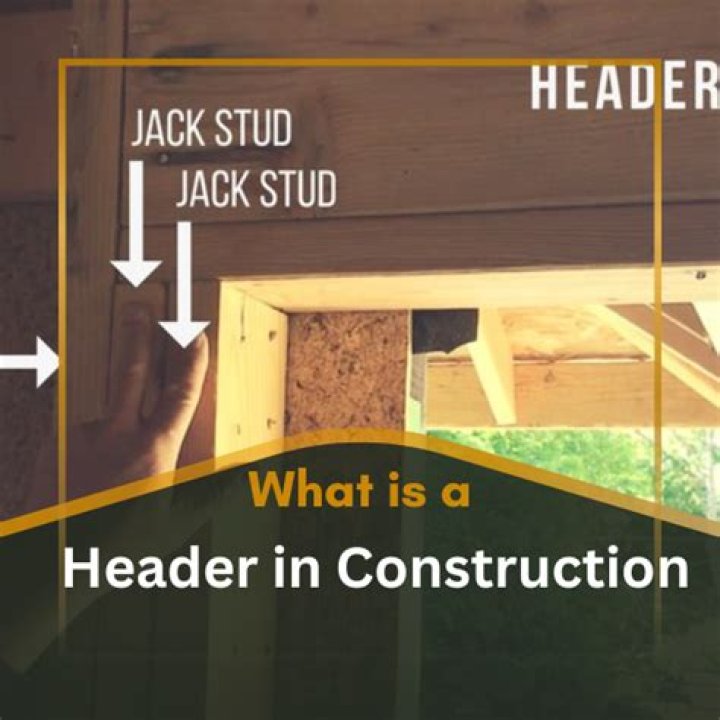

A header in the construction and engineering world is a beam over an opening that disperses the structural load to the outside of the opening to keep structural integrity. Otherwise, the load from the roof, floor, or whatever is above the opening can lead to stress that can cause cracks, shifting, or even worse.

What are parts of a deck called?

• Footing. – Most decks begin by pouring concrete footings and attaching post anchors. …
• Post. – Posts are attached to the footings and hold the support beams up off the ground. …
• Beams. …
• Joist. …
• Ledgers and header joists. …
• Deck boards. …
• Drainage system. …
• Hidden fasteners.

What is the purpose of a header joist?

Typically at least twice the size of surrounding framing members, a header is often built up from two studs, joists, or rafters. It runs between full-length supports and, along its length, carries the loads of the shorter studs, joists, or rafters that terminate at the opening.

Are headers structural?

They’re the structural elements that allow us to install windows and doors without weakening the walls. In the real world of architects, carpenters and lumberyards, these bridges are called headers (Fig. A).

Is a header a lintel?

Essentially, headers and lintels are mostly the same. Most people in the United States use the word lintel, while in some parts they are also called a header. Both of them do the same job. They are beams that mainly function to support openings in homes and buildings.

How big of a header do I need?

Measure the width of your door frame. Most door frames that are 4 feet wide or less require a 2-by-6 header. Between 4 and 5 feet, the header should be built 2 inches wide and 8 inches long while a larger opening needs a header that is 2-by-12. When in doubt, use 2-by-12-inch headers.

What do you mean by header?

A header or heading is text at the top of a page in an electronic document or hard copy. … For example, in Microsoft Word, a header could be created in a document to display the page number of each page. By contrast, a footer is at the bottom of a page in an electronic document or hard copy.

What is the difference between a header and a beam?

Houses typically have one or more main beams supporting the joists that make the first-floor structure. … These beams are called headers. Non-load-bearing walls containing openings (or windows or doors) also may have beams or headers, but these are much smaller than load-bearing beams.

What is a rim joist on a deck?

In the framing of a deck or floor system, a rim joist is attached perpendicular to the joists, and provides lateral support for the ends of the joists while capping off the end of the floor or deck system. … It is also confusingly called a header (header also refers to other framing components) or rim board.

Article first time published on

How do I add flashing to an existing deck?

To add flashing, first remove the deck board that runs alongside the house. If the boards run diagonally, snap a chalk line 5-1/2 in. from the house, then set the blade in a circular saw to the depth of the decking boards and cut off the board ends. (Replace the cutouts at the end of the job with a 5-1/2-in.

What are deck support beams called?

Beams, also called girders, are deck components that support the frame of the deck. Beams are installed alongside the rim joists (joists at the perimeter) or below the joists to support the frame of the deck.

What is deck banding?

Sometimes the band consists only of a piece at the end of the joists where you just made your final cut. Usually, however, for sake of appearance, the band covers all outer edges of the deck and is one size (2”) wider than the joists so that it acts as a curb for the decking. … Nail the bands to the joists with 6d nails.

What are the parts of a deck railing?

A wooden porch railing consists of five basic parts: posts, top rails, bottom rails, balusters and railing cap. Other decorative elements may be added, such as post caps, but are not necessary for a basic, sturdy design. The posts attach to the deck and provide the support for the entire framework.

What size header do I need for a 20 foot span?

In general terms, joist or beam which spaced 16 inches apart on Centre can span 1.5 times in feet their depth in inches. A 2×14 can span upto 20 feet.

What is the maximum span for a 2x8 header?

Depending on various factors, the maximum span for a 2×8 floor joist is 16′ 6”. The maximum span for roof rafters is 23′ 9”. For headers, the maximum span is 11′ 2”.

How do you create a header?

Go to Insert > Header or Footer. Choose from a list of standard headers or footers, go to the list of Header or Footer options, and select the header or footer that you want. Or, create your own header or footer by selecting Edit Header or Edit Footer. When you’re done, select Close Header and Footer or press Esc.

What size header do I need for a 36 door?

A typical header width with single jack studs is cut 3″ larger than the rough opening. An example: A 36″ door has a rough opening width of 38″ so your header is cut at 41″.

What type of wood for headers are best?

The size of the header will be determined by the span of the door, and whether or not it is a load-bearing wall. Assuming you’re using a species of wood at least as strong as No. 2 Douglas fir, a doubled 2-by-4 (4-by-4) is adequate for a load-bearing opening of 48 inches or less.

How far can a 2x10 header span without support?

How Far Can a 2×10 Beam or Header Span? A 2×10 beam – made up of two 2x10s nailed together – can span up to 11′ without support beneath a deck that is 4′ wide. For a more normal-sized deck, the same beam can span 8′, supporting a deck that is 8′ wide.

What is the difference between a header and lintel?

The lintel is a horizontal structural beam that extends over an opening, like between the heights of a door or window, and keeps the wall at the top. A header is a brick that lays sideways at the top of a wall with the short side facing outward.

What is the stone above a door called?

A lintel or lintol is a type of beam (a horizontal structural element) that spans openings such as portals, doors, windows and fireplaces. It can be a decorative architectural element, or a combined ornamented structural item.

What are lintels above windows?

A lintel is a type of structural support used in buildings. They are installed horizontally above opening such as doors and windows to support the load of the structure above. Lintels can be made of bricks, concrete, timber or metal.

Do joists need to be on top of beams?

You typically need to hang a joist if the top of it needs to be in the same plane as the beam that supports it. … My go-to source of information for all things dealing with joist hangers and other metal structural connectors is Simpson Strong-Tie.

What is the difference between a girder and a header?

In residential construction, a girder is a member supporting the floor joist or sub-floor. Header: A structural member placed horizontally over a window, door or other framed opening to carry the load over that opening.

What's the difference between a stud and a joist?

Wall studs are support beams in your home’s walls, they’re typically 16 to 24 inches apart. … Joists are the support beams in your floor and ceiling. You need to find these if you want to hang light fixtures, ceiling fans or fix squeaky floors.

What is header and when should it be used?

A header is the top margin of each page, and a footer is the bottom margin of each page. Headers and footers are useful for including material that you want to appear on every page of a document such as your name, the title of the document, or page numbers.

What is a header section?

The header is a section of the document that appears in the top margin, while the footer is a section of the document that appears in the bottom margin. … Text entered in the header or footer will appear on each page of the document.

What is the use of header file and define in C program?

Header file is a file that contains function declaration and macro definition for C in-built library functions. All C standard library functions are declared in many header files which are saved as file_name. h.

Is rim joist necessary?

Yes, if your framing a house or a deck you’ll need a rim joist. They create the edge of your floor framing and close off the open edges. For example, if your framing a 10×10 deck off the back of your house, you’ll probably be using 2×8 or 2×10 joists spaced 16 inches on center.

How do you attach decking to RIM board?

Measure and cut the rim joists to length. Set one edge of a rim joist on the beam with the top edge of the other end flush with the ledger. Fasten the boards with two 3-inch deck screws. Fasten the other rim joist the same way.
