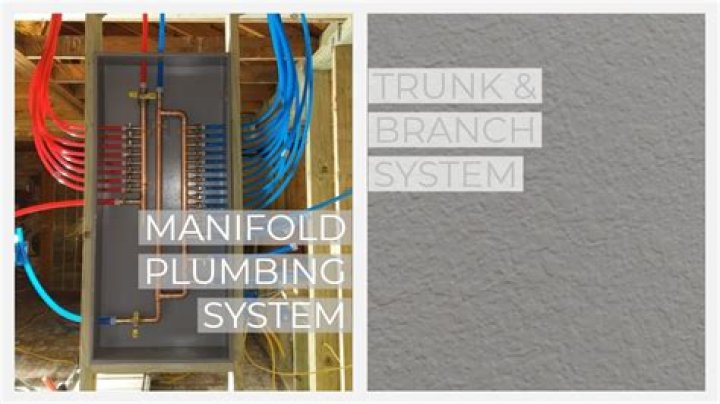

Plumbing manifolds distribute hot and cold water to appliances around the property. Pipes run from the manifold to each piece of sanitary wear (such as sinks, baths, washing machines) in continuous loops to and from the manifold so that there are no fittings in the system other than at the appliance and manifold.

What does a manifold do in plumbing?

Manifolds serve as control centers that deliver hot and cold water to flexible PEX supply lines running from the manifold to individual fixtures. Each fixture essentially has a home run to the manifold, rather than to a trunk line, as with traditional trunk-and-branch piping.

What is a manifold in a bathroom?

Shower manifolds — or valves — connect to the hot and cold or combined hot/cold water handles, but are located within the shower wall. They mix the water for either shower or tub use. … With a basic knowledge of tools and plumbing, a home owner can replace a shower manifold.

Are plumbing manifolds worth it?

Benefits of Plumbing Manifolds Modern manifolds employ safeguards that reduce the risk of pressure drop and require fewer fixtures. While copper systems are reliable and cost-effective, PEX systems are highly flexible and may be more energy-efficient. During cold snaps, they also resist freezing.

How do manifolds work?

Basically, the exhaust manifold acts as a funnel and is used to collect all of the engine’s emissions (from however many cylinders your vehicle has). Then once they are in one place and completely burnt, the manifold sends the emissions into the rest of the exhaust system.

Where is the water manifold in a house?

A water manifold takes hot and cold water and distributes it around the house using flexible piping. The manifold is located in convenient and accessible location near the water heater.

Why is PEX plumbing bad?

Potential chemical leaching is another downside of PEX piping. Due to its chemical composition, the PEX pipe material may leach toxic chemicals including bisphenol (BPA), MTBE, tertiary butyl alcohol (TBA), and others.

What is a PEX manifold system?

What is a PEX Plumbing Manifold. A PEX plumbing manifold provides a plumbing hub for modern, residential plumbing systems that distributes water to various zones throughout the home. The PEX manifold serves as a convenient control mechanism for your homes plumbing system.

Do I need PEX manifold?

Do I Have to Use Manifolds with PEX? No. You can install PEX fittings supply just like you would other pipe, with main lines and branches to each fixture. … But they actually simplify plumbing runs and reduce possible leaks by eliminating the need for tees and other fittings between the main supply line and the fixture.

Where is a manifold located?

Bolted directly to the engine block, the exhaust manifold is the first section of a vehicle’s exhaust system. It funnels exhaust gases from all the cylinders and routes them to the car’s catalytic converter.

Article first time published on

What is a manifold in a heating system?

Manifolds are essentially the control hubs for central heating systems, specifically underfloor heating (UFH). Their main purpose is the water distribution of hot/cold pipes within radiant heating and cooling systems.

How do central heating manifolds work?

The manifold works by controlling the flow of hot water throughout the entire underfloor heating system. This helps to maintain a comfortable and even temperature across your floor, and keeps your home warm.

What is better PEX or copper?

We generally belive that Plumbing PEX Tubing is much better than Copper for most, if not all, plumbing systems. … PEX Tubing is much more resistant to freeze-breakage than copper or rigid plastic pipe. PEX Tubing is cheaper because it takes much less labor to install. PEX Tubing is quickly becoming the industry standard.

Is PEX safe for drinking water 2021?

With a plumbing-pipe offering in sizes up to 3 inches, PEX is challenging traditional copper and CPVC materials for domestic water applications. … This provides confirmation the pipe does not leach harmful substances into drinking water and is safe for potable systems in healthcare facilities.

Can rodents chew through PEX?

Mice and rats will chew through anything they can, including plastic, so PEX tubing is at just as much risk as the plastic-coated wiring in a car or an HVAC unit. While all rodent damage can be expensive, if rodents chew through a home’s PEX water pipes, the result can be disastrous.

Is PEX safe for drinking water 2020?

The inner pipe for drinking water is made of a plastic called cross-linked polyethylene (PEX). … There are no health risks associated with drinking water from PEX pipes. A few types of PEX-pipe may cause prolonged undesirable taste and odour if the water remains in pipes over time.

How much does a PEX manifold cost?

Pipe MaterialCost Per FootCPVC$0.50 – $1PEX$0.50 – $2Copper$2 – $4

Can PEX be used in heat pipe?

Yes, PEX pipe is approved for radiant or hydronic heating applications. Since ferrous components are likely to be present in the system, it is important to use oxygen barrier PEX pipe to help prevent ferrous components from rusting.

Can you replace shower faucet without removing tile?

Does the Repair Require Tile Replacement? … This may require some cutting or removal of the tile around the shower valve opening to access the leak. While your plumber will take great care to cut or remove only enough tile as necessary, you could face some minor tile repair depending on the size of the opening.

What type of shower handle do I have?

Assess the faucet and determine how many handles it has. If it has two handles, it is a double-handle faucet, which means that the hot and cold water pipes each connect to separate handles. If it has one handle, it is a single-handle faucet. If the faucet has three handles, it is a rare three-handle model.

Can I make my own PEX manifold?

Manifolds can be purchased, but there are clear advantages to building your own from off-the-shelf parts, as outlined in this article. Think of a PEX manifold as the plumbing equivalent of a main electrical panel. … I prefer to make a pair of homemade manifolds—one hot and one cold—from off-the-shelf parts.

What is a manifold in engineering?

Engineering. Manifold (fluid mechanics), a machine element used to split or combine a gas or liquid. Hydraulic manifold, a component used to regulate fluid flow in a hydraulic system, thus controlling the transfer of power between actuators and pumps.

What is a manifold mathematics?

manifold, in mathematics, a generalization and abstraction of the notion of a curved surface; a manifold is a topological space that is modeled closely on Euclidean space locally but may vary widely in global properties.

What are the disadvantages of PEX?

• PEX may leach BPA and other toxic chemicals. …
• PEX is extremely sensitive to UV light. …
• PEX can be damaged by chemicals and pests. …
• PEX can’t be installed in high heat areas. …
• PEX is semi-permeable, which means liquid can enter the pipe.

What are the 3 stages of plumbing?

• Underground rough-in phase.
• Aboveground rough-in phase (top-out or stack-out)
• Finishing phase (Trim-out or trim finish)

What are two main things that must be considered when designing a plumbing system?

• WATER TYPE. Depending on where you live, the water going through your pipes may be corrosive. …
• PLUMBING USE. …
• SOIL CHARACTERISTICS. …
• EXPOSURE TO SUNLIGHT.

What are basic plumbing skills?

• Accessing Confined Spaces.
• Applying Adhesives, Sealants, and Caulk.
• Cleaning Sewer Lines.
• Hand and Arm Strength.
• Installing Appliances Like Refrigerators, Dishwashers, Water Softeners, and Water Heaters.
• Installing Pipe Systems for Gas, Water, Steam, and Other Liquids.
• Manual Dexterity.
