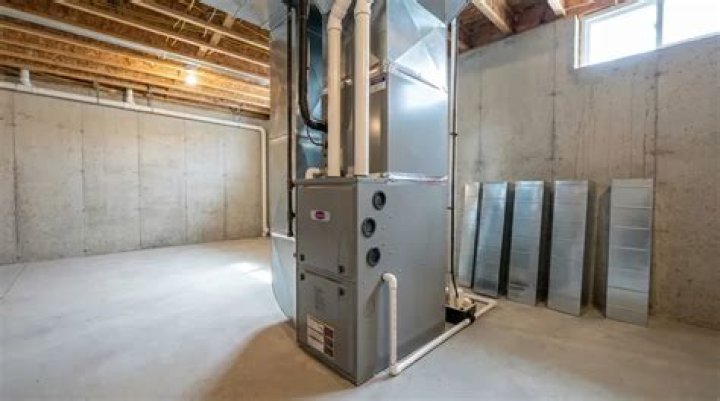

A multi-position furnace is provided that can be positioned for downflow operation, upflow operation, left horizontal flow operation, or right horizontal flow operation without major modifications in the field.

What are the 4 categories of furnaces?

There are four main types of furnaces: natural gas, oil, electric, and propane. Electric furnaces can heat the air by exposing heated elements, while other types of furnaces typically require a heat exchanger or chamber that warms the surrounding air.

What are multiple furnaces called?

The Quick Answer. The plural of furnace is furnaces.

What is the difference between updraft and downdraft furnace?

The primary difference between an updraft and downdraft unit is where you can install them. The updraft unit is common and works best if you can place the system in your garage or basement. … A downdraft unit is used when there is no basement space, but the house has enough attic space to accommodate the system.

How do I know if my furnace is upflow or downflow?

Getting right to it, the fundamental difference between the two is in the direction of air flow in and out of the furnace. A Upflow furnace takes in existing air from the bottom of the furnace and blows out filtered warm/cool air through the top. A downflow furnace works in the opposite way.

How do I know what kind of furnace I have?

Take a quick look at your furnace unit. Check for either gas pipes or electrical wiring, which should give you an indication of which kind of furnace unit you have.

Is a 2 stage or single stage furnace better?

The ability to switch between two power modes makes two-stage furnaces more energy-efficient than their single-stage counterparts. The low power mode allows the unit to conserve energy as well as reduce temperature fluctuations and uneven heating in your home.

Can you put a furnace in upside down?

A: Short answer: New models of furnaces allow this upside-down installation. … Cool air is pulled into a forced-air furnace through what we refer to as the “return” system of ducts. The furnace heats the air, and pushes it out through the “supply” side of the system, on the opposite end of the furnace.

What does upflow horizontal furnace mean?

These terms refer to the direction the air flows as it is taken in and heated by the furnace. So in an upflow furnace, the cool air is taken in at the bottom, warmed, and then expelled at the top. A downflow furnace, on the other hand, takes in cool air at the top and expels heated air at the bottom.

Which way is the airflow on my furnace?

Stand in front of the furnace and look for the ducts. Pull the old filter out and discard it. On the new filter, find the arrow indicating the proper airflow direction. The arrow must face toward the furnace and away from the return duct that pulls the air in need of heating or cooling.

Article first time published on

How does a multi-speed furnace work?

Variable speed furnaces are able to run at a range of speeds, rather than one speed as traditional furnaces do. The differing speeds control heating and cooling airflow through the home. Throughout operation, the furnace monitors incoming data from your HVAC system to automatically make blower motor speed adjustments.

What is a 2 stage multi-speed furnace?

Two stage furnaces, also known as two speed furnaces, operate much more efficiently than a single stage furnace. The first stage of this type of furnace operates the majority of the time in most climates, and runs at about 65% of the furnace’s full capacity.

How does a multiple hearth furnace work?

The multiple hearth furnaces consist of several circular hearths or kilns superimposed on each other. Material is fed from the top and is moved by the action of rotating “rabble arms”, and the revolving mechanical rabbles attached to the arms move over the surface of each hearth to continuously shift the ore.

Can any furnace be installed horizontally?

Up-flow/horizontal and down-flow/horizontal furnaces can be installed horizontally, but the airflow direction in them can’t be changed. … These furnaces and air handlers can be installed either horizontally or vertically, and the air flow can be changed to fit the home’s needs.

What is an upflow?

Upflow furnaces blow heated or cooled air upward and are installed in the lowest level of your home. An upflow furnace is the best choice in cold climates where it is used for heating more than for air conditioning.

Is my furnace under the house?

Typically, your furnace is centrally located in the home. You can usually find it in an area such as a utility closet (by a cold air return), a garage, an attic, basement, or crawlspace.

Is a variable speed furnace worth the extra money?

A high-efficiency variable speed furnace can reduce your utility bills. … Higher rated furnaces save you money because they use less power while heating your house to the same temperature. Additionally, variable speed furnaces are more efficient than traditional models.

How much money does a 2 stage furnace save?

The DOE test procedure shows fuel savings of 3.4% for two-stage furnaces relative to single-stage furnaces at the same AFUE, while the 2006 ASHRAE test procedure shows only a 0.4% decrease in fuel consumption.

What is the best furnace for a home?

• American Standard Furnaces.
• Amana Gas Furnaces.
• Bryant Furnaces.
• Carrier Furnace Units.
• Daikin Furnaces.
• Goodman Gas Furnaces.
• Lennox Furnace Units.
• Rheem Furnaces.

What are the three types of heating systems?

• Furnaces. Furnaces are the modern evolution of that same heating technology used since the dawn of time: burning fuel to create heat. …
• Heat Pumps. The terms “heat pump” and “furnace” are often used interchangeably, but this is a mistake. …
• Boilers. …
• Elsewhere on Our Blog.

How do I know what size furnace I need?

1. Calculate the square footage of your home. …
2. Find out What Climate Zone Your Home Is In Climate is another factor that helps determine how many BTUs you need to heat your home. …
3. Multiply your square footage by 40, the lower number recommended for the climate zone.

How can I tell if I have a 2 stage furnace?

• 2-stage conventional heating will have wires leading into the W1 and W2 terminals.
• 3-stage conventional heating will have wires leading into the W1, W2, and W3 terminals.
• 2-stage conventional cooling will have wires leading into the Y1 and Y2 terminals.

How does a horizontal furnace work?

A horizontal furnace is designed with the components in a horizontal row, so the unit looks like it’s lying on its side. Cool air flows in on one side, and heated air flows out the other. These furnaces are designed as either “horizontal left” or “horizontal right,” referring to the side the heated air comes from.

Can a universal furnace be used as a downflow furnace?

An upflow / horizontal furnace can be configured as either an upflow furnace, or a horizontal (left or right) furnace. It cannot be installed as a downflow furnace.

How do I know if my house has negative pressure?

With the house operating at what you suspect is a negative pressure, go to a door and open it just a bit. If you stand inside and put your face near the crack in the door, you’ll feel the air blowing on you if there’s a negative pressure.

Where does the evaporator go on a downflow furnace?

In a downflow furnace application, the air conditioner evaporator coil will sit below the furnace. In most applications, the furnace air filter will reside above the furnace, and the evaporator coil will sit near the ground or floor.

Can you install an air handler upside down?

If the air handler can be configured for a downflow installation, then yes. There are air handlers that are designed to be turned upside down. There are others that require a downflow kit. Consult the installation manual for details.

What happens if you put the air filter in the wrong way?

If you install your filter in the wrong direction, air will have a hard time flowing through the filter’s material and your air handler will have to work overtime to make up for the loss of airflow. This is not only a waste of energy, but it can also possibly damage your air conditioner or heating system.

Does the arrow point up or down on an air filter?

For any air filter, whether it be for an air conditioner or a furnace, the ARROWS ALWAYS POINT IN THE DIRECTION OF AIR FLOW. When you install a new air filter into the AC return duct, the arrows face inward to specify which way the air is flowing.

Does a variable speed furnace always run?

You have a variable speed furnace. A variable speed air handler runs almost all the time, albeit typically at a low setting that is much quieter than the higher setting that’s used during heating cycles.

What is the difference between 2 stage and variable speed?

A two-stage furnace has low and high stages of operation. During the low stage, the furnace uses as little energy as possible to heat your home. … A variable-speed furnace contains a computerized blower motor chip that monitors the airflow inside your home to determine how much heat to generate and release.
