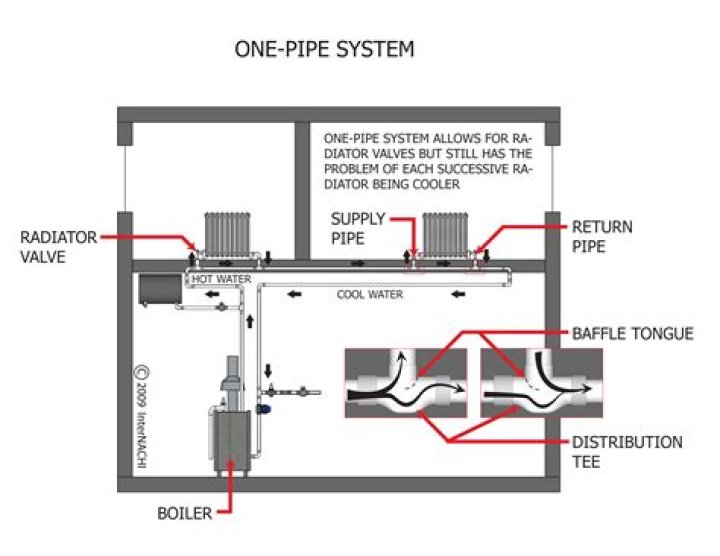

In a one-pipe heating system all radiators are connected to the same pipe, which acts as both flow pipe and return pipe. This means that the temperature decreases along the pipe. For this reason, the radiators along the pipe line should increase in size correspondingly to provide the same heat output.

What is the difference between one pipe and two pipe heating system?

With a single pipe system the water is directed through each radiator in turn along the heating circuit. … However, with a two pipe central heating system each radiator has a flow and return path so water will mainly flow through the radiators at the beginning of the circuit unless the system is ‘balanced’.

Can you run a combi boiler on a one pipe system?

A one pipe system is ok for a combi boiler although it does have pitfalls. … Modern boilers require a constant flow rate so any blockages will cause the boiler to overheat and cut out fairly quickly.

What are the benefits of the one pipe system?

One-pipe system with vertical distribution The water is distributed from above from the horizontal distribution pipe. A single air vent is sufficient at the top. Since there is only one pipeline to the radiators, the system is visually more acceptable. This is an advantage in a system where the pipes are exposed.

How do you bleed a one pipe heating system?

1. Turn your heating on. …
2. Identify which radiators need bleeding. …
3. Turn off your heating and wait for the radiators to cool. …
4. Place a cloth below the radiator bleed valve. …
5. Open the valve and release the air. …
6. Close the valve. …
7. Check the boiler pressure.

What are the disadvantage of two pipe system?

The two-pipe system’s main limitation is its lack of operating flexibility. Depending on the facility’s needs, the system’s hydronic piping circuit that runs throughout the building must connect to the boiler or the chiller.

Can you power flush a one pipe system?

Can you power flush a single pipe system? A. If the radiators on a single pipe system have severe deposit build-ups, or cold panels, then the power flush is not likely to be successful. BS7593:2006 advises against power flushing a single pipe system.

What is two pipe system?

two-pipe system (dual system, dual-pipe system) An above-ground drainage system that comprises two discharge pipes; one that discharges the soil, and another that discharges the waste. … …

What is single feed system?

A single feed cylinder incorporates a multi purpose heat exchanger. As well as heating the potable water it also acts to top up the primary circuit which is the water that circulates in your radiators.

How does a one pipe system work?

A one pipe system sends the pumped water to each radiator in turn, and returns the water from the last radiator on the run. … This inevitably lead to a very unbalanced system, where the radiators nearest the boiler would be extremely hot and the final radiators on the system tepid at best.

Article first time published on

How many pipes are there in a one pipe system?

2) One pipe system:- In this system, instead of using two separate pipes(for carrying sullage and night soil, as it done in the above described two pipe system), only main vertical pipe is provided which collects the night soil as well as the sullage water from their respective fixtures through the branch pipes.

What is one pipe system in plumbing?

In this system of plumbing the waste connections from sinks, baths, washbasins, and the soil pipe which is connected directly to the drainage system. Gully traps and waste pipes are completely dispensed with. d) The waste pipe should join the stack, above the soil branch at each floor. …

What is one pipe and two pipe system?

Two Pipe System. One pipe collects the foul soil and water closet wastes, and the second pipe collects the water from the kitchen, bathrooms, house washings, etc. The soil pipes are directly connected to the manhole/drain, where is the waste pipes arc connected through a fully ventilated gully trap.

How many pipes are connected to a combi boiler?

You will find seven pipes attached to the boiler: A gas supply pipe. Mains cold water inlet.

Why is 1 radiator in my house cold?

Why is one radiator cold when the heating is on? One cold radiator usually indicates that either there is air in the system or there is a stuck valve within that radiator. … To check if the valve is stuck, you can remove the rotatable head on the TRV to reveal a raised pin beneath it.

Do you let all the water out when bleeding a radiator?

Yes, it is perfectly normal for water to escape when a radiator is bled. You’ll likely notice some drips emerging when initially turning the bleed screw in an anti-clockwise direction. And water would pour out once the air was released, if the valve was to be opened fully.

Why do I have to keep bleeding my radiators?

All radiators require bleeding to remove air bubbles that form periodically during the life of a system. … When radiators are not working properly, or when they are not putting out as much heat as they should, some parts of the house will be colder than others.

How do I know if I have a Primatic cylinder?

The bubble is compressed and changes position. If you have a cold water storage cistern, a hot water cylinder, and a boiler, but no feed and expansion tank or expansion vessel, it’s quite possible that you have a primatic cylinder.

Can power flush cause leaks?

A powerflush is a way of cleaning the system quickly and once. You’ll need to do it year after year and it’ll never clear all the crud. Powerflushing also places extreme pressure on the system and can cause leaks easily.

How long does it take to power flush a heating system?

Usually, a Powerflush can take up to around 8 hours to perform, however on particularly complicated systems, it could take up to 2 days.

What is the advantage to a two-pipe system direct return?

Advantages. The advantage with the two-pipe reverse return system is that the pipe run to each radiator is about the same, this ensures that the frictional resistance to the flow of water in each radiator is the same. This allows easy balancing of the system.

What is a 2 pipe fan coil system?

A 2 Pipe Fan coil system is a single closed loop supply and return water distribution system that serves each suite. The building has a central chiller and cooling tower to cool the water in the loop and a Boiler to heat the water in. the loop.

What is a 4 pipe HVAC system?

The 4-pipe HVAC system has two supply and two return pipes for both heating and cooling. That means that the heating and cooling coils have separate hydronic piping. You can simultaneously heat and cool a single condo, which allows for dehumidification.

Why do radiators have two pipes?

A second pipe (called the ‘return pipe’) collects the cooled water from the radiators and carries it back to the boiler for re-heating.

What are the two pipes on a radiator?

The two-pipe system consists of – you’ve guessed correctly – two separate pipes: one that feeds hot water to the radiators and one that conveys used water back to the boiler. In other words, the radiators are installed in parallel.

How does a single feed indirect cylinder work?

The Single Feed system incorporates a storage cylinder with a special heat exchanger that uses air entrapment to separate the secondary water from the primary (heating) water. Because the cylinder only requires a single cold feed, it is installed in the same way as a direct hot water storage vessel.

What is most commonly used in single stack system?

Single stack system with stack aerator A single stack system with stack aerators is always composed of three elements: A stack aerator on each floor. A pressure relief line at the base of the stack. Venting through the roof.

What is single stack system?

An above-ground drainage system that comprises a large-diameter single vertical-discharge stack that conveys both soil and wastewater to the drain, as well as providing ventilation.

What is the best pipe for central heating?

Copper and Plastic pipes can be combined, so you get the best of both worlds. Using Copper Pipe in places best for Copper and using Plastic pipe in places more suited to plastic. Let’s use a new central heating installation as an example. We will use copper pipe to connect to your boiler and radiators.

How much does it cost to replace central heating pipes?

For a four-bed house, you can expect to spend around £5,000 for central heating installation. For a boiler and installation, you can expect to pay around £1,300 – £2,000. For a house this size, you’d need around ten radiators, which would cost you around £1,500 to install (including parts).

What is the difference between single and dual stack pipe system in plumbing?

Modern homes tend to have a single-pipe system which involves one vertical large-diameter pipe (called a soil stack) running inside the property. In older more traditional homes, it involves a dual-pipe setup. Wastewater and soil water are taken separately to the public sewer system.
