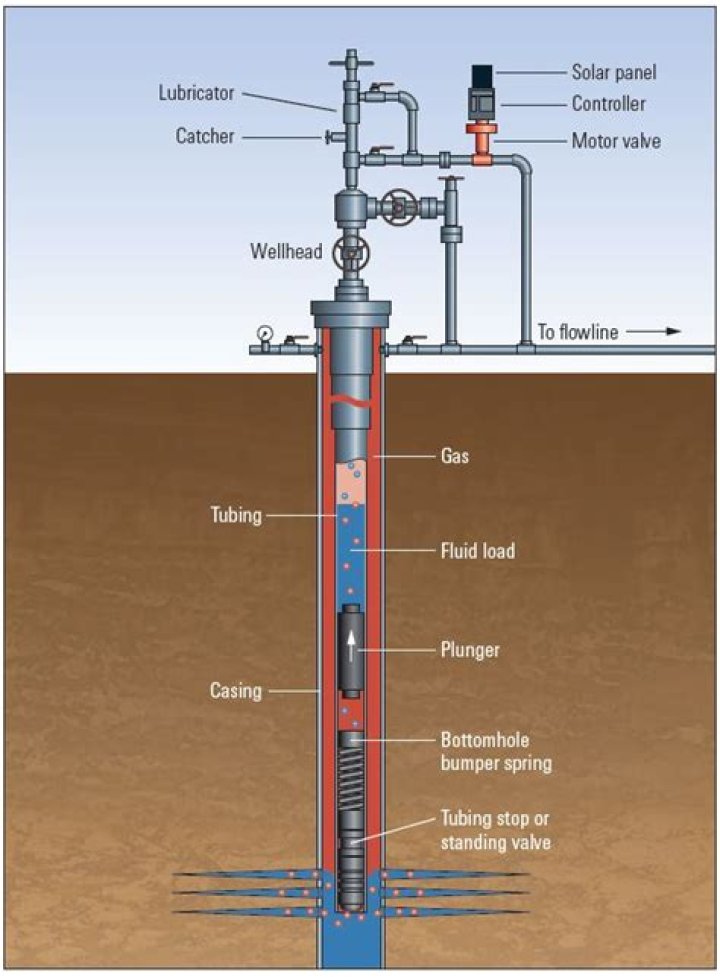

A plunger lift system is a form of intermittent gas lift that uses gas pressure buildup in the casing-tubing annulus to push a steel plunger, and the column of fluid ahead of it, up the well tubing to the surface.

Why is plunger lift considered one of the simplest form of artificial lifts?

Production engineers consider plunger lift to be one of the simplest forms of artificial lift because it uses the well’s own energy to remove accumulated liquids and sustain gas production.

How does artificial gas lift work?

Gas lifts use the artificial lift method by injecting gas into the production tubing to raise water or oil. The gas injected is high-pressure gas by adding bubbles of compressed air and vapor. … It shows the gas being injected, entering the gas lift valves, and allowing fluids to begin flowing again.

What is a plunger lift in the oilfield?

1. n. [Well Completions] An artificial-lift method principally used in gas wells to unload relatively small volumes of liquid. An automated system mounted on the wellhead controls the well on an intermittent flow regime. When the well is shut-in, a plunger is dropped down the production string.

How does a jet pump work in an oil well?

In a jet-pump lifting system, the pump is run downhole with no need for a rig. At the surface, the power-fluid system uses a multiplex pump to pressurize and inject power fluid into the wellbore. The fluid travels downhole through the jet pump to the nozzle, which reduces the fluid pressure using the Venturi effect.

What is an artificial lift system?

Artificial lift is a process used on oil wells to increase pressure within the reservoir and encourage oil to the surface. … The most common type of artificial lift pump system applied is beam pumping, which engages equipment on and below the surface to increase pressure and push oil to the surface.

How do electric submersible pumps work?

Electrical submersible pumps (ESPs), much like vertical turbine pumps in design, are typically used to pump liquid. Essentially, an electric motor drives the pump, and the fluid’s kinetic energy is increased. This energy is then partly converted into pressure, which lifts the fluid through the pump.

What is completing a well?

Well completion incorporates the steps taken to transform a drilled well into a producing one. These steps include casing, cementing, perforating, gravel packing and installing a production tree. … After a well has been drilled, should the drilling fluids be removed, the well would eventually close in upon itself.

Why we use artificial lift methods?

Artificial lift is a method used to lower the producing bottomhole pressure (BHP) on the formation to obtain a higher production rate from the well. … Artificial lift can be used to generate flow from a well in which no flow is occurring or used to increase the flow from a well to produce at a higher rate.

What is the process of hydraulic fracturing?

Hydraulic fracturing, or fracking, is a drilling method used to extract petroleum (oil) or natural gas from deep in the Earth. In the fracking process, cracks in and below the Earth’s surface are opened and widened by injecting water, chemicals, and sand at high pressure.

Article first time published on

What is an ESP oil and gas?

The electrical submersible pump, typically called an ESP, is an efficient and reliable artificial-lift method for lifting moderate to high volumes of fluids from wellbores.

How do gas lift mandrels work?

A gas-lift valve is a device installed on (or in) a gas-lift mandrel, which in turn is put on the production tubing of a gas-lift well. Tubing and casing pressures cause the valve to open and close, thus allowing gas to be injected into the fluid in the tubing to cause the fluid to rise to the surface.

What are the disadvantages of gas lift method?

The disadvantage of intermittent-flow gas lift is the “on/off” need for high-pressure gas, which presents a gas-handling problem at the surface and causes surging in the flowing bottomhole pressure that cannot be tolerated in many wells producing sand.

Which gas is injected in gas lift?

What is Gas Injection? Gas Injection is an enhanced oil recovery method. Inert gases, typically nitrogen or carbon dioxide get pumped into an injection well. This creates higher pressure that filters through the reservoir formation and pushes hydrocarbons out from low pressure, or isolated areas.

What is power fluid in jet pump?

A pump at the surface moves a pressurized fluid called a power fluid—typically refined oil, water or a mixture of oil and produced water—downhole through tubing to the jet pump, where the fluid flows through a nozzle in the nose of the pump.

What is Hydraulic jet pump?

Hydraulic jet pumps are a proven means of artificial lift that have been used for generations in the production of oil and gas. Normally they are utilized for high volume initial production and well unloading with high rates as an alternative to gas lift systems or electric submersible pumps (ESPs).

Can a submersible pump run continuously?

Can Submersible Pumps Run Continuously? Yes, you can run a submersible pump continuously for as long as you require if you have the suitable source of water. … Running the majority of submersible pumps dry can cause significant damage to the inner motor and components.

How do you calculate stages of a submersible pump?

The submersible pump stage calculation tells you how many stages are required. You find it by dividing the total dynamic head (TDH) by the length of each stage. The TDH is the equal to the sum of the pumping level, head length, drop pipe friction loss and check value friction.

Why does my submersible pump keep tripping out?

One common cause of a submersible pump tripping its breaker can be cracks or leaks in the housing. If your pump’s housing is cracked, water could be getting into the pump through these cracks and causing it to short circuit. The same can be happening if you have a leak in your pump which is letting water in.

Why do we prefer gas lift in gassy wells?

If sufficient gas is readily available at a suitable pressure, gas lift is typically the artificial lift method of choice. … Some common advantages and disadvantages of gas lift are: Excellent flexibility in injection/production rate. Excellent gas handling (obvious applicability for gassy wells)

How do you choose artificial lift method?

The selection of the artificial lift method is one of the most important process for achieving economically efficient production. Choosing the optimal method is done by taking into account the parameters of reservoir and fluids, well type, environmental conditions, and economic factors (capital and operational costs).

When would artificial lift be required for a well?

Artificial lift is needed in wells when there is insufficient pressure in the reservoir to lift the produced fluids to the surface, but often used in naturally flowing wells (which do not technically need it) to increase the flow rate above what would flow naturally.

What is the hydraulic lift?

A hydraulic lift is a device for moving objects using force created by pressure on a liquid inside a cylinder that moves a piston upward. … Hydraulic systems are used for precision control of large force applications, are economical, and make excellent use of energy resources.

What is a rod pump?

Rod pumps are the most common form of artificial lift for oil wells. Today, these systems are used to lift formation fluids from more than 600,000 wells. A rod pump system consists of a prime mover, a surface pump, a sucker rod string and a downhole pump (Figure 1).

Why can liquids and gases be used in hoses for lift systems but solids can t?

Hydraulics works because of a simple principle: you can’t compress a liquid. Gases are easy to compress, as you do when you squeeze a balloon. Solids are just the opposite, it’s very difficult to compress a block of metal or wood with your fingers. … Liquid in a pipe behaves this way as well.

What is open hole well completion?

Open hole completion means that the oil reservoir is completely exposed during completion of a straight or horizontal well. There are two types of procedures for open hole completion. 1. After drilling to the top of the oil reservoir, the intermediate casing is run in and the well is cemented.

What is liner completion?

Liner completions are similar to open hole completions in that casing must be set prior to drilling the producing interval. The advantage of a liner completion is that the drilling fluid system can be changed and a nondamaging fluid used to drill the pay interval.

What is cased hole completion?

Cased and perforated wells are completed by first drilling through the reservoir (or sometimes a little deeper than the bottom of the reservoir). The production casing is then run and cemented in-place. Next, the tubing string is run, and all packers are set.

What are 5 steps in the process of fracking?

1. Preparation. Preparing a drilling site involves ensuring that it can be properly accessed and that the area where the rig and other equipment will be placed has been properly graded. …
2. Drilling. …
3. Well Completion. …
4. Production. …
5. Well Abandonment.

What 3 components make up fracking fluid?

In general, hydraulic fracturing fluid is composed of water, proppant (typically sand), and chemicals. A public website known as FracFocus has been established by industry that lists specific materials used in many, but not all, hydraulically fractured wells.

Why is fracking better than drilling?

Fracking uses fracking fluid to further expand the pockets of shale to enable the extraction of more oil and natural gas resources, while drilling simply pulls from the oil and natural gas readily available in the reservoir.
