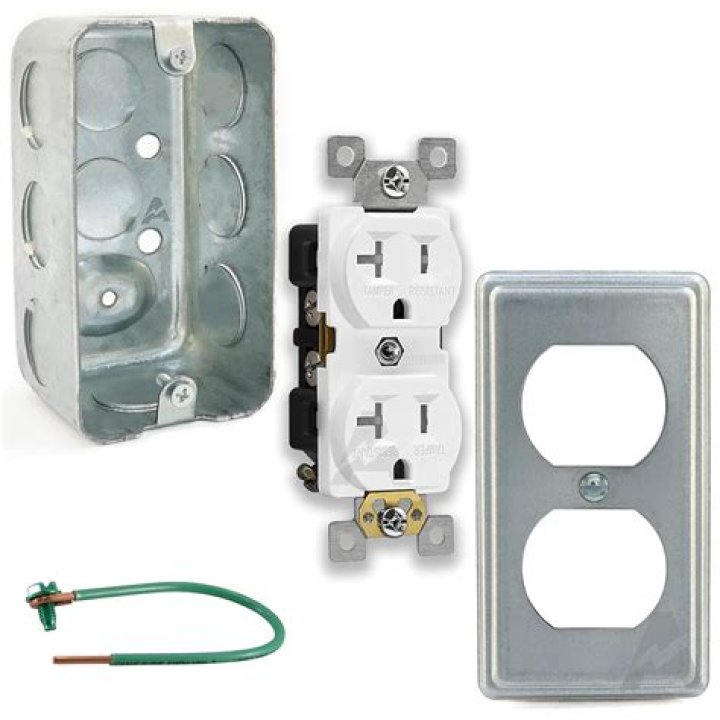

Like standard rectangular boxes, these are used to hold household switches and electrical outlets, but they are oversized so that two, three, or four devices can be mounted side-by-side. Like other boxes, these come in a variety of “new work” and “old work” designs, some with built-in cable clamps.

Is a junction box a receptacle?

They can contain light switches, wires or outlets. … Junction Box: Wires connect only to each other, never to a switch, receptacle or fixture. Allows circuits to safely split and branch into different directions. New Work Box: Installed as part of a new construction project.

Are outlet and switch boxes the same?

They often run wires from the switch to a remote outlet, but there’s no reason why the switch and outlet can’t be in the same electrical box. … If you want the switch to control the outlet, you can buy a switch-outlet combo that fits a single-gang box. These units feature only a single outlet.

Do receptacles need to be in a box?

Electrical codes generally require that all electrical devices, and the wiring connections to those devices, must be enclosed in an approved electrical box. Often known as a junction box, this metal or plastic box includes a cover to protect the wiring within and protect you from the wiring.

Are junction boxes safe?

Junction boxes are designed to protect your wiring connections from damage. Making electrical connections outside of a junction box will damage the wiring and increase the risk of heat and sparks.

Why are electrical outlets so low?

Cord connected appliances and lamps are plugged into residential outlets by UNTRAINED personnel. The outlet is placed at a low elevation to reduce the potential tripping hazards that the cords connected to the wall and appliance will pose for people walking around these objects.

Can you extend electrical wire without junction box?

Short answer: NO. Long answer: All splices must be in a junction box, and the junction box must be accessible.

When would you use an electrical junction box?

You’ll need a junction box if you can’t make the connections inside an existing electrical box. You should install the box with the opening facing out from the wall so all the wires inside are accessible. Like any electrical box, it should be installed so that the edge of the opening is flush with the wall.

Does every wall need an outlet?

The US National Electrical Code, Section 210.52, states that there should be an electrical outlet in every kitchen, bedroom, living room, family room, and any other room that has dedicated living space. They must be positioned at least every twelve feet measured along the floor line. … The US NEC also advises on type.

Can a switch box be used for an outlet?

The total volume of a box is the space in the box to fit conductors and wiring devices. … The number of gangs that a box has refers to how wide it is and how many devices such as outlets, switches, and dimmers can fit in the box. A single gang, or one-gang, box is wide enough for one device, such as a switch or outlet.

Article first time published on

What is the difference between old work and new work electrical boxes?

New work boxes, designed to be installed just after the wall is framed but before the surfaces are finished with drywall. They attach to studs. Old work (also called retrofit) boxes, designed to be installed after the walls are finished and are used during remodeling projects. They attach to drywall or plaster.

How many wires can be in an outlet box?

Each switch, outlet, or other device counts as two wires.

How do you replace a receptacle box?

1. TURN OFF POWER AT THE CIRCUIT BREAKER BOX. Turn off power at the circuit breaker panel box. …
2. MARK THE DRYWALL FOR THE NEW BOX. …
3. CUT THE DRYWALL. …
4. LOOSEN THE OLD OUTLET. …
5. FEED THE CABLE TO THE OLD BOX. …
6. CONNECT THE WIRES IN THE OLD BOX. …
7. MOUNT THE REMODELING BOX. …
8. WIRE THE NEW OUTLET.

Can I put a junction box behind drywall?

The cables are secured to the box with cable clamps (or conduit connectors, if the circuit includes conduit), and the box must have a removable cover to create a complete enclosure. Junction box covers must remain accessible; they cannot be covered with drywall or other surface material.

Should I ground metal outlet box?

Metal-sheathed wiring depends on bonding with the metal electrical box for grounding. Using metal-sheathed wiring with plastic electrical boxes, without taking other grounding measures, severs that ground and is highly dangerous.

Can a junction box be buried in a wall?

A junction box, also known as a splice or switch box, is an electrical enclosure inside your home that contains wiring. … It is a safety hazard to completely bury a junction box in a wall.

How do I make my Romex last longer?

Twist the black wire end around the existing black wire connection with the lineman’s pliers. Replace the wire nut and be certain no bare copper shows after the wire nut is in place. After you replace the junction box cover plate, the new Romex circuit is ready to be connected at the other end, extending the circuit.

Can you splice Romex in Wall?

The only condition is the splice has to be fished, meaning you cannot legally use this splicing device where there is no drywall yet installed because the NEC expects you in this case to use a proper junction/outlet box, so the splice can later be accessed.

Do light fixtures require an outlet box?

If you’re wondering how you install a light fixture without an electrical box, the short answer is that you don’t. … You can’t install a light fixture without a junction box, but the fact that there’s no box at the spot where you want to install the light doesn’t mean you can’t install the light.

Why are outlets near the ground?

A grounding wire is connected separately to each outlet, and then is connected to the bottom of the breaker box. This grounding wire neutralizes any dangerous electrical current into the ground. … When you plugged something into a two-pronged outlet you would most likely get a shock.

What outlet has very little power?

One reason an outlet may have low voltage is that it is worn out. … Another potential reason for a low-voltage reading is that the outlet’s wires are damaged. Damaged wiring can result from an electrical surge or from a wire simply overheating and melting.

Why are plugs near the floor?

In standard industrial construction, most such outlets are placed either in walls or on poles located near machinery. In some cases, however, a floor socket is desirable because it prevents the running of cords in places where they might pose a trip hazard.

Are receptacles required in closets?

Although receptacle outlets within closets are permitted, they are not required. … Receptacles must be installed so that no point measured horizontally along the floor line in any wall space is more than 6 feet or 1.8 meters from an outlet in that space.

Are outlets allowed in baseboards?

But there is a better way. By installing electrical outlets in the baseboard molding of your home they can seamlessly integrate into a design element that almost camouflages the outlet. By doing this small detail, you can eliminate the presence of noticeable unsightly cords and wires from your home.

Do lights and outlets on same circuit?

My short answer to the question is that “Yes, lights and power outlets (a.k.a AC receptacles) can be on the same circuit controlled by a circuit breaker, especially in a single family residential house”.

Can I run power from an outlet to a light switch?

Adding an electrical outlet next to an existing light switch is easy, as long as there is a neutral wire in the box. … If there is a bundle of two white wires tied together behind the switch and two separate wires running to the switch, it will be easy to add an outlet.

What size outlet box do I need?

NEC Table 314.16 (A) Metal Electrical Boxes for Devices3 x 2 x 1 1/2“ Device Box7.5 cu. in.33 x 2 x 2 ” Device Box1043 x 2 x 2 1/2″ Device Box12.553 x 2 x 3 1/2″ Device Box188

How many receptacles can be on a 20 amp circuit?

The answer to the question how many outlets on a 20 amp circuit is ten outlets. Always comply with the 80% circuit and breaker load rule, allowing a maximum load of 1.5 amps per receptacle. Remember that your circuit, wire sizes, and outlets must be compatible to avoid overheating and electrical hazards.

How many wires can you pigtail together?

More Than Two Cables in the Box The only appropriate way to wire a receptacle in a box with three cables is to use pigtails to connect the receptacles. ​Never connect more than one wire under a single screw terminal.

Why is there 3 wires in a plug?

Three-conductor wire has two hots — black and red — and a white neutral. Though normally used for three-way switching, three-conductor wire is commonly used for duplex receptacle wiring as well. … The black or the red can go to a permanently hot feed, while the other goes to a wall switch, creating a switched outlet.
