The resistor is the part of an electrical circuit that resists, or limits, the power of an electrical current in a circuit. The resistor also helps to reduce, or lessen, the amount of electricity moving through the circuit.

What do you call a resistor?

A device used to control current in an electric circuit by providing resistance. … Mechanical variable resistors are also called potentiometers, and are used in the volume knobs of audio equipment and in many other devices. 4. An electronic component that resists the flow of current in an electronic circuit.

What is resistor and capacitor?

A resistor is an electronic component used to resist the flow of current in a circuit. It’s more like a friction which restricts energy. A capacitor, on the other hand, is an electronic component used to store electrical charge. It generally opposes changes in current in electrical and electronic circuits.

What is resistor function?

A resistor is a passive two-terminal electrical component that implements electrical resistance as a circuit element. In electronic circuits, resistors are used to reduce current flow, adjust signal levels, to divide voltages, bias active elements, and terminate transmission lines, among other uses.

What is resistor formula?

The resistance formula is as follows: Resistance = voltage drop across a resistor/ current flowing through a resistor. R = \frac{V}{I} R = resistance (Ohms, Ω) V = voltage difference which is between the two ends of a resistor (Volts, V)

What is a resistor in science?

A resistor is an electrical component that restricts the flow of electric current. … When resistors are connected in series, the total resistance of two or more resistors is the sum of their individual resistance.

What is a resistor person?

Noun. resistor (plural resistors) One who resists, especially a person who fights against an occupying army.

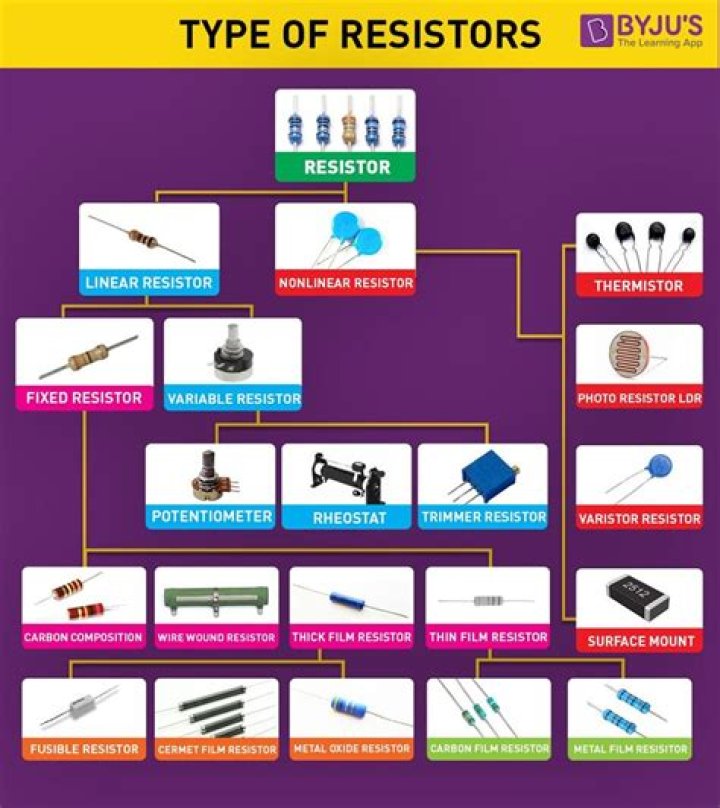

What is resistor and types of resistor?

A resistor is a passive component in a circuit which provides resistance to the flow of current. … These resistors vary in their construction, power dissipation capacities, and tolerance to various parameters (such as temperature and light). The types of resistors include: Carbon Composition Resistor. Thermistor.

What is resistor and its symbol?

Resistor is an electrical component that reduces the electric current. The resistor’s ability to reduce the current is called resistance and is measured in units of ohms (symbol: Ω).

What are the 4 types of resistors?

• Carbon Composition Resistors.
• Wire wound Resistors.
• Thin Film Resistors.
• Carbon Film Resistors.
• Metal Film Resistors.
• Thick Film Resistors.
• Metal Oxide Resistors.
• Cermet Oxide Resistors (Network Resistors)

Article first time published on

What is a diode symbol?

diode, an electrical component that allows the flow of current in only one direction. In circuit diagrams, a diode is represented by a triangle with a line across one vertex.

What is a transistor symbol?

NameDescriptionPNP Bipolar TransistorAllows current flow when low potential at base (middle)Darlington TransistorMade from 2 bipolar transistors. Has total gain of the product of each gain.JFET-N TransistorN-channel field effect transistorJFET-P TransistorP-channel field effect transistor

What are examples of resistors?

• Carbon composition.
• Carbon film.
• Metal film.
• Metal oxide film.
• Wirewound.
• Foil.

What is resistance and example?

Resistance is defined as a refusal to give in or to something that slows down or prevents something. An example of resistance is a child fighting against her kidnapper. An example of resistance is wind against the wings of a plane.

What is resistor in parallel?

Resistors are in parallel if their terminals are connected to the same two nodes. The equivalent overall resistance is smaller than the smallest parallel resistor.

How do you spell resister?

A resistor is part of an electrical circuit; a person who resists something is a “resister.”

How would you define voltage?

Voltage describes the “pressure” that pushes electricity. The amount of voltage is indicated by a unit known as the volt (V), and higher voltages cause more electricity to flow to an electronic device.

What is a resistor Class 10?

Answer: a device having resistance to the passage of an electric current.

What is transistor and resistor?

Transistor: A transistor is an electronic device used to control the flow of an electric current. … Resistance: The resistor is an electronic component that limits or limits the current flow and divides the voltage in an electronic circuit. Its main purpose is to provide a precise amount of electrical resistance.

What is resistor BYJU's?

Resistor is defined as. A passive electrical component with two terminals that are used for either limiting or regulating the flow of electric current in electrical circuits. The main purpose of resistor is to reduce the current flow and to lower the voltage in any particular portion of the circuit.

What is resistor PPT?

A RESISTOR IS A PASSIVE TWO – TERMINAL ELECTRICAL COMPONENT THAT IMPLEMENTS ELECTRICAL RESISTANCE AS A CIRCUIT ELEMENT. THE RATIO OF THE VOLTAGE APPLIED ACROSS A RESISTOR’S TERMINALS TO THE INTENSITY OF CURRENT THROUGH THE CIRCUIT IS CALLED RESISTANCE. THIS RELATION IS REPRESENTED BY OHM’S LAW: V=IR.

What are 3 types of resistors?

There are 3 main types of resistors based on their composition: carbon-composition resistors, carbon-film resistors, and metal-film resistors.

Is a light bulb a resistor?

The reason a light bulb glows is that electricity is forced through tungsten, which is a resistor. The energy is released as light and heat. A conductor is the opposite of a resistor.

What is unit of diode?

A diode is not a measurable quantity. Hence,it does not have a unit. Generally,for a diode,we measure characteristics like forward voltage drop,reverse voltage drop and reverse breakdown voltage which are usually measured in Volts.

What is forward bias?

What is Forward Bias? Forward bias or biasing is where the external voltage is delivered across the P-N junction diode. In a forward bias setup, the P-side of the diode is attached to the positive terminal and N-side is fixed to the negative side of the battery.

What is diode types?

A diode is a two terminal electrical device. Diodes are made from a semiconductor, most often silicon but sometimes germanium. There are various types of diodes, but the ones being discussed here are Zener, Rectifier, Schottky, Transient Voltage Suppressor, Thyristor, Silicon Controlled Rectifier, and TRIAC.

What is PNP and NPN transistor?

NPN and PNP refer to the arrangement of the pieces that make up the transister. … An NPN transistor has a piece of P-type silicon (the base) sandwiched between two pieces of N-type (the collector and emitter). In a PNP transistor, the type of the layers are reversed. Below is a typical cross section of a transistor.

What does Mosfet mean?

MOSFET stands for metal-oxide-semiconductor field-effect transistor. … Typically, the MOSFET is a three-terminal device with gate (G), drain (D) and source (S) terminals. Current conduction between drain (D) and source (S) is controlled by a voltage applied to the gate (G) terminal.

Why do you need resistors?

A resistor controls the flow of the electrical current within a circuit. … Resistors are essential to many electoral circuits, and they can be applied to a myriad of different applications. Protect against voltage spikes. Resistors also protect components against voltage spikes.

Where are resistors used in real life?

Because of the nature of generating heat when conducting current, resistors are used in a heater, toaster, microwave, electric stove, and many more heating appliances. In a light bulb, the metal filament glows white-hot due to the very high temperature produced from the resistance when electricity is passed through it.
