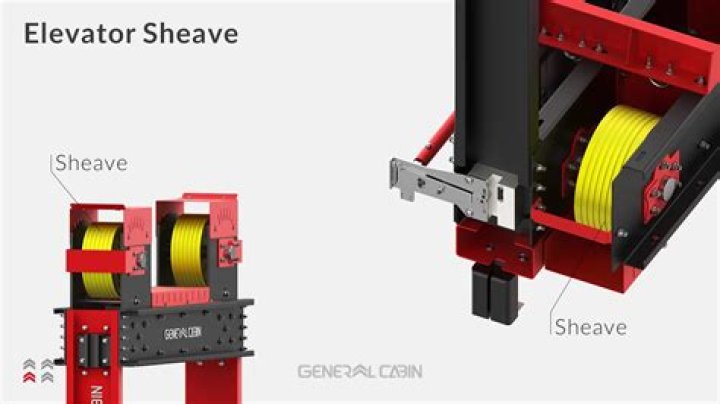

A sheave is just a pulley with a grooves around the circumference. The sheave grips the hoist ropes, so when you rotate the sheave, the ropes move too. … The ropes that lift the car are also connected to a counterweight (4), which hangs on the other side of the sheave.

What are elevator sheaves made of?

Elevator ropes are highly engineered and made of steel with other composites. Also they are not single wires but several strands of various sizes wrapped together. A typical cable or rope can have over 150 strands of wire precisely designed to be strong, flexible, and give long service.

What are the parts of an elevator?

• Elevator car & shaft.
• The Sheave & Motor.
• Control unit.
• Counterweight.
• Machine drive.
• Counterweight guide rails.
• Guide rail fixing bracket.
• Car guide rail.

What is deflector sheave elevator?

One or more deflector sheaves are located between the traction sheave and the elevator car over which the belt is routed to guide the belt to the elevator car. The one or more deflector sheaves include an outer sheave surface having a distance from a sheave axis that varies along a width of the traction sheave.

What holds up an elevator?

A sheave is a pulley with a grooved rim surface, at the top of the elevator shaft. The sheave’s grooves grip the steel cables. So when an electric motor rotates the sheave, the cables move, too. … Even if one cable snapped, the remaining cables would hold the elevator car up.

What is a sheave guard?

MacGregor wire sheave guards protect wire-rope sheaves from damage and minimise the risk of them breaking away from the crane. … If a bearing breaks down in the sheave or is damaged by, for example, a gantry crane, there is a risk that the entire sheave will be pushed off the shaft.

What is the purpose of sheaves?

A sheave (/ʃiːv/) or pulley wheel is a grooved wheel often used for holding a belt, wire rope, or rope and incorporated into a pulley. The sheave spins on an axle or bearing inside the frame of the pulley. This allows the wire or rope to move freely, minimizing friction and wear on the cable.

What are elevator buttons?

Call Buttons are used to request an elevator. They are mounted 42″ above the finished floor and consist of an up button and a down button that illuminate to indicate the request has been received and an elevator is on the way. Hall Lanterns are used to indicate the arriving elevator and the direction it will travel.

What is buffer in elevator?

Elevator buffers are safety devices which are required to be mounted at the base of an elevator shaft. … The purpose of elevator buffers is to provide protection against the malfunction of an elevator control system resulting in the elevator continuing to travel past the lowest stop to the base of the elevator shaft.

What keeps an elevator from falling?

Elevators have two or three types of brakes. If there’s an error in the safety chain, a clamp closes on the pulley above the car, preventing the elevator from moving. Unlike an automobile brake, which has to be depressed to engage, the elevator brake is clamped down unless power is supplied to release it.

Article first time published on

Can an elevator plunge?

First of all, elevators never plummet down their shafts. For the past century, elevators have had a backup break that automatically engages when an elevator starts to fall. If all the cables snapped (highly unlikely), the elevator would only fall a few feet before the safety breaks would activate.

What kills you when an elevator falls?

ANYWAYS, what kills you when the elevator falls is the abrupt stop at the end. Your soft internals will become ruptured, causing death. Also, another possibility is that the parts of the car below you turn into sharp pieces of scrap and they also impale and lacerate you.

What's the meaning of sheave?

: a grooved wheel or pulley (as of a pulley block) sheave. verb. \ ˈshēv \ sheaved; sheaving.

What is the difference between sheaves and pulleys?

A pulley is one of six types of simple machines. A sheave (pronounced “shiv”) is actually part of the pulley system. The sheave is the rotating, grooved wheel inside the pulley. This is the piece that the rope fits into.

How do you make a sheave?

The weight of our cast nylon sheaves is one-seventh the weight of steel sheaves. In heavy cranes with multiple reeving, the weight savings adds up quickly. The total axle load on a large mobile crane (which may use as many as 18 sheaves) can be reduced by almost 2,200 Ibs by using Timco sheaves.

What is a block and sheave?

199 products. Sheaves and pulley blocks are devices that aid the lifting or pulling of loads. They mount to a surface or suspend from equipment and have a grooved wheel (sheave) for guiding a wire rope or aircraft cable that’s attached to the load.

How do you inspect sheaves?

1. Check sheave grooves for wear.
2. Check flanges for wear, chips and cracks.
3. Check bearings for wobble, lubrication and ease of rotation.
4. Check grooves for proper size.

What is the difference between snatch block and sheave block?

A Sheave Block has fixed side plates around the sheave or sheaves and can only be reeved by feeding the end of the rope through the block. Snatch Blocks have a latch where you can open the side to reeve the rope over the sheave.

What is an elevator counterweight?

A counterweight is a weight that, by applying an opposite force, provides balance and stability of a mechanical system. … Counterweights are often used in traction lifts (elevators), cranes and funfair rides.

What is overspeed governor?

Over Speed Governor Detail: The Elevator Speed Governor is a device specifically designed to stop the lift if it runs beyond the prescribed speed. … The moment it exceeds the set speed limits, a set of 2 switches trip and cut the power to the elevator.

What are the types of elevators?

• Traction with a machine room.
• Machine-Room-Less (MRL) traction,
• Hydraulic.

What's the difference between lift and elevator?

In British English, a lift is a device that moves up and down inside a tall building and carries people from one floor to another. … In American English, a device like this is called an elevator.

What type of motors are used in elevators?

Conventionally, there are, in general, three types of motors used in elevator systems: AC, DC and a hybrid between the two. The AC-2 motor is a primitive motor drive popular at least half a century ago for low-speed elevators. It is usually coupled with a worm gear to reduce speed and increase driving torque.

How do elevator buttons work?

The buttons in the elevator car and the buttons on each floor are all wired to the computer. When you press one of these buttons, the computer logs this request. … The computer varies the motor speed so that the car slows down gradually as it reaches each floor. This keeps the ride smooth for the passengers.

What does C mean in an elevator?

C: With three different meanings: Concourse, used in some train stations and double deck (lower deck) elevator. Casino, used as the building with the specific floor used only for Casinos. Cockloft, similar as “Mezzanine Floor” (M).

What does EZ mean in an elevator?

On the elevator’s position indicator, you may see the letters EZ. This is used to represent an Express Zone which is a long section of travel where the elevator makes no stops. Typically these are found in elevators that serve the upper reaches of tall buildings, thus bypassing several of the lower floors on the way.

Why do elevators have two close buttons?

When multiple elevators are in use, the up and down (call) buttons serve to tell the system whether or not to stop an elevator at that floor.

Has anyone died in a falling elevator?

On 22 August 2019, 30-year-old Samuel Waisbren was crushed to death at an apartment building in New York City when the elevator which he was trying to exit suddenly descended. Five other people were trapped in the elevator and were later rescued by firefighters.

Has anyone survived a falling elevator?

Betty Lou Oliver (USA) survived a plunge of 75 stories (over 300 m or 1,000 ft) in a lift in the Empire State Building in New York, USA, on 28 July 1945, after an American B-25 bomber crashed into the building in thick fog. The plunge ended in the basement, and Oliver had to be cut out of the mangled elevator.

What happens if you jump in a falling elevator?

No you cannot survive if you are in an elevator that is in free fall. While it is true that everything in a falling elevator will float like in a space capsule but the moment you hit the ground and acceleration of the elevator reduces from “g” to zero, the impact will be fatal.

What type of brakes are used in elevators?

Modern elevators use friction brakes: a pair of shoes that apply equal and opposite pressure to a drum, pulley or disc mounted on the motor shaft. Springs apply the brake shoes to the pulley and are lifted electrically. If power is lost, the brake applies.
