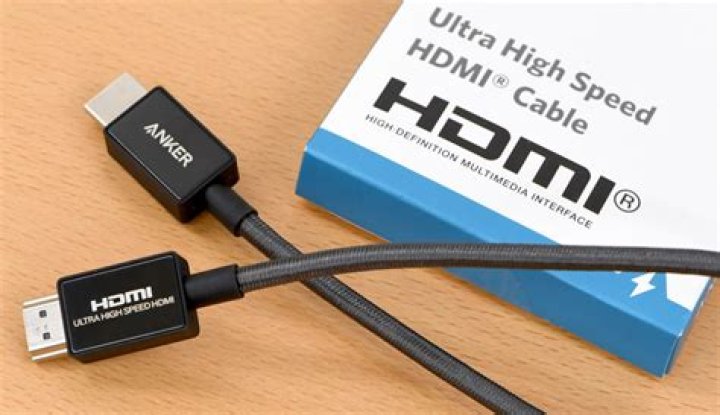

Each HDMI cable is actually multiple small, copper wires. Two versions of the data are sent over different wires.

What are the wires in a HDMI cord?

The HDMI cable consists of 5 twisted pairs, 4 separate wires and a drain wire, used for grounding. The four blue colored pairs are meant for transmission of TMDS signals, the twisted pair with silver aluminium foil is for Ethernet (HEAC) and Audio Return Channel (ARC).

Do HDMI cables contain chips?

Some HDMI cables have chips built into them that help boost the signal. One example of such a chip is RedMere. … Instead, the company says simply that its technology allows for either really thin HDMI cables (spaghetti-thin) or really long cables.

Can I cut an HDMI cable?

It is impossible to splice a HDMI cable. the signal path, attenuation and various other components will be stuffed.

Does HDMI supply power?

HDMI Connectors already provide 5V power. … Active HDMI Cables can require more than the minimum power supplied by HDMI source devices. A source device that supports HDMI Cable Power can provide higher power and can indicate this capability to the cable.

Are HDMI wires color coded?

The cables are color coded (orange, red, blue) to make it easier to identify different devices when needed.

Are all HDMI cables the same?

All HDMI cables are essentially the same in that no matter what version you have, they connect your HD TV and audio/video devices such as Blu-ray player, Xbox, Playstation, Apple TV, or other media players. They basically allow a data signal to be sent from your media device to your TV.

How do I hook up HDMI?

Connect the wireless display adapter into your TV’s open HDMI port and into a power outlet. Change the input source on your TV to the appropriate HDMI input. In the settings menu of your Android, open the “wireless display” application. Select your adapter from the list of available devices.

Is HDMI twisted?

The HDMI format is essentially a digital version of RGB analog video; the principal signal in an HDMI cable is carried on four shielded twisted pairs (yes, just like a CAT5 cable, but with shielding added), which carry a clock signal plus red, green and blue signals (though in some cases the red/green/blue division …

Can I join two HDMI cables together?

If you’re extending an HDMI cable, chances are you have come across HDMI couplers. Sometimes called “HDMI barrels,” HDMI couplers seem like they are a straightforward solution to extending HDMI cable. Simply get another HDMI cable, connect them with the coupler, and you’re done.

Article first time published on

How far can you run HDMI?

Like many audio, video, and data cables, HDMI cords can suffer from signal degradation at longer lengths—50 feet is generally considered the maximum reliable length. And it’s rare to see an HDMI cable longer than 25 feet in a store. Even online, cables more than 50 feet long can be hard to find.

Do longer HDMI cables lose quality?

The length of an HDMI cable does have a negative effect on signal quality, with manufacturers generally not recommending cables over 20 feet.

Is HDMI 1.3 high speed?

HDMI 1.3 / 1.3a: – Higher speed: HDMI 1.3 increases its single-link bandwidth to 340 MHz (10.2 Gbps) to support the demands of future HD display devices, such as higher resolutions, Deep Color and high frame rates.

Who invented HDMI?

Production historyDesignershow HDMI Founders (7 companies) show HDMI Forum (83 companies)DesignedDecember 2002ManufacturerHDMI Adopters (over 1,700 companies)SupersededDVI, VGA, SCART, RGB Component

Can HDMI transmit audio?

HDMI is renowned for its video quality, but it also can carry audio without the need for multiple cables. HDMI supports Dolby TrueHD and DTS-HD for 7.1-channel sound for loss-less, theatre-quality audio. HDMI 1.4 also supports audio return channel, which sends sound from your TV tuner to your receiver.

Will a HDMI cable charge my phone?

You will need an adapter or a connector to connect type-C USB and HDMI ports via an HDMI or adapter cable for charging the laptop. You can also charge the laptop by connecting the type-C port with the type-C port of your mobile phone using your data cable.

Will a HDMI cable charge my laptop?

If your laptop has an HDMI port, this method is best for you as it doesn’t require many accessories. You will only need a couple of things to charge your laptop using an HDMI cable. Through this means, a laptop can be charged, as well as a notebook and Chromebook.

What is a HDMI Splitter?

An HDMI splitter is a small electronic device used to duplicate a single HDMI signal and output it several times. … HDMI splitters take a signal in from a source device and then send that exact same signal out to multiple displays.

How do I know what type of HDMI cable I have?

Unfortunately, the HDMI standard doesn’t require the version number to be printed on the cable. Moreover, since there’s no actual physical difference between the cables, you can’t tell them apart. If you have an HDMI cable, its either a 1.4, 2.0, or 2.1.

Does it matter which HDMI cable I get?

HDMI 1.4 and 2.0 don’t matter nearly as much as their speed ratings, also defined by the HDMI Forum and HDMI Licensing Administrator. … Standard is the most basic, and slowest, HDMI cable you can get. It has a bandwidth of 4.95Gbps, which is enough to send a 1080p signal to your TV, but not much more than that.

How do I know what type of HDMI port I have?

1. Check the manufacturer’s website on the specific product’s specifications (occasionally they would indicate the HDMI port version)
2. Alternatively, you may identify the HDMI standard by connecting your laptop to your display device (monitor or television)

What does the red AV cable do?

They are often color-coded, yellow for composite video, red for the right audio channel, and white or black for the left channel of stereo audio. This trio (or pair) of jacks can often be found on the back of audio and video equipment.

How do I convert HDMI to RCA?

1. Connect one end of your HDMI cable to the HDMI port on your audio/visual high-definition device. …
2. Connect the other end of the HDMI cable to the HDMI port on your HDMI-to-RCA converter.
3. Connect one end of your RCA cable to the RCA ports on your HDMI-to-RCA converter.

Why are HDMI cables so stiff?

The reason is that these cables invert the orientation of the HDMI from end to end, and that the cables are very stiff and don’t twist well. In particular, when one end has the long-side of the connector up, the other end has the long side down.

Is HDMI cable shielded?

Most of our HDMI cables are triple shielded. Some are only “double shielded” – which means that 2 separate layers of tin shielding are wrapped around the copper wires inside the cable. This is MORE than enough.

Can you bend HDMI cable?

Yes. That is why they are flexible. But avoid bending one too sharply. If you have a tight squeeze at one end, it is possible to find a cable for which the plug is at a right angle to the cable.

Why is my TV not picking up HDMI?

Solution 2: Enable the HDMI connection setting If you want to connect your Android phone or tablet to the TV, make sure the HDMI connection setting is enabled on your device. To do it, go to Settings > Display Entries > HDMI connection. If the HDMI connection setting is disabled, enable it.

What input should my TV be on?

If you’re using a coaxial cable, your television’s on-screen input list will usually label it as either TV or ANTENNA. On the back of the television it will usually be labeled ANTENNA or a variant of it, such as ANT. Most televisions will also need to be on either channel 3 or 4 when using a coaxial connection.

What is a HDMI repeater?

The Manhattan HDMI Repeater extends the range of an HDMI signal by decoding and then regenerating it up to 1080p resolution from virtually any HDMI source (Playstation, Xbox, Blu-ray player, satellite receiver, digital recorder, etc.) using existing HDMI cables. … from the HDMI source.

Do HDMI cables have male and female ends?

HDMI connectors themselves function much like any other familiar cable-based plug and socket system. … As with most other audio-video cable components, HDMI connectors are gendered and can be either male or female depending on which side of the interface they’re required to support in order to complete the connection.

How do I connect two HDMI cables to one port?

You can use an HDMI splitter to connect and operate multiple devices through one HDMI port. An HDMI splitter simply has a cable with an HDMI plug on one side and on the other side (depending on the HDMI splitter type) you can have two, three and even four HDMI ports.
