CAC indicates a suspended acoustic ceiling’s ability to block sound traveling through a plenum when the wall does not extend full height. High CAC values indicate higher levels of sound insulation between rooms. Suspended acoustic ceilings typically have CAC ratings between 20 and 35.

What is CAC in ceiling?

What is CAC? Ceiling Attenuation Class is a measure for rating the efficiency of a ceiling system as a barrier to airborne sound transmission between adjacent closed spaces that share a common air plenum. The higher the CAC rating, the better the performance.

How does CAC compare to STC?

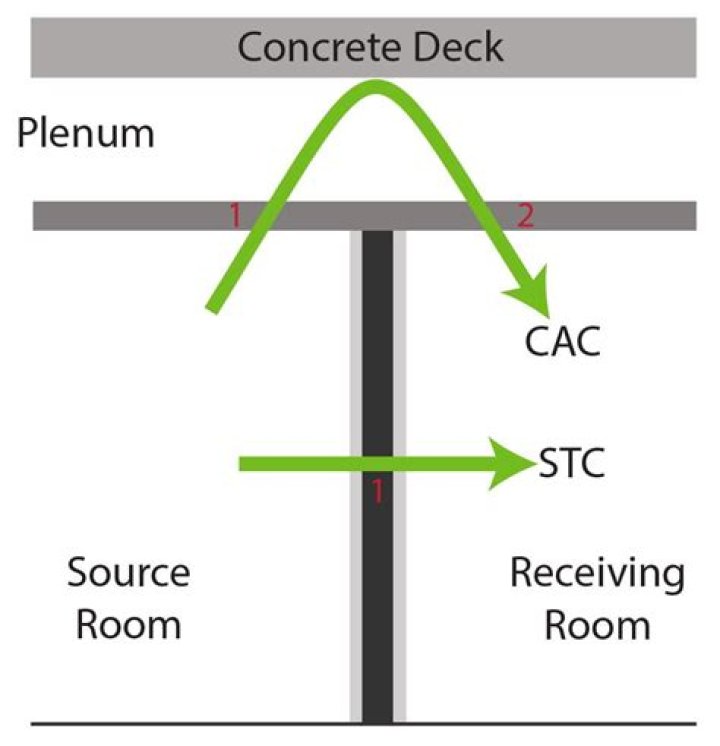

The STC is used to rate the performance of walls, partitions, windows, etc. For this test sound is passing through the material once – from one side to the other. In a CAC test sound passes from a source room, through the ceiling plane, across a shared air space and then through the ceiling plane of the receiving room.

What is the difference between CAC and NRC?

A ceiling system with an NRC < 0.50 is low performance, an NRC > 0.70 is high performance. NRC is important in any space where reverberation time and noise levels are an issue. … A ceiling system with a CAC < 25 is considered low performance, whereas one with CAC of 35 or higher is high performance.

What does NRC stand for in ceiling tiles?

Noise Reduction Coefficient (NRC) While NRC is the most-used acoustic absorption metric for materials, Articulation Class (AC) is another absorption measure used for acoustic ceilings. Articulation Class (AC) indicates the speech privacy performance of a ceiling in an open plan environment.

What is NRC value?

The noise reduction coefficient (commonly abbreviated NRC) is a single number value ranging from 0.0 to 1.0 that describes the average sound absorption performance of a material. … Materials can achieve NRC values greater than 1.00.

What is Nic rating?

The Noise Isolation Class (NIC) is a single number rating derived from the measured values of noise reduction. The rating provides an evaluation of the sound isolation between two enclosed spaces that are acoustically connected by one or more paths. … Field measurements result in NIC, ASTC, and FIIC ratings.

What is the STC rating of acoustical ceiling tile?

This aluminized facing adds a strong soundproofing material, STC rating of 26, which is not found in standard acoustical ceiling tiles. These sound barrier ceiling tiles are Class 1 fire-rated and come in standard sizes of 2′ x 2′ and 2′ x 4′ and standard thickness of 1″.

What is articulation class?

Articulation Class (AC) – measures how well a ceiling panel prevents sound from reflecting back down to adjacent work spaces in an open-plan environment.

What is high CAC?

Basically, the more evidence of calcium and thickening that is seen in the inside lining of the arteries, the higher the score. The higher your CAC score, the more likely you are to develop heart disease or have an event such as a heart attack or stroke.

Article first time published on

What is CAC sound blocking?

CAC indicates a suspended acoustic ceiling’s ability to block sound traveling through a plenum when the wall does not extend full height. High CAC values indicate higher levels of sound insulation between rooms. Suspended acoustic ceilings typically have CAC ratings between 20 and 35.

How is STC composite rating calculated?

Calculating the area of each element and having an STC rating for each element allows the Composite STC rating to be calculated from the total area divided by the Total area times the transmission loss coefficient.

Is High NRC good?

Materials with an NRC rating of . 75 or higher are generally considered highly absorptive, and will yield the greatest improvement with the least amount of material.

Is NRC 1.05 Good?

The higher the NRC, the better the absorber. The NRC may be thought of as a percentage of absorption per square foot. Sometimes an NRC number is higher than 1.00 (i.e. NRC 1.05). … As time went on, other materials were discovered to have a better NRC so the numbers had to grow.

Are PVC ceiling tiles acoustic?

PVC Ceiling Tiles: … Mineral fiber ceiling tiles have good acoustical properties and can be used in most residential and commercial applications.

How are Nic acoustics calculated?

The sound level is measured on both sides of the wall in 1/3rd octave bands and the Field Sound Transmission Class (FSTC) or Noise Isolation Class (NIC) rating is calculated by subtracting one set of data from the other. Access is required to units on both sides of the wall to be acoustically tested.

What is a plenum barrier?

Rockfon® Plenum Barrier Board is a noise blocking panel which is installed over walls inside ceiling plenums or under walls in raised-floor plenums to increase sound insulation and privacy between rooms.

How is NRC calculated?

NRC ratings are calculated by taking the arithmetic averages of a material’s sound absorption coefficients at 250, 500, 1000, and 2000 Hz and then rounding it to the neared 0.05. … These two ratings are not related, but each has its place in telling you about the sound quality in a space.

What is the highest STC rating?

The STC rating goes all the way up to 65. Most products don’t promise anything above 55 and even at a rating of 60, it still doesn’t guarantee complete soundproofing. Nothing is completely soundproof. You cannot stop outside noise completely from entering your space.

How can I make my room soundproof?

Cover walls with thick blankets, moving pads, tapestries, or quilts. Virtually any soft material will work, though thicker ones absorb more sound than thinner materials. If you don’t mind adding an industrial look to the room, fasten sound-absorbing panels to the walls and, if necessary, the ceiling.

What is articulated transcript?

Articulation is a process that allows a student to receive a letter grade, along with the unit value of the course, on their college transcript for high school courses. The credit actually appears on a student’s college transcript with the same letter grade they received in their high school class.

What is articulation anatomy?

Anatomical terminology A joint or articulation (or articular surface) is the connection made between bones in the body which link the skeletal system into a functional whole. They are constructed to allow for different degrees and types of movement.

What is policy articulation?

Articulation describes the transition of students into, between, and from qualifications, and is strongly associated with the notion of portability of qualifications and their composite parts, as defined in the Massey University Qualification Policy.

Are soundproof tiles effective?

Conclusion. While soundproof panels are great products to help block out sound and reduce noise travel for your room, they will not be as effective as other soundproofing methods. If you have minimal soundproofing needs or don’t have a large budget, installing soundproof panels are certainly great options and will help …

Why is it called acoustic tile?

The term “acoustical ceiling tile” has as much to do with marketing as it does with making a difference in the “sound environment” within a given room. Conventional drop ceiling tiles came into wide usage because they were easy to install, provided convenient access to the areas above the ceiling, and were cheap.

Do soundproof ceiling tiles work?

The short answer? Absolutely. Not only does it work, but it is one of the most effective ways to reduce the transmission of noises. Ceiling tiles have a long history of improving and aiding a noise problem.

Can vitamin D cause calcification of arteries?

Daily vitamin D supplementation does not influence the progression of arterial calcification or increase the likelihood that the condition will develop, according to findings presented at the American Society of Bone and Mineral Research annual meeting.

What are the warning signs of clogged arteries?

• Chest pain.
• Shortness of breath.
• Heart palpitations.
• Weakness or dizziness.
• Nausea.
• Sweating.

Can I reduce my calcium score?

If your calcium score is high, medication and procedures that remove plaque from the heart can lower the score.

Is a higher STC rating better?

Higher STC ratings generally are better. … This means that extremely low frequencies don’t register on the STC rating scale, thus when a sound on one side of a wall is below 125Hz, the ability of the wall to block sound cannot be calculated. STC is not a direct measure of how many decibels of sound a wall can stop.

What STC rating is soundproof?

Soundproof Windows range from 48 to 54 (with more possible), which varies depending on the existing window and the air space. Over a single-paned window in a standard wall, the STC rating is 48. Over double paned windows, the STC rating is 48 or more.
