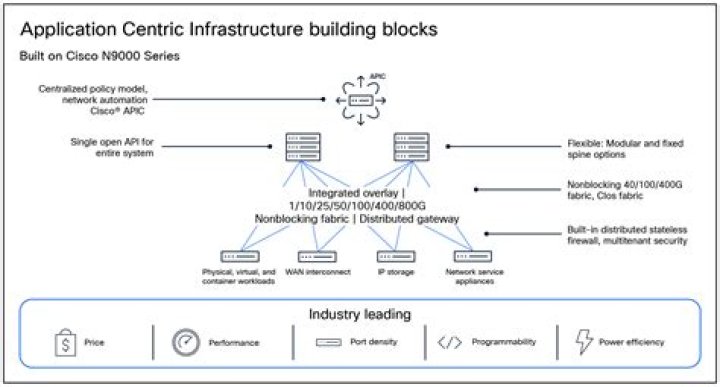

The Cisco Application Policy Infrastructure Controller (Cisco APIC) is the main architectural component of the Cisco ACI solution. It is the unified point of automation and management for the Cisco ACI fabric, policy enforcement, and health monitoring.

What is APIC-em in networking?

APIC-EM is an SDN controller for policy based automation of the network infrastructure, simplifying deployment and network operations. The built in applications IWAN, Path Trace and Plug and Play support enterprise routers, switches and Access Points. All capabilities are exposed via a REST API.

What is role of APIC controller in ACI fabric?

The APIC appliance is a centralized, clustered controller that optimizes performance and unifies the operation of physical and virtual environments. The controller manages and operates a scalable multitenant Cisco ACI fabric.

Is APIC an SDN controller?

APIC-EM is an SDN controller that was created for Enterprise hardware. … For the southbound interface, it uses common protocols like Telnet, SSH and SNMP to communicate with your hardware. The control / data plane remains in your switches, routers, and other devices.

What is the difference between ACI and APIC?

APIC is a software control centre to configure and run this infrastructure. Because ACI follows the SDN paradigm of de-coupling control plane functions from forwarding plane, the devices that build the fabric don’t have intelligence required to make independent decisions on forwarding the packets.

Why do we need APIC?

The Cisco APIC Enterprise Module automates the deployment and compliance checking of network policies across the entire end-to-end network for superior threat detection and remediation. Customers also gain efficient change management of access control lists (ACLs).

What is Cisco APIC and ACI?

What is Cisco APIC? is part two of SDxCentral’s series to explain the Cisco ACI (Application Centric Infrastructure) framework. … APIC is the single point of automation and management in both physical and virtual environments, allowing operators to build fully automated and multi-tenant networks with scalability.

What is Cisco ACI?

Cisco Application Centric Infrastructure (ACI) is a software-defined networking (SDN) solution designed for data centers. Cisco ACI allows network infrastructure to be defined based upon network policies – simplifying, optimizing, and accelerating the application deployment lifecycle.

Is Cisco APIC free?

Cisco APIC-EM Licensing ◦No fee-based license is required. The controller software and basic apps are offered at no cost to the user.

Does Sdn make networks agile?

Software-defined networking (SDN) is an architecture that abstracts different, distinguishable layers of a network to make networks agile and flexible. The goal of SDN is to improve network control by enabling enterprises and service providers to respond quickly to changing business requirements.

Article first time published on

What is the difference between northbound and southbound?

In a figurative sense, northbound flow can be thought of as going upward, while southbound flow can be thought of as going downward. In architectural diagrams, northbound interfaces are drawn at the top of the applicable component, while southbound interfaces are drawn at the bottom of the component.

Which API uses OpenFlow protocol?

In the SDN architecture, the controller uses the southbound application program interfaces (APIs) to communicate with the forwarding devices. One typical example of a southbound API is OpenFlow protocol3.

What is tenant in APIC?

Tenants: – It refers to a logical unit for management. Tenants can be customers, business units (BU’s), groups who have separate administration and data flows. Tenants provide secure and exclusive virtual computing environment and can contain Multiple Private networks (VRF Instances).

Does the APIC controller perform data traffic forwarding?

While the APIC acts as the centralized policy and network management engine for the fabric, it is completely removed from the data path, including the forwarding topology. Therefore, the fabric can still forward traffic even when communication with the APIC is lost.

What is Nexus dashboard?

The NEXUS Dashboard offers RBAC controls and offers an admin view where sites are onboarded and configured and day 2 applications are added and configured. An operator view where the operator can go into the day 2 applications and monitor the network using the admin’s sites and applications.

What is bum traffic in ACI?

Broadcast, unknown-unicast and multicast traffic (BUM traffic) is network traffic transmitted using one of three methods of sending data link layer network traffic to a destination of which the sender does not know the network address.

How does ACI 5.0 release continues to improve the ease of use of the ACI controller for daily operations?

Ease of Use: ACI 5.0 release continues to improve the ease of use of the ACI controller for daily operations: Centralized view of cloud resource inventory within AWS and Microsoft Azure. Optimize time required for fabric upgrades, along with upgrade status indicators.

What is an application profile in ACI?

Application profiles (APs) are containers for the grouping of endpoint groups (EPGs). … Application profiles define different aspects to the tenancy, governing security, quality of service (QoS), service-level agreements (SLAs), and layer 4 to layer 7 services.

What is infrastructure VLAN in ACI?

During fabric setup, ACI requires a VLAN to be used as the infrastructure VLAN. This VLAN is used for control traffic between devices that make up the fabric (i.e., leafs, spines, and APICs).

Is Cisco ACI an overlay?

Cisco ACI is a controller-based physical network underlay and software overlay. Cisco defines their methodology as an integrated overlay approach meaning it includes hardware and software.

What are the three steps to configure NTP in ACI?

1. Create a Date and Time Pod policy (or NTP fabric policy)
2. Create a Pod policy group and invoke the Date and Time Pod Policy in it.
3. Create a Pod Profile. Select the Pod number and attach the Pod policy group to it.

Is APIC part of retained earnings?

APIC in Financial Statements APIC is accounted for in shareholders’ equity and serves to counterbalance the increase in the cash account on the assets side of the balance sheet. Along with retained earnings. Retained Earnings are part, it is generally the largest component of shareholder equity.

What does EPG mean?

Electronic programming guides (EPGs) and interactive programming guides (IPGs) are menu-based systems that provide users of television, radio and other media applications with continuously updated menus that display scheduling information for current and upcoming broadcast programming (most commonly, TV listings).

What is DNA in Cisco?

Cisco Digital Network Architecture (Cisco DNA) software delivers automation, security, predictive monitoring, and a policy-driven approach.

What is the difference between Cisco ACI and Cisco DNA?

Cisco ACI is an independent software-defined networking product. … Intuitive. is more like a strategy or product grouping. Cisco DNA Center is an automation and management platform that uses the new Cisco APIC, which is also used in Cisco ACI. SD-Access is another grouping of products and tools within the Network.

How does Cisco DNA center work?

Cisco DNA Center is based on something called Intent-Based Networking. … It is a new approach to networking in that the network admin can now define and input what the needs of the network are into the IBN software controller. This ensures that the network works in conjunction with the needs of the business.

What is an ACI controller?

Cisco ACI is a tightly coupled policy-driven solution that integrates software and hardware. … From a management perspective, the central SDN Controller of the ACI solution, the Application Policy Infrastructure Controller (APIC) manages and configures the policy on each of the switches in the ACI fabric.

Why do I need ACI?

ACI will allow the network team to have visibility into both physical and virtual workloads on the network (with VMM integration, fabric can see VM attributes). You can also integrate Containers for microservices management. It improves the ease and speed of deployment.

Why do I need Cisco ACI?

Cisco ACI, Cisco’s software-defined networking (SDN) architecture, enhances business agility, reduces TCO, automates IT tasks, and accelerates data center application deployments. Why Today’s Solutions Are Insufficient: Today’s solutions lack an application-centric approach.

What is SDN architecture?

Software-Defined Networking (SDN) is a network architecture approach that enables the network to be intelligently and centrally controlled, or ‘programmed,’ using software applications. This helps operators manage the entire network consistently and holistically, regardless of the underlying network technology.

What are the three Software Defined Networking SDN layers?

A typical representation of SDN architecture includes three layers: the application layer, the control layer and the infrastructure layer.
