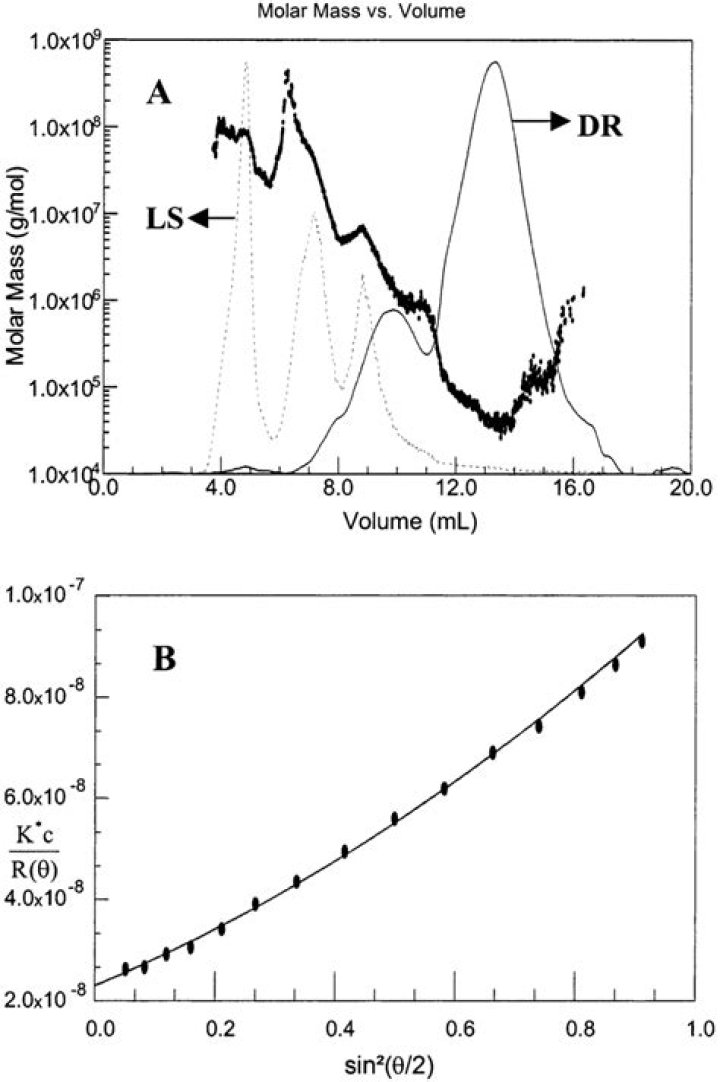

Often SEC data is not plotted as a function of time, but rather as a function of elution volume. Elution volume (Ve) is the volume of solvent required to move the polymer from the point of injection (one end of the column) to the detector (other end of the column).

What does elution mean in chromatography?

[ ĭ-lōō′shən ] n. The chromatographic process of using a solvent to extract an adsorbed substance from a solid adsorbing medium. The removal of antibody from the antigen to which it is attached.

What is Vo VE and VT?

Vo = void volume. Vt = total volume. Vo = Elution volume of a large “totally excluded” molecule such as blue dextran. Vt = Physical volume of column. Calculation of Ve.

How is elution order calculated?

The order of elution when using polydimethyl siloxane usually follows the boiling points of the solutes, with lower boiling solutes eluting first. Replacing some of the methyl groups with other substituents increases the stationary phase’s polarity and provides greater selectivity.

What is elution process?

In analytical and organic chemistry, elution is the process of extracting one material from another by washing with a solvent; as in washing of loaded ion-exchange resins to remove captured ions. … Predicting and controlling the order of elution is a key aspect of column chromatographic methods.

What is the difference between SEC and HPLC?

In HPLC, the retention volume of a peak is used for identification purposes and stable flow is important. However, small variations can be tolerated. In SEC, the retention volume is used to calculate the molecular weight and the relationship is logarithmic, so stable flow is critical.

What is difference between MN and MW?

Mn is the number averaged MW, and Mw is the weight averaged MW. The midpoint of the distribution in terms of the number of molecules is Mw. The third moment, Mz, has more weighting with regards to higher MWs. The Mw:Mn ratio is termed as polydispersity, and is used for describing the distribution width.

What is an analyte in chromatography?

Chromatography terms. Analyte – the substance to be separated during chromatography. It is also normally what is needed from the mixture. Analytical chromatography – the use of chromatography to determine the existence and possibly also the concentration of analyte(s) in a sample.

What is meant by chromatogram?

Definition of chromatogram 1 : the pattern formed on an adsorbent medium by the layers of components separated by chromatography. 2 : a time-based graphic record (as of concentration of eluted materials) of a chromatographic separation.

What is the purpose of elution?

Elution removes antibody molecules from the red cell membrane either by disrupting the antigen or changing conditions to favor dissociation of antibody from antigen. Many techniques are available, and no single method is best in all situations.

Article first time published on

What is the elution order in gas chromatography?

The order of elution when using polydimethyl siloxane usually follows the boiling points of the solutes, with lower boiling solutes eluting first. Replacing some of the methyl groups with other substituents increases the stationary phase’s polarity and provides greater selectivity.

What does elution order mean?

In chromatography, we have a flow coming out of a column, when we inject a substance to start a run. we will get peaks coming out of the column, the elution order is simply the order into which the different peaks are coming out of the column.

What elutes out of a column first?

Column chromatography can be thought of as three-dimensional version of TLC (and vice-versa). So the most polar compound which interacts with silica gel most elutes slowest and the least polar compound leaves the column first.

What is elute first in chromatography?

In normal-phase chromatography, the stationary phase is more polar than the mobile phase. So as polar molecules are retained in the column, your elution of molecules will go from non-polar to polar. … You use a non-polar stationary phase that retains non-polar compounds and so, you elute first the polar molecules.

Why is blue dextran used?

Blue dextran is used in affinity chromatography, gel filtration chromatography, protein chromatography and molecular weight markers. Blue dextran has been used to study Alzheimer′s disease.

What is blue dextran?

Blue Dextran is a high-molecular-weight glucose polymer (original mol wt 2 x 10(6) g/mol) containing covalently bonded Reactive Blue 2 dye (approximately mmol/g dextran). This blue dye is known for its high binding affinity to a wide variety of proteins, with a particularly high affinity for serum albumin.

What type of chromatography is HPLC?

High Performance Liquid Chromatography (HPLC) is a form of column chromatography that pumps a sample mixture or analyte in a solvent (known as the mobile phase) at high pressure through a column with chromatographic packing material (stationary phase).

What is elution in biotechnology class 12?

Elution is the process of separating and extracting a material from another. Ethidium dye is used to visualize the DNA fragments. DNA fragments are only visible in UV radiation.

What is meant by elution in electrophoresis?

Electroelution is a method used to extract a nucleic acid or a protein sample from an electrophoresis gel by applying a negative current in the plane of the smallest dimension of the gel, drawing the macromolecule to the surface for extraction and subsequent analysis. Electroblotting is based upon the same principle.

How does an elution column work?

During the elution cycle, water is drawn from the potable water tank and pumped through the heat exchanger via valve AV 409 into the column. The water then flows up through the column, taking with it gold that has been freed into solution during the preheat stage.

What is MN polymers?

The Number Average Molecular Weight, Mn It is just the total weight of all the polymer molecules in a sample, divided by the total number of polymer molecules in a sample.

How is MN calculated?

To calculate the number average molecular weight (Mn), we take the sum of the weight of all the members of each team and divide it by the number of players on that team. This is the typical numerical average.

Why are polymers Polydisperse?

What Is Polydisperse Polymer? While, polydisperse polymer is non-uniform and contains polymer chains of unequal length, and so the molecular weight is not a single value – the polymer exists as a distribution of chain lengths and molecular weights. Man-made polymers are always polydisperse particles.

What is the difference between GPC and HPLC?

The only really relevant difference are the columns and the detectors. For HPLC, UV-Vis detectors are THE standard, for GPC/SEC differential refractive index detector are THE standard. For GPC/SEC viscosimetry and/or light scattering makes sense, too, depending on your analyte also UV-Vis.

What is GPC testing?

Gel permeation chromatography (GPC) is a type of size-exclusion chromatography (SEC), that separates analytes on the basis of size, typically in organic solvents. The technique is often used for the analysis of polymers. As a technique, SEC was first developed in 1955 by Lathe and Ruthven.

What is the principle of HPLC?

The separation principle of HPLC is based on the distribution of the analyte (sample) between a mobile phase (eluent) and a stationary phase (packing material of the column). Depending on the chemical structure of the analyte, the molecules are retarded while passing the stationary phase.

What is the difference between a chromatograph and a chromatogram?

As nouns the difference between chromatogram and chromatograph. is that chromatogram is (analytical chemistry) the visual output from a chromatograph usually a graphical display or histogram while chromatograph is (analytical chemistry) a machine that performs chromatography by gas or liquid separation.

Which is the analyte?

The analyte (titrand) is the solution with an unknown molarity. The reagent (titrant) is the solution with a known molarity that will react with the analyte.

What is analyte in chromatography Mcq?

Analyte :- substance for separation. … Eluent :- It is a solvent that used for separation of absorbed material from stationary phase. Eluate :- is a liquid solution that is a result from Elution. Chromatogram :- It is a graphical represention of Chromatography.

What is an analyte band?

Each specific analyte band is made up of many analyte molecules. The center of the band contains the highest concentration of analyte molecules; while the leading and trailing edges of the band are decreasingly less concentrated as they interface with the mobile phase [Figure 5].

How do you elute?

Elution of your target protein is usually done by passing through the column a solution that has in it a high concentration of free ligand. This is a very efficient purification method since it relies on the biological specificity of your target protein, such as the affinity of an enzyme for a substrate.
