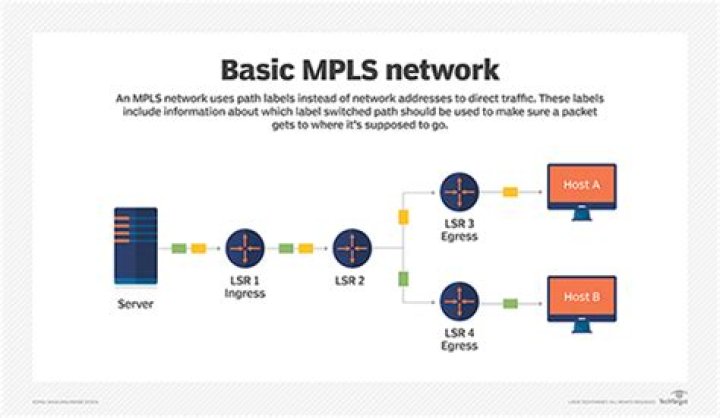

Multi-Protocol Label Switching (MPLS) converts routed network to something closer to a switched network and offers information transfer speeds that are not available in a traditional IP-routed network. Instead of forwarding packets on a hop-by-hop basis, paths are established for particular source-destination pairs.

What is MPLS with example?

MPLS can be used when speed and reliability are highly important. Applications that require near-immediate data delivery are known as real-time applications. Voice calls and video calls are two common examples of real-time applications. MPLS can also be used to set up wide area networks (WANs).

Why do we need MPLS?

The benefits of MPLS are scalability, performance, better bandwidth utilization, reduced network congestion and a better end-user experience. MPLS itself does not provide encryption, but it is a virtual private network and, as such, is partitioned off from the public Internet.

Is MPLS the same as Ethernet?

Ethernet and MPLS-TP While both Ethernet and MPLS are commonly used to carry IP, there are many fundamental protocol differences between the two. Ethernet is defined from Layer 0 to Layer 2 (but may run over MPLS), while MPLS always requires a foreign server layer to transport it (which may be Ethernet).

What is the difference between BGP and MPLS?

BGP carries routing information for the network and MPLS labels, whereas MPLS transports the data traffic.

How do I create a MPLS network?

1. Configure the loopback interface to be used as the LDP router ID.
2. Enable CEF.
3. Configure the label distribution protocol.
4. Configure the TDP/LDP router ID (optional).
5. Configure MPLS on core interfaces.
6. Configure IS-IS or OSPF as the MPLS VPN backbone IGP.

Is MPLS a VPN?

MPLS VPN can be defined as a type of VPN infrastructure that utilizes multiprotocol label switching techniques to deliver its services.

What is MPLS vs SD WAN?

To summarize, while MPLS is a dedicated circuit, SD-WAN is virtual overlay and decoupled from physical links. This gives MPLS a slight advantage when preventing packet loss, but you’ll incur more expenses for every megabit transferred.

What are the prerequisites to run MPLS?

MPLS is a forwarding method, in which packets are forwarded based upon labels. It is called as Multi protocol because it is going to support all the protocols like Ethernet, ATM, Frame Relay and PPP.

What is the difference between SDH and MPLS?

MPLS-TP is virtually the packet-based alternative to “good old” SDH/SONET technology. This packet-based technology offers the same qualities of network stability and settings as SDH/SONET. By significantly reducing complexity, MPLS-TP makes life easier for network administrators.

Article first time published on

Is MPLS WAN or LAN?

Multiprotocol label switching (MPLS) is a common method for constructing the connections between local area networks (LANs) that make up wide area networks (WANs). Using specialized routers, MPLS sends packets along predetermined network paths, improving upon the typical way the Internet works.

What is the difference between MPLS and Metro Ethernet?

1) Metro Ethernet is the layer 2 transport for things such as MPLS. Think of it as a really long Ethernet segment between yourself and your service provider. … 2) MPLS is just switching packets based on label as opposed to routing based on layer 3 information.

Can MPLS run over fiber?

MPLS supports a range of access technologies, including DSL, T1, DS3, Ethernet Over Copper (EoC), Ethernet Over T1 or DS3, Ethernet Over Fiber (Metro Ethernet), and Ethernet Over Fixed Wireless.

What is the difference between MPLS and IP?

Difference between MPLS and IP Routing In MPLS, the switching of traffic is based on the labels assigned to the network packets. While in IP routing, it is based on the destination IP address. In MPLS, a fixed and dedicated path is established for the routing of network packets.

What is disadvantage of MPLS?

There are also some drawbacks of using MPLS like: MPLS is optimized for point-to-point connectivity only. They are not perfect for cloud users. You can’t directly access your SaaS or cloud application with MPLS. There are very few cloud services in the market that provide this service.

Why we use BGP instead of OSPF?

BGP is considered to be more flexible as well as scalable than OSPF and it would be also used on a larger network. OSPF would be used to determine the fastest route whereas the BGP would be putting emphasis on determining the best path. Well, Because OSPF stub areas which would be a total mess to configure.

What is BGP MPLS?

BGP represents the Border Gateway Protocol. MPLS represents multi-protocol label exchange. About Virtual Private Network: It extends a private network through a shared infrastructure.

Why is BGP used?

What is BGP used for? BGP offers network stability that guarantees routers can quickly adapt to send packets through another reconnection if one internet path goes down. BGP makes routing decisions based on paths, rules or network policies configured by a network administrator.

Does SD-WAN use MPLS?

SD-WAN networks manage multiple types of connections, including MPLS, broadband and long-term evolution (LTE), and route traffic over the best path in real time.

Why we need BGP in MPLS?

BGP is a protocol used to carry external routing information such as customers’ routing information or the internet routing information. … The MPLS tunneling mechanism allows core routers to forward packets using labels only without the need to look up their destinations in IP routing tables.

What is SD-WAN stand for?

SD-WAN Explained A Software-defined Wide Area Network (SD-WAN) is a virtual WAN architecture that allows enterprises to leverage any combination of transport services—including MPLS, LTE and broadband internet services—to securely connect users to applications.

What is BGP networking?

Border Gateway Protocol (BGP) refers to a gateway protocol that enables the internet to exchange routing information between autonomous systems (AS). As networks interact with each other, they need a way to communicate. This is accomplished through peering. BGP makes peering possible.

What is MPLS in Cisco router?

Cisco IOS Multiprotocol Label Switching (MPLS) enables Enterprises and Service Providers to build next-generation intelligent networks that deliver a wide variety of advanced, value-added services over a single infrastructure.

How much does an MPLS circuit cost?

MPLS Rates Compared For example, in the United States, the general rate for a DS-1/T-1 MPLS circuit will come with a list rate of anywhere from $750 to $1000 per month – that is $585 per Mbps, compared to $2-$10 for standard Broadband Internet lines.

How much overhead does an MPLS LSP tunnel have?

How much overhead does an MPLS LSP tunnel have? A. An MPLS LSP tunnel has one label (four bytes) or two labels (for example, when using Link Protection Fast reroute) of overhead. Unlike GRE tunnel, MPLS doesn’t change the IP header.

What replaces MPLS?

Considered the MPLS alternative, Software-defined WAN (SD-WAN) is a method for implementing a reliable, high-performance WAN. Instead of using dedicated circuits, SD-WAN optimizes traffic routing over multiple potential transport links.

Is MPLS a dedicated connection?

MPLS is a dedicated private network provided to enterprises by operators. It allows prioritizing one type of application over the other by entering different QoS information in the packet label. … In many cases, hosed UC providers require the enterprise to connect to their cloud with MPLS in order to ensure QoS.

Why is MPLS used in WAN?

MPLS is the dominant form of service for wide area networks (WANs) used by enterprises to build private WANs between far-flung enterprise locations. MPLS WAN service is most typically sold by large carriers.

What is the difference between MPLS and MPLS-TP?

MPLS-TP is a set of MPLS protocols that are being defined in IETF. It is a simplified version of MPLS for transport networks with some of the MPLS functions turned off, such as Penultimate Hop Popping (PHP), Label-Switched Paths (LSPs) merge, and Equal Cost Multi Path (ECMP).

What is VPLS and VPWS?

VPWS creates pseudowires that emulate Layer 2 circuits. A virtual private LAN service (VPLS) network is similar to VPWS, but provides point-to-multipoint traffic forwarding in contrast to the VPWS Layer 2 VPN’s point-to-point traffic forwarding.

What is a pseudowire Ethernet?

Pseudowire (PW) is an emulation of a wired connection. It is the emulation of various telecommunication or networking services such as edge-to-edge connection over packet-switching networks (PSN). It emulates the essential attributes of a packet-switching network such as ATM, Ethernet or Frame Relay.
