The signal level at a receiver input. The RSL is usually expressed in dB (Decibel) with respect to 1 mW, i.e., 0 dBm.

What is RSL in radio?

From Wikipedia, the free encyclopedia. A UK Restricted Service Licence (often called an RSL), is typically granted to radio stations and television stations broadcasting within the UK to serve a local community or a special event.

How do I know if my microwave link is interference?

Switch off the ODU at Site A and then monitor the RSL at site B. And then do the opposite. Switch off the ODU at Site B and then monitor RSL at Site A. If there is no frequency interference for the link, RSL reading should be at -90dBm.

What is RSL in wireless?

What’s an RSL reading? RSL readings are an indicator of how well the radio can “hear” information being transmitted from the far end radio. The numbers are always preceded by a minus (-) sign. An example of an RSL reading would be -35. The closer to zero the reading is, the stronger the signal will be.

How is link budget calculated?

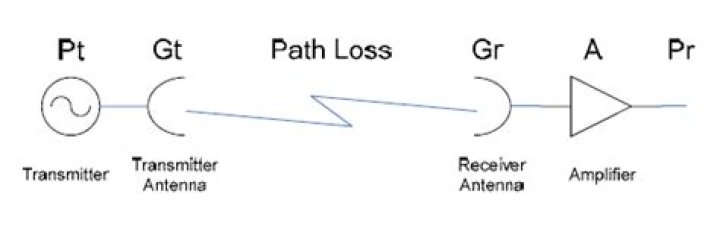

A simple link budget equation looks like this: Received power (dBm) = transmitted power (dBm) + gains (dB) − losses (dB)

What is sensitivity of receiver?

Receiver sensitivity is a measure of the minimum signal strength that a receiver can detect. It tells us the weakest signal that a receiver will be able to identify and process. … The typical range for receiver sensitivity of various RF modules is from -50 to -100 dBm.

What is fading margin in wireless communication?

In telecommunication, the term fade margin (fading margin) has the following meanings: A design allowance that provides for sufficient system gain or sensitivity to accommodate expected fading, for the purpose of ensuring that the required quality of service is maintained.

What causes interference in microwave?

Some microwave radiation leaks out and interferes with WiFi signals, i.e. 2.4 GHz radio waves. Note that this interference at 2.4 GHz is caused by commonly used WiFi devices (e.g., WiFi routers, smartphones, cordless telephones, Bluetooth devices, and so on) that work on 802.11a and 802.11g standards.

How is received signal power calculated?

7.2. If PR is the received signal power and PT is the transmitted power, then in free-space propagation, P R ∝ G × P T f 2 × d α , where f is the carrier frequency, d is the propagation distance, G is the power gain from the transmit and receive antennas, and α = 2.

What is microwave interference?

Microwave ovens are not perfect, and certain amount of energy, namely waves, leak out to the exterior, and when these waves are on the Wi-Fi frequency band of 2.45GHz, they interfere with data transmissions on the same frequency range, from channel 8 on.

Article first time published on

What are the advantages and disadvantages of microwave communication?

• Advantage: Able to Transmit Large Quantities of Data.
• Advantage: Relatively Low Costs.
• Disadvantage: Solid Objects.
• Disadvantage: Subject to Electromagnetic and Other Interference.

What is microwave link budget?

Microwave Applications. 4. *A link budget is accounting of all of the gains and losses from the transmitter, through the medium to the receiver in a. telecommunication system *It accounts for the attenuation of the transmitted signal due to propagation, as well as the antenna gains, feedline and miscellaneous losses.

What is RF link margin?

In a wireless communication system, the link margin (LKM), measured in dB, is the difference between the minimum expected power received at the receiver’s end, and the receiver’s sensitivity (i.e., the received power at which the receiver will stop working).

What are the factors affecting link budget?

‣ Link budget is a way of quantifying the link performance. ‣ The received power in an wireless link is determined by three factors: transmit power, transmitting antenna gain, and receiving antenna gain. the minimum received signal level of the receiving radio, then a link is possible.

What is fade margin in microwave?

Fade Margin is an expression for how much margin – in dB – there is between the received signal strength level and the receiver sensitivity of the radio. … This gives a margin of -10 dBm since the receiver sensitivity of the radio at site b is -110 dBm.

How do I increase my fade margin?

1. Increase antenna height to get the antenna above obstacles.
2. Select antennas with higher gain.
3. Reduce the radio data rate to get better receiver sensitivity.
4. Add a repeater between the sites.

What is the difference between fading and shadowing?

Fading is a significant part of any wireless communication design and is important to model and predict accurately. … Large scale shadowing, on the other hand, is very dependent on location with respect to obstacles; its modeling often consists in predicting the likelihood of outage.

Why is my receiver sensitivity negative?

Because receiver sensitivity indicates how faint an input signal can be to be successfully received by the receiver, the lower power level, the better. … When the power is expressed in dBm the larger the absolute value of the negative number, the better the receive sensitivity.

How do I increase the sensitivity of my receiver?

1. A smaller bandwidth could be used. …
2. The loss in the preselect filter or switch could be reduced. …
3. The noise figure of the LNA could be improved.
4. The LNA gain could be increased reducing the effect of the mixer on. …
5. A lower NF in the mixer would also improve the system NF.

How do I check the sensitivity of my receiver?

To calculate receiver sensitivity, we add the overall noise figure of the receiver to the noise floor. This quantifies the noise floor at the input to the demodulator. The signal must be higher than the noise floor by the carrier to noise ratio required for a desired signal quality.

What is transmit power?

Transmit power is the ammount of power input into the signal to a device. ” The high transmit power (TX power) of UniFi APs is great for single-AP installations, but can be problematic in enterprise/multi-AP deployments.

Why do we need fading margin?

The level of received power in excess of that required for a specified minimum level of system performance is referred to as the fade margin. So called, because it provides a margin of safety in the event of a temporary attenuation or fading of the received signal power.

What is link budget in LTE?

As the name suggests, a link budget is simply the accounting of all of the gains and losses from the transmitter, through the medium (free space, cable, waveguide, fiber, etc.) to the receiver in a telecommunication system. In this page, we will briefly discuss link budget calculations for LTE.

How do I stop my microwave from interference?

1. Clean the microwave oven. The microwaves it generates are not supposed to leak out. …
2. Make sure the oven is grounded. …
3. Put more distance between your WiFi and the microwave oven, If there is any way to put a wall between the microwave and the path between you and the access point, that would help. …
4. Switch to 5GHz channels.

How do you stop a microwave from interference?

Fixing a microwave interference with your WiFi signal will include, moving your router so that there is a distance between the two devices, changing your WiFi frequency band from 2.5GHz to 5Ghz, deep cleaning your microwave, or replacing it entirely.

Is microwave radiation harmful?

Microwave radiation can heat body tissue the same way it heats food. Exposure to high levels of microwaves can cause a painful burn. Two areas of the body, the eyes and the testes, are particularly vulnerable to RF heating because there is relatively little blood flow in them to carry away excess heat.

What is microwave oven frequency?

Following international conventions, microwave ovens at home or in restaurants operate at frequencies of about 2.45 GHz, i.e. λ = 12. 23 cm.

Do microwaves interfere with 5GHz?

“Did you know that microwave ovens can also reduce Wi-Fi signals? … It’s worth pointing out, though, that the microwave interference only affects the 2.4GHz wireless band, so it can be avoided if your router supports the 5GHz band.

What are disadvantages of microwaves?

Following are the disadvantages of Microwave oven : The first and foremost disadvantage of a microwave oven is; it cannot be used for deep frying or making roti or chapatti. It is dangerous to health as the studies show that using microwave could cause cancer as it produces cancer-causing agents.

What is the main disadvantage of microwave transmissions?

The main disadvantages are microwave communication is limited to line of sight mode only, other modes of communication are not possible. At microwave frequencies, transmit time of current carrier, the electron is higher which takes large % of the actual signal.

What is the limitation of a microwave relay?

Another disadvantage of microwave signals is that electromagnetic interference, or EMI, can hinder or damage its execution. EMI can come from electric motors, wind turbines, electric power transmission lines, etc. Also, transmission from microwave signals can be affected by rain, fog, and snow.
