An S wave, or shear wave, is a seismic body wave that shakes the ground back and forth perpendicular to the direction the wave is moving.

What is the difference between P and S waves in an earthquake?

P waves can travel through liquid and solids and gases, while S waves only travel through solids. Scientists use this information to help them determine the structure of Earth. For example, if an earthquake occurs on one side of Earth, seismometers around the globe can measure the resulting S and P waves.

What does P in AP wave stand for?

A P wave, or compressional wave, is a seismic body wave that shakes the ground back and forth in the same direction and the opposite direction as the direction the wave is moving.

How do P waves work?

P waves travel through rock the same way that sound waves do through air. That is, they move as pressure waves. When a pressure wave passes a certain point, the material it is passing through moves forward, then back, along the same path that the wave is traveling. P waves can travel through solids, liquids and gases.

Are P waves longitudinal?

The P seismic waves travel as elastic motions at the highest speeds. They are longitudinal waves that can be transmitted by both solid and liquid materials in the Earth’s interior.

Why do P waves come first?

The direct P wave arrives first because its path is through the higher speed, dense rocks deeper in the earth. The PP (one bounce) and PPP (two bounces) waves travel more slowly than the direct P because they pass through shallower, lower velocity rocks. The different S waves arrive after the P waves.

Can You Feel P waves?

The waves also travel through the Earth at different speeds. The fastest wave, called the “P” (primary) wave, arrives first and it usually registers a sharp jolt. … “It feels more abrupt, but it attenuates very quickly, so if you are far away you often won’t feel the P wave.”

What happens when P waves move?

Seismic P waves are also called compressional or longitudinal waves, they compress and expand (oscillate) the ground back and forth in the direction of travel, like sound waves that move back and forth as the waves travel from source to receiver.

Why are P waves called push pull waves?

The P wave can be described as a push-pull wave, because it moves by contracting and expanding material along a horizontal path. A P-wave travels through a material as a compressional force. The second major type of seismic wave is called an S-wave. S-waves are shear waves.

How do P waves move?

P waves cause the ground to compress and expand, that is, to move back and forth, in the direction of travel. They are called primary waves because they are the first type of wave to arrive at seismic recording stations. P waves can travel through solids, liquids, and even gases.

Article first time published on

Where do P waves travel the fastest?

Because the earth’s mantle becomes more rigid and compressible as the depth below the asthenosphere increases, P-waves travel faster as they go deeper in the mantle. The density of the mantle also increases with depth below the asthenosphere. The higher density reduces the speed of seismic waves.

What does a large P wave mean?

The presence of tall, peaked P waves in lead II is a sign of right atrial enlargement, usually due to pulmonary hypertension (e.g. cor pulmonale from chronic respiratory disease).

Are earthquake P-waves transverse?

There are two types of seismic waves: P-waves, which are longitudinal waves. S-waves, which are transverse waves.

How far do earthquake waves travel?

In the Earth, P waves travel at speeds from about 6 km (3.7 miles) per second in surface rock to about 10.4 km (6.5 miles) per second near the Earth’s core some 2,900 km (1,800 miles) below the surface. As the waves enter the core, the velocity drops to about 8 km (5 miles) per second.

Why do earthquakes feel like rolling?

When we feel an earthquake we feel a wide range of frequencies but unlike music the notes are less distinct. People describing what they felt during an earthquake may call it a “sharp jolt” or a “rolling motion.” The sharp jolt is due to high frequencies while the rolling motion is due to low frequencies.

In which location did the P waves arrive earliest?

“An earthquake was recorded in San Diego. The seismograph record shows that P-waves first arrived at 10:02-09 PST (read this is “10:02 and 9 seconds, AM, Pacific Standard Time”), and S-waves arrived at 10:03-04 PST.

Why is P wave the fastest?

P-waves travel 60% faster than S-waves on average because the interior of the Earth does not react the same way to both of them. P-waves are compression waves that apply a force in the direction of propagation. … The energy is thus less easily transmitted through the medium, and S-waves are slower.

What happened to S and P waves as they travel inside the Earth?

S waves cannot pass through the liquid outer core, but P waves can. The waves are refracted as they travel through the Earth due to a change in density of the medium. When the waves cross the boundary between two different layers, there is a sudden change in direction due to refraction. …

Which type of wave causes the most damage?

Surface waves, in contrast to body waves can only move along the surface. They arrive after the main P and S waves and are confined to the outer layers of the Earth. They cause the most surface destruction. Earthquake surface waves are divided into two different categories: Love and Rayleigh.

Which seismic waves are called push and pull?

P waves are also known as compressional waves, because they push and pull. Particles subjected to a P wave move in the same direction that the wave is moves in; it is the direction that the energy is traveling in, sometimes called the “direction of wave propagation.”

What wave goes up and down?

In a transverse wave, the particles are displaced perpendicular to the direction the wave travels. Examples of transverse waves include vibrations on a string and ripples on the surface of water. We can make a horizontal transverse wave by moving the slinky vertically up and down.

How do P-waves affect structures?

P-waves are the fastest waves created by an earthquake. They travel through the Earth’s interior and can pass through both solid and molten rock. They shake the ground back and forth – like a Slinky – in their travel direction, but do little damage as they only move buildings up and down.

What is the characteristic of P-waves?

P-waves are predominantly compressional waves. As a P-wave passes, material compresses in the same direction the wave is moving, and then extends back to its original thickness once the wave has passed.

Do P-waves move in one direction?

They travel through the interior and near the surface of the Earth. P-waves, or primary waves, are the fastest moving type of wave and the first detected by seismographs. … These waves travel in the same direction, but they shake the ground back and forth perpendicular to the direction the wave is traveling.

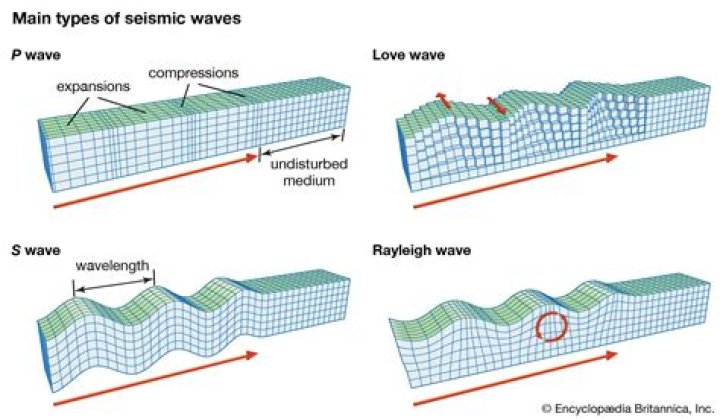

What are the 4 types of earthquake waves?

• P-wave Motion. P-wave:the primary body wave; the first seismic wave detected by seismographs; able to move through both liquid and solid rock. …
• S-wave Motion. …
• Rayleigh-wave Motion. …
• Love-wave Motion.

Do P waves travel faster through liquids?

There are two types of body waves: P-waves travel fastest and through solids, liquids, and gases; S-waves only travel through solids. Surface waves are the slowest, but they do the most damage in an earthquake.

What rhythms do not have P waves?

A junctional rhythm is characterized by QRS complexes of morphology identical to that of sinus rhythm without preceding P waves.

What is an abnormal P axis?

Abnormal P-wave axis is defined as any value outside 0–75° (Figure 1) (31). Figure 1. Representative ECG tracings of abnormal P-wave indices. A through (D), Prolonged P-wave duration (A), abnormal P-wave axis (B), abnormal P-wave terminal force in V1 (C), and advanced interatrial block (D).

Where do P waves travel through?

In a P wave, the rock particles are alternately squished together and pulled apart (called compressions and dilatations), so P waves are also called compressional waves. These waves can travel through solids, liquids, and gases. P waves can travel through the liquid outer core. An S wave is a different beast.

Do P waves or S waves cause more damage?

S waves are more dangerous than P waves because they have greater amplitude and produce vertical and horizontal motion of the ground surface.
