The Simple Network Management Protocol (SNMP) is a necessary tool for every network administrator. … SNMP is still the most popular way to monitor the performance of network devices, including Cisco routers and switches. With an SNMP management station, you can graph the performance of network devices.

What is SNMP and why it is used?

Simple Network Management Protocol (SNMP) is a networking protocol used for the management and monitoring of network-connected devices in Internet Protocol networks. … SNMP provides a common mechanism for network devices to relay management information within single and multi-vendor LAN or WAN environments.

What is SNMP in simple words?

Simple Network Management Protocol (SNMP) is an application–layer protocol defined by the Internet Architecture Board (IAB) in RFC1157 for exchanging management information between network devices. It is a part of Transmission Control Protocol⁄Internet Protocol (TCP⁄IP) protocol suite.

What is SNMP server Cisco?

SNMP is an application-layer protocol that provides a message format for communication between SNMP managers and agents. … This article explains how to configure Simple Network Management Protocol (SNMP) community strings on Cisco routers and Catalyst switches to enable SNMP agent.

What is Cisco SNMP view?

An SNMP MIB view is a family of view subtrees in the MIB hierarchy. A view subtree is identified by the pairing of an Object Identifier (OID) subtree value with a bit string mask value. … You can create MIB views to control the OID range that SNMPv3 users can access. The WAP Device supports a maximum of 16 views.

Which port does SNMP use?

The default SNMP port number is 161. snmp-agent-protocol—The protocol the SNMP agent will communicate with. The default protocol is UDP.

How do you implement SNMP?

1. Use different authentication and privileged passwords. SNMPv3 has authentication with MD5 or SHA-1, which can be considered insecure. …
2. Change the default community string. …
3. Use a separate management network. …
4. Use one tool for SNMP data collection.

What is SNMP server user?

The snmp-server user command creates an SNMP user, defines the group to which the user will be associated, defines the type of authentication to be used for SNMP access by this user, specifies either the AES or DES encryption types used to encrypt the privacy password. All users must be mapped to an SNMP group.

What is SNMP server host?

Configures a trap receiver to ensure that all SNMP traps sent by the Brocade device go to the same SNMP trap receiver or set of receivers, typically one or more host devices on the network.

What is SNMP MIB?

SNMP MIB. MIB stands for Management Information Base and is a collection of information organized hierarchically. These are accessed using a protocol such as SNMP. … MIBs are collections of definitions which define the properties of the managed object within the device to be managed.

Article first time published on

What is SNMP architecture?

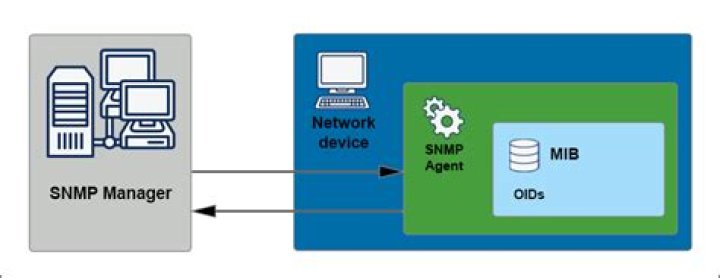

SNMP architecture SNMP has a simple architecture based on a client-server model. The servers, called managers, collect and process information about devices on the network. The clients, called agents, are any type of device or device component connected to the network.

What are the 3 elements of SNMP?

SNMP consists of three key components: managed devices, agents, and the network management station (NMS).

How do NMS work?

An NMS identifies, configures, monitors, updates and troubleshoots network devices — both wired and wireless — in an enterprise network. A system management control application then displays the performance data collected from each network component, allowing network engineers to make changes as needed.

What is an SNMP trap?

SNMP Traps Definition An SNMP trap is a type of SNMP protocol data unit (PDU). Unlike other PDU types, with an SNMP trap, an agent can send an unrequested message to the manager to notify about an important event.

How should an SNMP service be first secured?

The very first thing that should be done is to block port 161 and 162 UDP on your firewall or gateway. SNMP utilizes port 161 to issue and respond to SNMP queries and commands. Port 162 is used to send trap messages.

What is SNMP OID?

In the Simple Network Management Protocol (SNMP), OID means an “Object Identifier.” To define OID, it’s an address used to uniquely identify managed devices and their statuses. … If you’re a professional responsible for your organization’s large-scale network management system, read on.

Should I enable SNMP?

SNMP is without a doubt a very useful protocol for the management and monitoring of network devices, servers and applications. … However, if you do insist on using these protocols, it is recommended that you change the default community and you restrict SNMP to read-only.

How do I know if SNMP is working?

1. Go to Start-> Settings-> Control Panel->Administrative Tools-> Services.
2. Check for SNMP Service.
3. If SNMP Service does not exist, install SNMP. …
4. If SNMP Service is displayed but the status of the Service is not displayed, double click on SNMP Service and click on Start to start the Service.

How do I enable SNMP on my router?

1. Telnet to the router/switch. …
2. Go to the enable mode by specifying the password: …
3. Go into configuration mode: …
4. Use the command below to add a Read-Only community string: …
5. To add a Read-Write Community string, use the command below: …
6. Exit the configuration mode and save the settings:

Why UDP is used in SNMP?

SNMP uses UDP as its transport protocol because it has no need for the overhead of TCP. “Reliability” is not required because each request generates a response. If the SNMP application does not receive a response, it simply re-issues the request.

Does SNMP work over Internet?

Protocol details. SNMP operates in the application layer of the Internet protocol suite. All SNMP messages are transported via User Datagram Protocol (UDP).

Does SNMP use IP?

And Wikipedia says that SNMP can be run over TCP/IP, but UDP is more common.

What is SNMP location?

The location is the server’s physical location. Each of these parameters can be up to 64 characters. To configure the SNMP server’s contact person and the server’s location: Execute the snmp-server contact and snmp-server location commands in Global Configuration mode.

What is Cisco OID?

OID is simply a code that describes a type of info in a management database. … Actually MIB is database bundle of OID for each SNMP enabled device. Suppose you have CISCO Prime Network Management System where you want to add cisco 2960 Switch and a cisco 2811 router.

What are SNMP groups?

What Is an SNMP Community String? An SNMP community string is a means of accessing statistics stored within a router or other device. Sometimes referred to simply as a community string or an SNMP string, it comprises the user credential—ID or password—delivered alongside a GET request.

What is the difference between SNMP v2 and v3?

Main difference between SNMP v2 and SNMP v3 are the enhancements to the security and remote configuration model. SNMP v3 adds cryptographic security to SNMP v2. SNMP v3 replaces the simple password sharing (as clear text) in SNMP v2 with a much more secure encoded security parameters.

What is localized key?

Note. Unlike other callouts, LocalizationKey changes the content displayed by Quick Help, but is not displayed itself. A LocalizationKey callout provides a unique identifier that maps to a corresponding key-value pair in the localized string resource.

What is SNMP agent?

The SNMP Agent is the software component responsible for the Launcher object and responds to queries, carries out requests, and issues traps. A trap is a message sent by an SNMP Agent to the SNMP manager indicating that an event has occurred on the host running the network resource.

What is an OID number?

An OID number is a universally unique id, and is used in many different types of industries for identifying many different types of items and or entities. … The base OID number for the HL7 organization is “2.16. 840.1. 113883”. Each number in the OID represents a different entity starting with the first number “2”.

How is SNMP OID calculated?

1. Download SNMP Tester and unzip all files on your machine, preferably the computer on which you are running a PRTG probe (local or remote).
2. Start SNMP Tester by running snmptest.exe.
3. Select the Local IP for the server on which you would like to look up the OIDs, or leave Any.

What are SNMP components?

An SNMP system consists of four key components: network management system (NMS), SNMP agent, managed object, and management information base (MIB). The NMS manages network elements on a network. Each managed device contains an SNMP agent process, a MIB, and multiple managed objects.
