A solenoid is a basic term for a coil of wire that we use as an electromagnet. We also refer to the device that can convert electrical energy into mechanical energy as a solenoid. … Basic applications of the solenoids are to be used in switch for power. Like the starter in any vehicle.

What is the function of solenoid?

Solenoid valves are control units which, when electrically energized or de-energized, either shut off or allow fluid flow. The actuator takes the form of an electromagnet. When energized, a magnetic field builds up which pulls a plunger or pivoted armature against the action of a spring.

Are solenoids AC or DC?

Solenoids are the most important components used in solenoid valves to control the flow of liquids and gases. Solenoids are electromechanical devices that convert AC or DC electrical energy into linear motion.

How are solenoids used in everyday life?

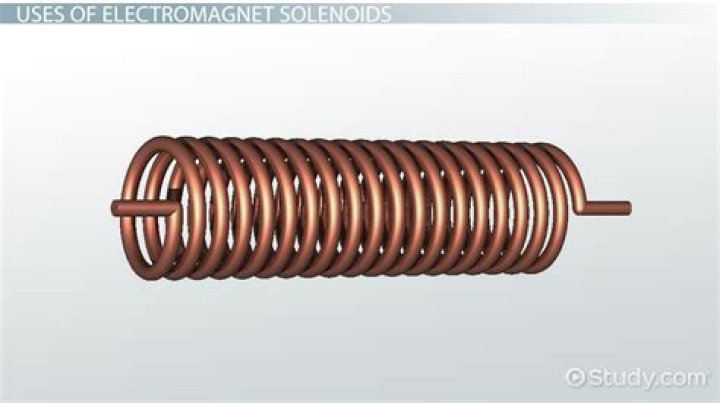

A solenoid is just a coil of wire, but when you run a current through it, it becomes an electromagnet. … Examples of electromagnet solenoids include hotel door locks, water-pressure valves in air conditioning systems, MRI machines, hard disk drives, speakers, microphones, power plants, and cars.

Is a solenoid a relay?

Solenoids are a type of relay engineered to remotely switch a heavier current. … The terms solenoid and relay can often be used interchangeably; however, in the Automotive market, the term solenoid generally refers to a “metal can” type, whereas a relay typically refers to the standard “cube” style relay.

Why is a solenoid valve used?

Solenoid valves are the most frequently used control elements in fluidics. They are commonly used to shut off, release, dose, distribute or mix fluids. For that reason, they are found in many application areas.

What does a solenoid do on a motorcycle?

What Does a Starter Solenoid Do? A starter solenoid is basically a switch that creates a contact point between the battery and the starter. When the starter button is pressed, it energizes the coil, which pushes a contactor to complete the circuit. This transfers DC current from the battery to the starter.

What is solenoid very short answer?

A solenoid is a device comprised of a coil of wire, the housing and a moveable plunger (armature). When an electrical current is introduced, a magnetic field forms around the coil which draws the plunger in. More simply, a solenoid converts electrical energy into mechanical work.

Where are solenoids used in industry?

Solenoids are frequently used in locking mechanisms, and the scope of locking applications includes many industries. Obvious uses include door locking, in hotels, offices and secure areas, vending machines, remote access systems, turnstiles, car park and access barriers.

Are solenoids still used?

Solenoids are mainly used in cars as actuators. A solenoid will move a component a certain distance after electricity has been applied. Starters are probably the most common actuator component. Another common usage in vehicles is as a relay.

Article first time published on

How do you power a solenoid?

The simplest way to drive a solenoid is to switch the current on and off. This is often done with a low-side MOSFET switch and current recirculation diode (Fig. 3). In this circuit, the current is limited only by the supply voltage and dc resistance of the solenoid.

What is the difference between the coil and solenoid?

A coil is a normal bundel of wire wrapped circularly, whereas a solenoid is the circular coil of insulated wire which acts as a magnet when electric current flows through it.

How much voltage does a solenoid need?

Country/ StateUnited StatesSingle-phase voltage (volts)120/240VThree-phase Voltage (volts)208/240VFrequency (hertz)60Hz

What are relays used for?

Relays are generally used to switch smaller currents in a control circuit and do not usually control power consuming devices except for small motors and Solenoids that draw low amps.

What's the difference between a starter relay and a solenoid?

A starter relay consists of a coil of wire wound around a ferrous core and an armature on one end of the coil. … The spring controls the armature and, therefore, the closing and opening of the switch. Solenoid Switch. On the other hand, a starter solenoid is a coil enclosing a movable plunger.

What is 12V relay?

12V DC relay switches are the best solution for full voltage applications, as they allow a low current flow circuit to control a high current flow circuit, like a vehicle’s horn, headlights, auxiliary lamps, fan motors, blower motors and countless pieces of equipment existing on vehicles today. Looking Inside a Relay.

How do I know if my motorcycle solenoid is bad?

If you take a hard object like a hammer and tap the starter motor it will often times start up for you. If you hear some sort of strange clicking noise coming from your starter, is likely the starter solenoid going bad. Over time, this noise occurs as corrosion starts to appear.

Can you start a motorcycle without a starter?

Understand the limitations of the pop-start Push-starting a motorcycle just eliminates the need to use the starting system. Be sure, then, that your battery or starter is at fault. … If the battery has enough juice to shine the headlight fairly brightly, you can probably pop-start your bike.

What problems can a bad solenoid cause?

Solenoid issues may cause your vehicle to go into “limp mode,” a mode created to shield your engine and transmission from catastrophic failure and a severe accident. In Limp Mode, the entire vehicle will begin to grow weak in its power and the ability to accelerate.

Where are solenoid valves used?

Common uses. Solenoid valves are used in fluid power pneumatic and hydraulic systems, to control cylinders, fluid power motors or larger industrial valves. Automatic irrigation sprinkler systems also use solenoid valves with an automatic controller.

How fast can a solenoid operate?

Direct operated solenoid valves have a response time of about 30 ms, while the response time of indirect operated solenoid valves can be up to 1000 ms or higher.

What is the difference between solenoid valve and pneumatic valve?

Here is your answer. A solenoid valve is one that operates by use of electricity. … A pneumatic valve is similar, but instead of utilizing an electromagnetic force to move the plunger and open or close the valve, a compressed air line is used to force the plunger to move.

How are solenoids used in dialysis?

It is an essential component for dialysis machines. Two solenoids are used in the device to control a person’s blood flow during dialysis. A dosing machine also uses a solenoid to control the flow of medicine that goes into a person’s blood stream.

What is solenoid and its uses class 10?

A solenoid is a common term for a wire coil used as an electromagnet. It also applies to any system that uses a solenoid to transform electric energy into mechanical energy. The system generates a magnetic field from electric current and produces linear motion using the magnetic field.

What is solenoid 12th physics?

The solenoid is a coil of wire that acts like an electromagnet when a flow of electricity passes through it.

Why is a solenoid used in making an electromagnet?

A solenoid is just a coil of wire, but when you run a current through it, it becomes an electromagnet. Stationary charges produce electric fields, but moving charges produce magnetic fields. This allows us to create an electromagnet by running a current through a wire.

How much does a solenoid cost?

TypeCost RangeSingle$15 to $100Pack$50 to $300Labor$120 to $400Total (Pack)$250 to $600

What happens if a shift solenoid goes bad?

One of the most common sign that one or more of your transmission solenoids are going bad is unpredictable gear shifts. While driving along at a fixed speed, you may suddenly find your car jumping to another gear. … Alternately, it might jump to a higher gear. This may result in your car stalling out.

Does a solenoid need a resistor?

The resistors, capacitor, and diode are unnecessary. The solenoid coil is rated for 24V, so it will operate at approximately that voltage with no additional resistors needed to drop voltage and/or limit current. The diode would typically be used to protect an active switching device from inductive kickback.

Can a solenoid shock you?

Solenoids aren’t difficult to install, but if your car won’t start, you need a way to start the truck one time to get it to the store. This is a dangerous procedure and will cause a shock–but if you have to do it, it can be done.

How are solenoids wired?

Solenoid wiring typically is a simple, two-wire system consisting of power feed and return wires connected to the solenoid coil, interrupted at some point by a control circuit trigger mechanism.
