What is A 6/12 Roof Pitch? When you are talking about roof pitches, the first number is the number of inches the roof rises every 12 inches. The angle on a 6/12 roof is 26.57 degrees.

Is a 6 12 roof pitch 45 degrees?

Other than the 45° roof slope, which is 12-in-12, none of the standard roof pitches (5-in-12, 6-in-12, etc.) are equal to a whole degree. To see what the degree or percentage equivalents are for standard rise-in-run roof pitches, see our page Three Ways of Expressing Roof Slope.

What is the slope of a 6 12 pitch?

Roof Pitch (slope)Roof Angle (degree)6:12 Pitch26.57°7:12 Pitch30.26°8:12 Pitch33.69°9:12 Pitch36.87°

What angle is a 6 12 hip?

Hip and Valley Factor Table5.5-in-1224.62°17.96°6-in-1226.57°19.47°6.5-in-1228.44°20.96°7-in-1230.26°22.42°

What angle should a sloping roof be?

What is the most appropriate angle for Flat Roofing? Normally, 1:80 (0.72⁰) is the recommended minimum angle for a slope, and this is universal across the vast majority of flat roofing systems, regardless of the materials that they incorporate.

What is a 12 12 roof pitch?

In this pitch, the first twelve is your roof’s rise and the second twelve is the roof’s run. … The roof’s incline increases 12 feet for every 12 feet of horizontal measurement.

What roof pitch is a 45 degree angle?

A 12/12 pitch roof has a pitch angle of 45°.

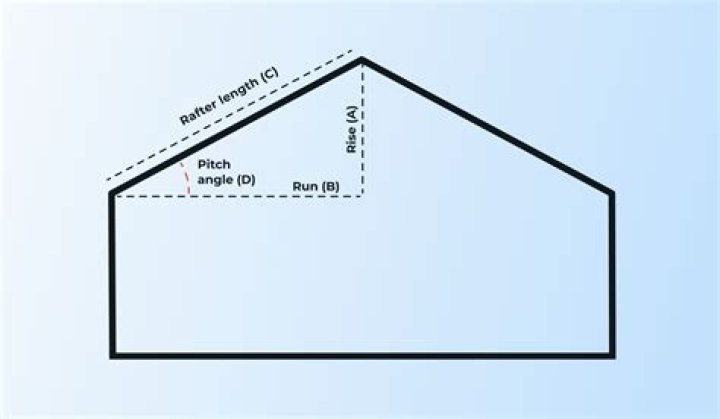

How do you calculate the angle of a roof?

Calculate the tangent of the roof angle by dividing the roof height by the roof width. For example, if the height is 7.5 feet and the width is 15 feet, the tangent of the roof angle is 0.5 because 7.5 divided by 15 equals 0.5.

How many inches is a 6 12 pitch?

An Example of a pitch for roof would be a 6/12 or “6 in 12” slope means that the roof vertical rises 6 inch for every 1 foot or 12 inches of horizontal distance run.

How do you work out a 6 12 pitch?

The angle, or pitch, of a roof is calculated by the number of inches it rises vertically for every 12 inches it extends horizontally. For example, a roof that rises 6 inches for every 12 inches of horizontal run has a 6-in-12 pitch.

Article first time published on

What is the minimum pitch for a polycarbonate roof?

When installing polycarbonate roofing, keep a minimum pitch of 5 degrees so that rainwater runs off towards the gutter preventing moisture collecting on your roof.

What is the angle of a 7 12 pitch roof?

The following diagram will let you easily convert roof pitch to degrees; a 7:12 pitch equals 30.26 degrees.

What is the correct fall for a flat roof?

What Pitch is a Flat Roof? If flat roofs are to work well, they have to have a slope, known as a fall, to shed rainwater. The fall should never be less than 1:80 and preferably about 1:40.

What is the most common roof pitch?

Conventional slope roofs are most common with residential roofs. This means the slope has a pitch between 4/12 and 9/12 on most homes. Roofs with a pitch exceeding 9/12 are called steep slope roofs.

Is a 7/12 roof pitch walkable?

The 7/12 roof pitch is the most common residential roof pitch. it is step enough to shed water quickly and also being non comfortable for walkable.

Is a 5/12 roof pitch common?

But the 5/12 roof pitch is the most common residential roof pitch in which roof rafter rises 5 inch for every 12 inches or 1 foot horizontal distance or run. 5/12 roof pitch step is enough to shed water quickly and also being comfortable for walkable. 5/12 roof pitch express in fraction, percentage, ratio or in angle.

What is the steepest pitch roof?

A 9/12 roof pitch (36.37 degrees). is the steepest standard slope. Anything above a 9 over 12 is considered steep slope.

Is a 12 12 roof pitch steep?

Architecturally described as a “dramatic pitch,” the extremely steep roof (ESR) is considered to have a pitch in excess of 12:12, up to a plumb vertical plane. OSHA defines a “steep roof” as any roof with a rise/run ratio over 4:12 (18.43 degrees).

What is the best roof pitch for snow?

Roofs in snowy climates should have a slope of at least a 10-degree pitch minimum. A steeper angled roof sheds the snow more quickly. While the angle of the roof helps shed snow, adding too many angles to the roof for a more aesthetic effect could cause structural problems with snow shedding in the wintertime.

How much pitch do I need for a lean to roof?

Minimum Slope for Water Drainage Anything with a slope of some kind will cause water to run off the roof. However, an ideal roof drop per foot should be at least one-eighth to one-quarter of an inch per foot. Anything less than one-eighth of an inch may pool on the roof.

What is the minimum slope for a metal roof?

For metal panel roof systems with nonsoldered seams with applied lap sealant, IBC 2018 prescribes a 1/2:12 minimum roof slope. For standing-seam metal roof panel systems, a 1/4:12 minimum roof slope is prescribed.

What angle should a polycarbonate roof be?

When fitting multiwall polycarbonate on a roof a minimum slope of 5° (9 cm/m sheet length) is advised to allow for rainwater drainage. A 10° slope is preferred.

What are the disadvantages of polycarbonate?

The main disadvantage of polycarbonate is that it isn’t resistant to scratches. For example, if a branch should happen to fall on a patio canopy made of polycarbonate, it may be scratched. This problem can be solved by polishing the polycarbonate.

What is the minimum slope for a plastic roof?

Thermoplastic single-ply roofing systems are plastic sheets (PVC, TPO, CSPE) that are welded together with hot air. This creates a shingle sheet that provides the weather protection for the building. Both the Thermoset and the Thermoplastic must be installed at a minimum one- fourth-inch-per-twelve-inch slope.

How do you calculate the slope of a flat roof?

1. First, you need to measure the run of your roof. …
2. Next, you need to figure out the rise. …
3. Now, divide the rise by the run. …
4. Then, divide 1 by your tangent.
5. Finally, multiply this result by 180/π and you’ve calculated your roof pitch!

How do you slope a flat roof for drainage?

For drainage purposes, the current building codes require a minimum two percent slope or a one-fourth unit vertical for every 12 units horizontal. In other words, the roof must slope one-fourth of an inch for every 12 inches.
