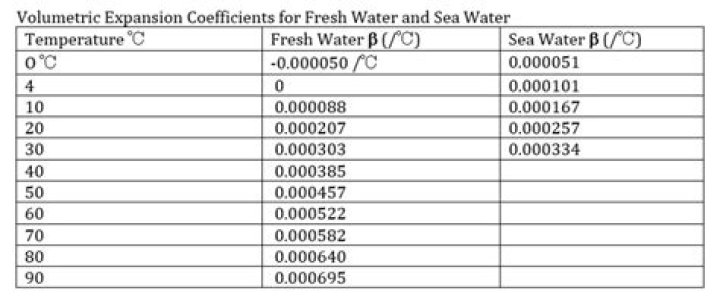

Table 1. Thermal Expansion Coefficients at 20ºCMaterialCoefficient of volume expansion β(1/ºC)Water210 × 10– 6GasesAir and most other gases at atmospheric pressure3400 × 10– 6

What is the expansion of water?

The anomalous expansion of water is an abnormal property of water whereby it expands instead of contracting when the temperature goes from 4°C to 0°C, and it becomes less dense. The density becomes less and less as it freezes because molecules of water normally form open crystal structures when in solid form.

What does a coefficient of thermal expansion mean?

When materials are heated, their size and volume increase in small increments, in a phenomenon known as thermal expansion. … The coefficient ratio of thermal expansion indicates how much a material expands per 1℃ (2.2℉) rise in temperature.

Why is water an exception to thermal expansion?

With relatively few exceptions, all objects expand when they are heated and contract when they are cooled. Perhaps the most important exception to this rule is water. Water contracts as it cools from its boiling point to about 39.2°F (4°C). … This unusual effect explains the fact that ice is less dense than water.

How does thermal expansion work in water?

Thermal expansion changes the space between particles of a substance, which changes the volume of the substance while negligibly changing its mass (the negligible amount comes from energy-mass equivalence), thus changing its density, which has an effect on any buoyant forces acting on it.

What causes water to expand?

Below 4°C, the hydrogen bonds between water molecules become stronger and cause the matter to expand. … The crystalline arrangement is less dense than that of the molecules in liquid form which makes the ice less dense than the liquid water. When water freezes, the volume expands by approximately 9%.

Does water expand when heated?

When water is heated, it expands, or increases in volume. When water increases in volume, it becomes less dense. As water cools, it contracts and decreases in volume. When water decreases in volume, it becomes more dense.

How much does water expand with temperature?

Water expands about four percent when heated from room temperature to its boiling point.

What is the coefficient of area expansion?

Coefficient of Area Expansion is defined as degree of area expansion divided by the change in temperature. This means there is increase in area of an object with the change in temperature. It is characteristic of the substance and it varies with temperature.

What is the coefficient of volume expansion?

γ = V2 – V1 = increase in volume. Therefore, the increase in the volume of a solid of volume 1 m3 for a rise of temperature 1K is called the coefficient of volume expansion of the material of the solid.

Article first time published on

Is coefficient of thermal expansion constant?

The coefficient of thermal expansion (CTE) refers to the rate at which a material expands with increase in temperature. More specifically, this coefficient is determined at constant pressure and without a phase change, i.e. the material is expected to still be in its solid or fluid form.

How do you use thermal expansion coefficient?

1. Find the original length of the object. …
2. Find the coefficient of thermal linear expansion. …
3. Find the initial temperature. …
4. Find the final temperature. …
5. Calculate the change in length. …
6. Verify The Result. …
7. Calculate the Sensitivity Coefficient (Optional)

Why is coefficient of thermal expansion important?

Coefficient of Thermal Expansion (CTE) is a measure of the expansion or contraction of a material as a result of changes in temperature. … This is important because the volumetric Coefficient of Expansion will be much higher than the linear CTE for the same product under the same test conditions.

What are the units for coefficient of thermal expansion?

The coefficient of thermal expansion measures the fractional change in size per degree change in temperature at a constant pressure and is expressed in 1/K or K⁻¹ (reciprocal kelvin) .

Does water expand more when heated or frozen?

Long Answer: Normally, things expand when heated and contract when cooled. Water is an exception to this rule. Even though water does expand when heated and contract when cooled at most temperatures, water expands when cooled and contracts when heated between 4 degrees Celsius and 0 degrees Celsius.

How much does water expand when heated calculator?

In a closed or “water-solid” water heating system, thermal expansion pressure equals approximately 2.5 % of volume for every 100°F rise.

Why does ocean water expand when heated?

The warming of Earth is primarily due to accumulation of heat-trapping greenhouse gases, and more than 90 percent of this trapped heat is absorbed by the oceans. As this heat is absorbed, ocean temperatures rise and water expands. This thermal expansion contributes to an increase in global sea level.

Why does water expand when frozen?

When water freezes solid, at 32 degrees, it expands dramatically. … Each water molecule is two hydrogen atoms bonded to one oxygen atom (H2O). The H2O molecule’s slightly charged ends attract the oppositely charged ends of other water molecules. In liquid water, these “hydrogen bonds” form, break, and re-form.

Why is water expanding when it freezes?

The fact that water expands when frozen is also really important to life on Earth. Because it expands, ice takes up more space than water (it is less dense). … Though it may be hard to imagine, this layer of ice actually helps to keep fish, other animals and plants warm in ponds and lakes during the winter.

What is freezing point of water?

We’ve all been taught that water freezes at 32 degrees Fahrenheit, 0 degrees Celsius, 273.15 Kelvin. That’s not always the case, though. Scientists have found liquid water as cold as -40 degrees F in clouds and even cooled water down to -42 degrees F in the lab.

What is thermal expansion answer?

thermal expansion, the general increase in the volume of a material as its temperature is increased.

What is thermal expansion discuss the types of thermal expansion?

Thermal expansion refers to the expansion or contraction of the dimensions of the solid, liquid or gas when their temperature is changed. There are three types of thermal expansion depending on the dimension that undergo change and that are linear expansion, areal expansion and volumetric volume.

What is thermal expansion example?

Thermal expansion is linked to a change of temperature. The higher the temperature difference, the more the object will expand. Second, it is dependent on the material. For example, in a thermometer, the expansion of alcohol is much more significant than the expansion of the glass containing it.

How much does water expand at 100 degrees?

How much does water expand at 100 degrees? In a closed or “water-solid” water heating system, thermal expansion pressure equals approximately 2.5 % of volume for every 100°F rise.

What is the thermal coefficient of steel?

“The coefficient of thermal expansion for steel is 0.00000645in/in/deg F. Doesn’t sound like much but when you run out the numbers it comes to . 405504 ft/mile/deg.

How much does water expand to steam?

As we said above, when water evaporates, it expands 1600 times larger in volume to become steam. When it condenses, it compresses back into tiny droplets of water.

Does thermal expansion coefficient change with temperature?

Thermal expansion is the tendency of matter to change in volume in response to a change in temperature. … The degree of expansion divided by the change in temperature is called the material’s coefficient of thermal expansion; it generally varies with temperature.

How is thermal expansion measured?

The most common example of a dilatometer is a mercury thermometer, which measures the volume and the change in volume of the trapped mercury which is used to determine the temperature of the surrounding environment. Dilatometers can also be used to calculate the coefficient of thermal expansion.

What is the coefficient of thermal expansion for copper?

MaterialαCopper16.720 (0–1000 °C)Diamond1.3Duralumin23

What is the formula of coefficient of thermal conductivity?

SI unit of thermal conductivityWatts per meter-kelvin (W.m-1K-1)Dimensional formulaM1L1T-3Θ-1

Which material has highest coefficient of thermal expansion?

Aluminium has high coefficient of thermal expansion of about 22×10-6K-1. Aluminium has an elastic modulus of 70 GPa.
