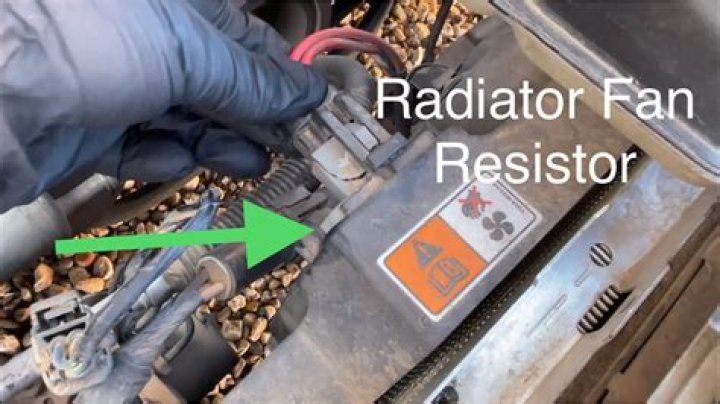

The purpose of the cooling fan resistor is to remove heat from the engine’s coolant and from the A/C

How do I know if my cooling fan resistor is bad?

1. Engine overheats. One of the first symptoms of a potential problem with the cooling fan resistor is engine overheating. …
2. Cooling fan speed issues. …
3. Cooling fans never turn off.

What happens when cooling fan relay goes out?

One of the first symptoms commonly associated with a bad or failing cooling fan relay is an engine that runs hot or overheats. … If the relay shorts or fails, it will not be able to supply the power for the fans to operate and keep the engine running at normal temperatures.

Which resistor is used in fans and why?

What is a Blower Resistor? Blower resistors are resistors which are used to control the fan speed of automotive blowers. The fan speed can be changed either by switching the blower resistor resistance mechanically using a rotating lever, or electronically by the air conditioning system.

What happens when radiator fan doesn't work?

What happens if the cooling fan stops working? If your cooling fan stops working, your engine could overheat. This could cause damage to your engine parts. It’s a serious issue and needs to be looked at by a garage.

Will a resistor slow a fan?

Whatever the truth of this situation, a safer option for slowing down a fan is to place a resistor in series with the fan. … So to achieve a voltage drop of 5V, we would need a resistor with value of 42 Ohms, and capable of dissipating 0.6W of power.

Can you drive without radiator fan?

Yes, technically your engine does not need a cooling fan to operate. … If the radiator does not have cool air blowing on it constantly, it will overheat eventually, so you’d need the perfect combination of weather and traffic to drive effectively without a radiator fan.

How do you slow down a fan motor?

With a Shaded Pole motor, you can simply reduce the voltage, say with a light dimmer and the motor produces less torque, then with less torque the air friction on the fan blades causes it to slow down, which in turn moves less air.

How do I know if I need a blower motor or a resistor?

Blower Motor Resistor Test Typically, if the fan will work on some speeds but not on others, the resistor is suspect. Okay, let’s say there’s no melting going on, but your fan doesn’t work on all speeds. Typically, if the fan will work on some speeds but not on others, the resistor is suspect.

Why does my car have two radiator fans?

The cooling fan in the engine compartment should turn on to pull air through the radiator and A/C condenser. On many vehicles, there may be two fans: a main cooling fan for the radiator, and a second fan for the condenser. Both fans should come on when the A/C is on. … The engine may also run hot and overheat, too.

Article first time published on

What causes a fan relay to burn out?

The following causes are probable. If overvoltage is applied to the coil, the coil’s insulating film will be destroyed, and short-circuiting will cause high temperature. The color of the coil will change, and the resin around the coil will melt.

Will bad temp sensor cause fans to not work?

Cooling Fan Operation A faulty coolant temperature sensor may result in a fan not being properly used, which may cause the engine to overheat.

Does the coolant temp sensor control the fan?

The sensor works by measuring the temperature that’s being given off by the thermostat and/or the coolant itself. The temperature is then sent to the on-board control system. … As the control system receives the temperature from the CTS, it may trigger the cooling fan to either shut off or turn on.

Can a bad thermostat cause radiator fan not to work?

Broken Thermostat Thermostats are known to go bad and cause all sorts of cooling issues. … If this thermostat doesn’t open when the engine reaches the working temperature, the coolant will stay inside the engine block and the engine will start to overheat. This will result in the radiator fan not working.

Why does my car sound like a loud fan?

Mechanical clutch driven fans are more likely to produce excessive fan noise, usually due to a worn clutch inside the fan assembly. … Worn bearings, bent or broken blades, and unbalanced rotating assemblies can cause a fan to screech, howl, or otherwise make noises it shouldn’t.

Do you need a fan clutch?

The sole purpose of your engine’s fan system is to cool it down, and without the fan clutch activating, the fan itself cannot turn and keep your engine at the proper temperature for peak performance. The fan clutch is a thermostatic device, meaning that it’s operated by the heat produced under the hood.

What resistor do I need for 12V fan?

You have a 12V @ 10A = 120 W power supply. If the fan becomes a short circuit, it will pull all 10 A. In this case, you would need a 120 W resistor to “protect” the fan.

How do you reduce voltage from 12V to 7v?

Easiest answer is a string of diodes (say 6 or 7 depending on the diode type) placed in series with the 12VDC output. Make sure the diodes are rated for at least 2–3 times the current you need from the adapter.

How can I slow down my 12V fan speed?

Get a three 1.8 ohm 2 watt resistors, connect them in parallel and put them in series with your fan (put them in the air stream of the fan to help cool them). That should slow your fan down and reduce the load. 12V at 5A is 60W.

Should I replace blower motor and resistor?

There is still a chance that the blower motor control could be faulty, but if the control knob feels good and all the fuses and relays are good, chances are you need to replace the blower motor resistor.

What causes car AC fan to stop working?

Cooling fans can stop working properly for a number of different reasons; they might have blown fuses, an electrical short, or could have been cracked by debris from the road. Fortunately, this is fairly simple to fix; your mechanic should be able to replace it quickly and get you back on the road.

Why does my blower motor fuse keep blowing?

Blown fuses If the blower motor relay develops any sort of problem that hinders its ability to properly limit and distribute power, it may cause the blower motor fuse to blow. Any sort of electrical spikes or excessive current from a bad relay will blow the fuse and cut power in order to protect the system.

How do I control the speed of my exhaust fan?

Fan speed is controlled with thyristor or transformer speed controllers. Thyristor speed control. Thyristor speed controllers provide smooth manual motor speed control and air flow control respectively. Operation of the thyristor speed controllers is based on output voltage control with a triac voltage regulator.

Does AC turn on radiator fan?

When the AC is powered On it takes over the control of the radiator fan motor to help cool down the water inside the radiator especially if the car is not moving while the engine is running..

Should both fans be on when AC is on?

Answer: You can— and should— run your A/C and ceiling fan together. Doing so can help lower your cooling costs each month, but only if you’re using them right.

Does the radiator fan affect the AC?

Poor A/C performance This is because the radiator cooling fan creates double the amount of air that the condenser fan. The radiator fan pulls air through the condenser, which removes the heat vapor of the refrigerant inside. If the radiator fan fails, it will affect the AC performance.

How do you tell if a relay is burned out?

With the relay removed from the fuse box, the multimeter set to measure DC voltage and the switch in the cab activated, first check to see if there are 12 volts at the 85 position in the fuse box where the relay plugs in (or wherever the relay is located). If there isn’t, check to see if the appropriate fuse has blown.

What makes a relay get hot?

It is normal for the relay coil to be slightly hot during normal operation, but if the contacts are hot, it means that the service life of the relay has expired and should be replaced. … If the contacts are not replaced, the contact resistance will heat up and cause further oxidation.

Why is my cooling fan not working laptop?

Fan Failure One of the most common causes of the “cooling system” message is a malfunctioning cooling fan. Your laptop fan could stop working if it becomes too clogged with dust, or suffers damage from an accidental drop. … Use some canned air to blow dust out through the air vents.

What sensor controls the temperature gauge?

To troubleshoot your car’s temperature gauge, you need to know how it works. The temperature gauge reading starts out as a reference voltage that is sent to the coolant temperature sensor. This sensor is nothing more than a thermistor — a variable resistor that changes resistance with temperature changes.

Why does my radiator fan not turn on?

The most common reasons a radiator fan is not working are luckily due to a blown fuse, bad relay, or a broken wire. It can also be caused by a faulty coolant temp sensor, low coolant level or the fan itself can be damaged.
