Remember that only one fourth of the object is removed with a half section, whereas half of the object is generally removed with a full section.

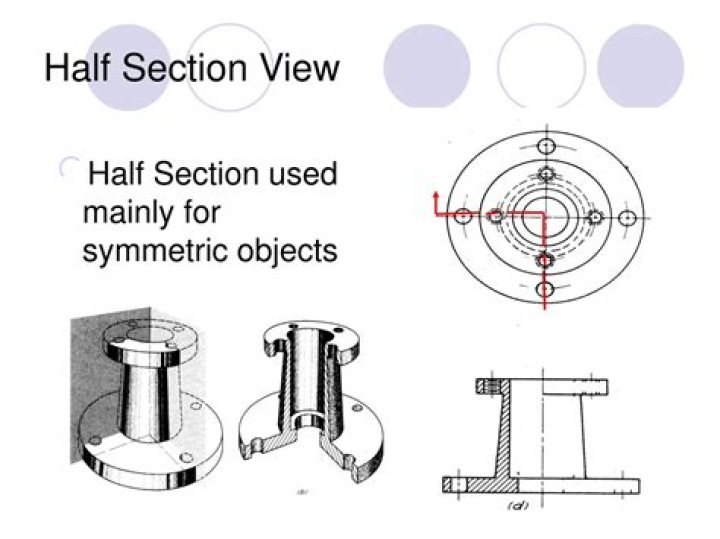

What is a half section view?

A half-section is a view of an object showing one-half of the view in section. Half Section. • Symmetrical parts can be shown in half sections.

What are the different types of section views?

• Full sections. …
• Half sections or views. …
• Offset sections or views. …
• Broken out sections or broken views. …
• Revolving sections or view. …
• Removed sections.

What is a full section?

A full section is a complete, detailed cross sectional drawing of a building, usually around a load bearing wall.

What is a full section front view?

The view obtained after removing the front half portion of an object is called a Full Sectional Views or Front Sectional Views or Simply Sectional Elevation. When the cutting plane cuts the object lengthwise, full sectional front view is obtained. It is also called longitudinal section.

What is the difference between the section line and the centerline?

Centre lines are drawn to indicate the exact centre of a component being drawn. They are made from a series of lighter long and short dashes. Section lines are special lines placed on a drawing which indicate the area of the drawing through which an imaginary cut has been made to reveal internal details.

How do you draw a full section view?

1. Click Layout tab Create View panel Section drop-down Full. …
2. Click the view you want to use as the parent view. …
3. Click in the drawing area to indicate the start point of the section line.

What is a section view in architecture?

A ‘section drawing’, ‘section’ or ‘sectional drawing’ shows a view of a structure as though it had been sliced in half or cut along another imaginary plane. … Plan drawings are in fact a type of section, but they cut through the building on a horizontal rather than vertical plane.

How do you draw a half section view?

1. Click Layout tab Create View panel Section drop-down Half. …
2. Click the view you want to use as the parent view. …
3. Click in the drawing area to indicate the start point of the section line. …
4. Click in the drawing area to indicate end point of the first segment of the section line.

What is a section view drawing?

∎ A section view is a view used on a drawing to. show an area or hidden part of an object by. cutting away or removing some of that object.

Article first time published on

What is full section and half section?

If the cutting plane is passed halfway through an object, and one-quarter of the object is removed, the resulting section is a half section. … Remember that only one fourth of the object is removed with a half section, whereas half of the object is generally removed with a full section.

What is the purpose of a section view?

A sectional view or a section looks inside an object. Sections are used to clarify the interior construction of a part that cannot be clearly described by hidden lines in exterior views. By taking an imaginary cut through the object and removing a portion, the inside features may be seen more clearly.

What are the 3 standard views in an orthographic drawing?

Although six different sides can be drawn, usually three views of a drawing give enough information to make a three-dimensional object. These views are known as front view, top view and end view.

When should a section view be used?

A sectional view or a section looks inside an object. Sections are used to clarify the interior construction of a part that can not be clearly described by hidden lines in exterior views. By taking an imaginary cut through the object and removing a portion, the inside features may be seen more clearly.

What are the advantages of Auto CAD?

• Accurate and Reduces Errors. The principle on which AutoCAD works is a dynamic engineering model. …
• Save Time & Money. …
• Easier Data Transfer. …
• Controllable in nature. …
• Database for manufacturing. …
• Easier Import/ Export of files. …
• Apply Point Clouds. …
• Layering feature.

What is the purpose of a removed section view?

Removed section views show slices of the model at selected locations along a drawing view.

What is a section view in Autocad?

A model documentation section view is a projected view from an existing drawing view, where you use a section line to cut through the drawing view in order to reveal what is inside.

Which is bigger part or section?

To me, section implies some formal division between areas of an object or place, whereas part is a more general term which doesn’t have a clear boundary. Neither say anything about size. Both of your examples are grammatically correct, but the word choice gives you some nuance.

Is a type of section where the cutting plane is drawn vertically?

Sectional Front View: When an object is cut by a vertical cutting plane or Auxiliary Vertical Plane, the front view obtained is called the Sectional Front View.

What is the difference between the section line and the center line Mcq?

Explanation: The ends of a section line are thickened so as to distinguish it from the centre line. The rest of the section line has the same thickness and dimensions as that of the centre line. The thickening of the ends in the section line is also used to denote the direction of viewing.

Why are lines drawn in different sizes and thickness?

Every line is drawn at different thicknesses and darkness to express contrast as well as importance. Lines that are less important are thin and light.

What is the definition of a centerline?

Definition of centerline : a real or imaginary line that is equidistant from the surface or sides of something.

What is half sectional front view?

A half-section is a view of an object showing one-half of the view in section, as in the drawing below. … The lines are thin and are usually drawn at a 45-degree angle to the major outline of the object.

How do you create a half section view in Inventor?

1. Click View tab Appearance panel Half Section View .
2. Select any plane or planar face as the cutting plane.
3. Right-click and select Flip, if necessary, to change the direction of the section.
4. Drag the plane or enter a value in the field to change the position.
5. Click Continue.

What is Section in civil engineering?

In terms of design, the term ‘section’ typically refers to a view of a structure as though it has been sliced in half or cut along another imaginary plane, which is generally, but not always a vertical plane. This is represented as a ‘section drawing’ or ‘sectional drawing’.

What is Section in interior design?

Sections are technical drawings through a vertical slice of a space. The difference from the elevations is that section show two or more adjacent rooms allowing to see the thickness of the walls.

What is the difference between an elevation and a section?

An Elevation drawing is drawn on a vertical plane showing a vertical depiction. A section drawing is also a vertical depiction, but one that cuts through space to show what lies within.

What is a section elevation?

A sectional elevation is a combination of a cross section, with elevations of other parts of the building seen beyond the section plane. Geometrically, a cross section is a horizontal orthographic projection of a building on to a vertical plane, with the vertical plane cutting through the building.

What type of section view is AA?

The cutting plane line is defined as A-A, and the section view is defined as view A-A. All surfaces directly visible must be shown in a section view. In Figure 4-43 the back portion of the object is not affected by the section view and is directly visible from the cutting plane.

What are the types of section plane?

• Vertical Section plane.
• Horizontal Section Plane.
• Profile Section plane.
• Auxiliary Section plane.
• Oblique Section plane.

How much of an object is imagined to be cut away in a half section?

12” (3.0mm). Usually, all visible edges behind the cutting plane should be shown. In a half section, ¼ of the object is imagined to be cut away.
