Dimensions and Physical Characteristics of Copper Tube TYPE KNominal or standard size (inches)Nominal dimensions (inches)1/40.3750.3053/80.5000.4021/20.6250.527

Is copper tubing sized by ID or OD?

In the plumbing trade, the size of copper tubing is measured by its outside diameter in millimeters. Common sizes are 15 mm and 22 mm. Other sizes include 18 mm, 28 mm, 35 mm, 42 mm, 54 mm, 66.7 mm, 76.1 mm, and 108 mm outside diameters.

What is the outside diameter of 1/4 inch ACR tubing?

ApplicationAir Conditioning, Refrigeration, Natural Gas, LP Gas, Compressed AirInner Tube Diameter1/4″Length20 ftMaterialCopperOuter Tube Diameter3/8″

What is OD in copper tubing?

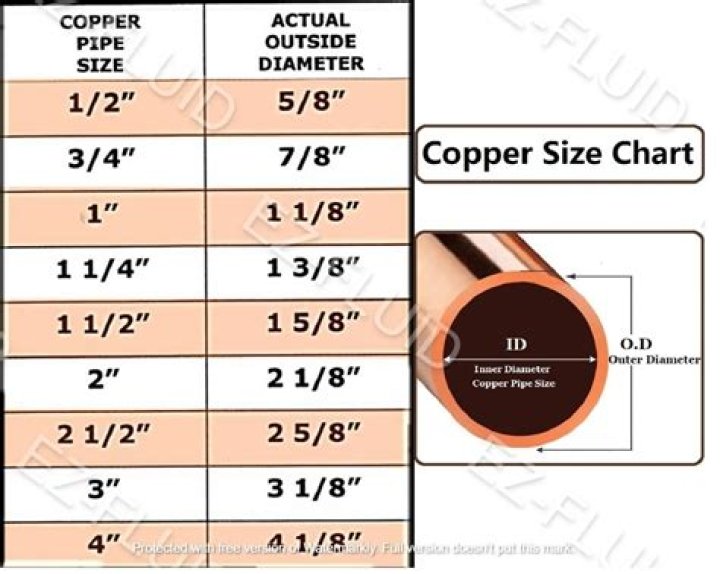

Copper Pipe Sizing The actual outside diameter (OD) of rigid copper type is always 1/8 inch larger than the nominal size, or what the pipe is called. For example, a 1/2-inch copper pipe has an outside diameter of 5/8 inch. It is true with all three common types of new pipe, K, L, and M.

How do you measure the diameter of a pipe?

To find it, measure around the circumference of the pipe with flexible measuring tape. Divide the circumference by pi, or about 3.14159. For example, if the circumference is 12.57 inches (319 mm), you would divide by pi, and get an outside diameter of about 4 inches (100 mm).

How do I know what size copper pipe I have?

The nominal size of copper pipe, whether supply lines or DWV, is always 1/8 inch less than the OD measurement. For example, copper pipe that measures 5/8 inch OD, is called 1/2- inch pipe. The ID varies because wall thickness varies. Type K has the thickest wall, followed by Type L, Type M and DWV.

Is CTS a ID or OD?

By the outer diameter (OD) for smaller fittings measuring 1/4, 3/8, or 1/2 inch. By the inner diameter (ID). The ID size is referred to as CTS, which stands for copper tube size.

What size is normal copper water pipe?

The most common copper pipe sizes are ½ and ¾ inches. Type M ½ inch measures 0.028” in wall thickness whereas type L ½ inch measures 0.04” in wall thickness. Type M ¾ inch measures 0.032” in wall thickness while type L ¾ measures 0.045”.

What is the OD of inch and a half copper?

1/2-inch pipe is the measurement of copper pipe that is 5/8 inch OD.

What size copper tubing is used for HVAC?

Copper tubing used in air conditioning systems ranges from 1/8-inch to 1-3/8 inches in nominal size. The nominal size is the outside diameter of the pipe.

Article first time published on

How thick is ACR copper?

Nominal Size (inches)Annealed (A) or Drawn Temper (D)Wall Thickness (inches)5/8D0.0403/4A0.035A0.042D0.042

What is ODF pipe size?

ODF means Outside Diameter Female or it refers to as Solder or Sweat connection.

What is the circumference of a 1 inch copper pipe?

Nominal “1 inch” standard copper pipe has an outside diameter of 1.125″, which would make for a circumference of 3.534″. Nominal “3/4 inch” standard copper pipe has an outside diameter of 0.875″, which makes for a circumference of 2.749″.

What is pipe diameter?

When it comes to measurement of pipe, it is measure by the inside diameter, often called the nominal diameter. Nominal Pipe Size (NPS) is a North American set of standard sizes for pipe. The term nominal refers to pipe in non-specific terms and identifies the inside diameter with a non-dimensional number.

How do you find the diameter of a pipe from the circumference?

Measure circumference using a flexible tape and divide the outside circumference by 3.1415. Here the circumference is about 1/32″ (0.03″) less than 6″ = 5.97″. So 5.97 ÷ 3.1415 = 1.900″ diameter – 1 1/2″ nominal pipe.

Is CTS the same as PEX?

Notes: PEX tubing sizes are denoted by CTS (copper tubing size), not OD (Outside Diameter) or ID (Inside Diameter). OD of PEX, copper and CPVC pipe with the same size (CTS) is the same. This is why push fittings can be used with all of these pipes.

What is CTS and IPS?

CTS stands for Copper Tubing Size while IPS stands for Iron Pipe Size. IPS is larger in diameter compared with CTS (1” CTS versus 1” IPS).

What does CTS mean for tubing?

CTS stands for Copper Tube Sizing. This is different from other PVC or CPVC pipes, which commonly use NPS, or Nominal Pipe Size, dimensions. When compared to CTS, NPS is larger in diameter. … CPVC CTS pipe is used for hot and cold water distribution in pressure systems that do not exceed 180 degrees Fahrenheit.

What is the difference between type ML and K copper tubing?

Type K is the heaviest. Type L is medium weight and used most often for water lines in homes. Type M is thinner and is used underground or for light domestic water lines if local codes allow.

What is the difference between copper pipe and copper tubing?

Tubing is usually more expensive than pipe due to tighter manufacturing tolerances. Interestingly, while the stated and measured OD’s of tubing are almost exact in most cases, copper tubing generally has a measured OD that is 1/8” larger than stated OD. As such, maybe it should be called copper pipe.

What size copper pipe is used for shower?

Nearly all tub and shower faucets require a one-half inch diameter water supply pipe on both the hot and cold supplies.

What copper tubing is used most in refrigeration and air conditioning work?

Hardened copper tubing is used for water lines, commercial refrigeration and HVAC. This type of tubing is joined using grooved, compression, crimped, or sweat connections. The runs are mostly straight except where it must be bent to go around construction.

What is the maximum length of refrigerant piping?

Length is general guide. Lengths may be more or less, depending on remaining system design factors. Maximum linear (actual) length = 200 feet. Maximum linear liquid lift = 60 feet.

What is the outside diameter of 1/2 ACR tubing?

Sub Brand:CerroPure®Nominal Size:1/2 INOutside Diameter:1/2 INInside Diameter:0.43 INLength:20 FT

Which type of copper tubing has the same dimensions as Type ACR?

Which type of copper tubing has the same dimensions as ACR? Type L.

Is copper pipe pure copper?

Copper pipe is almost pure copper manufactured to the requirements of ASTM B 42 – Standard Specification for Seamless Copper Pipe, Standard Sizes.

What is ODF fitting?

ODF-Outside Diameter Female, as in some Schrader Access fittings. NPTF- National Pipe Thread Female, as in the threads on a PVC 3/4 female adapter for drains.

What is the circumference of 1 1 4 pipe?

Standard Nipples and Pipe SizingPipe SizeOutside Diameter (O.D.)Circumference1″1.315″4.131″1 1/4″1.660″5.215″1 1/2″1.900″5.969″

Is pipe size diameter or radius?

Pipe was originally used for the movement of water, and therefore the ID (inside diameter) was the critical dimension. The nominal dimension for pipe is the ID. So, 1½ inch pipe is NOT 1½ inch outside diameter, but instead is nominally, (approximately) 1½ inch inside diameter.
