The casing forms a major structural component of the wellbore and serves several important functions: preventing the formation wall from caving into the wellbore. isolating the different formations to prevent the flow or crossflow of formation fluid.

What is the difference between casing and a liner?

Casing is very necessary for smooth drilling operations in deep and ERD wells so that hole collapsing may be got rid of. Liner is a string of casing which does not extend to the surface but is hung from inside the previous casing string and is cemented in place.

What are different types of casing?

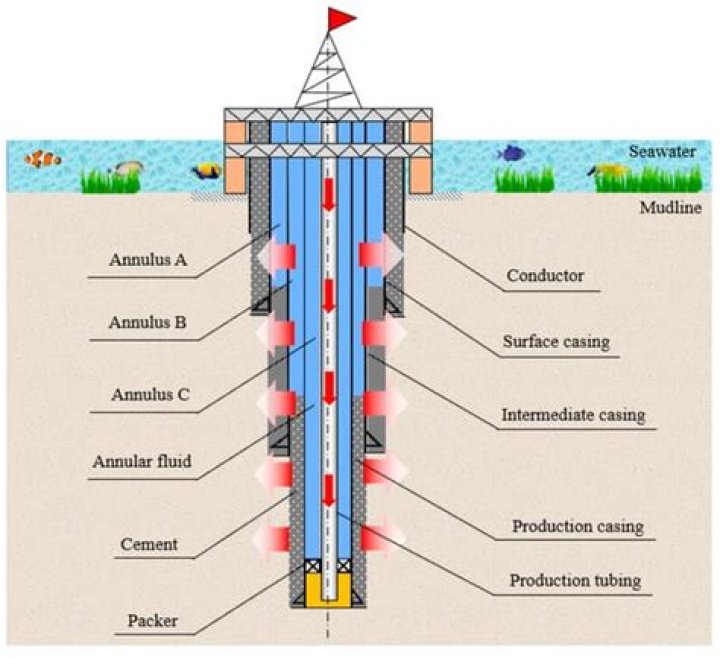

The five types of casing string are conductor casing, surface casing, intermediate casing, casing liner, and production casing.

What is the purpose of tubing?

Tubing is the normal flow conduit used to transport produced fluids to the surface or fluids to the formation. Its use in wells is normally considered a good operating practice.

What is the difference between drill pipe and casing?

Drill pipes are durable steel pipes that conduct the force to the drill bit when drilling process. … Casing refers to the casing pipe which is tubing that is set inside the drilled well to protect and support the well stream.

How is well casing installed?

1. Drill a borehole about 10 feet into the rock.
2. Flush the hole with clean water.
3. Fill the rock interval with grout, and immediately set the casing into the hole. …
4. Drill through the grout, plug in the lower casing, and progress into the aquifer.

What is well casing pipe?

Casing provides support for the wall of the well so that loose rock fragments or unconsolidated sand and gravel through which the well has penetrated do not collapse into the well shaft. … The casing protects the electrical wires, pull cable and water tubing/piping that are connected to the submersible pump.

Where do we set casings during drilling?

Similar to the bones of a spine protecting the spinal cord, casing is set inside the drilled borehole to protect and support the wellstream. The lower portion (and sometimes the entirety) is typically held in place with cement.

How does a packer create the annulus tubing seal?

Once the packer is installed and the wireline is retrieved, a seal housing (similar to an overshot) is run in the hole on the bottom of the production tubing. The housing has internal seals that, when landed on the polished nipple, create a seal between the tubing and the annulus.

What is the difference between pipe and a tube?

Tubes can come in different shapes such as square, rectangular and cylindrical, whereas piping is always round. The circular shape of the pipe makes the pressure force evenly distributed. Pipes accommodate larger applications with sizes that range from a ½ inch to several feet.
