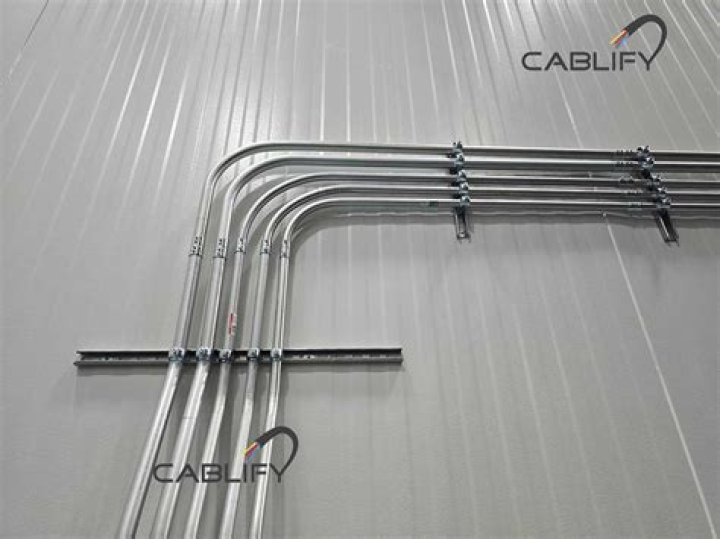

Also known as electrical metallic tubing (EMT), this conduit has thin walls that easily bend with a conduit bender and can be cut with a hacksaw.

What is a thin wall conduit?

Definition of thin-wall conduit : light steel tubing for enclosing electric wiring — compare rigid conduit.

What wall thickness is EMT?

Trade SizeMetric DesignatorNominal Wall Thickness21270.0571-1/4350.0651-1/2410.0652530.065

Is EMT conduit thin wall?

EMT is also called “thin-wall” conduit because it is thin and lightweight, especially compared to RMC. EMT is rigid but can be bent with a simple tool called a conduit bender.

What is the difference between EMT and rigid conduit?

EMT (Electrical Metallic Tubing) is thin-walled metal tubing that wiring is run through and is connected by various press fit couplings usually secured by a set screw. Rigid conduit is heavier gauge tubing that can be threaded and is used in heavier duty applications.

What are the basic types of EMT fittings?

• Steel EMT Set Screw Connectors.
• Steel EMT Set Screw Couplings.
• Steel EMT Compression Connectors.
• Steel EMT Compression Couplings.
• Steel EMT Compression to Threaded Rigid Couplings.
• Steel EMT Set Screw to Rigid Set Screw Couplings.
• Raintight Compression Connectors.
• Raintight Compression Couplings.

What are 3 types of conduit?

• Rigid Metal Conduit (RMC)
• Electrical Metallic Tubing (EMT)
• Intermediate Metal Conduit (IMC)
• Flexible Metal Conduit (FMC)

What is EMT conduit used for?

EMT conduit is a raceway solution which allows for future wiring changes and provides excellent mechanical protection to conductors and cables. EMT provides EMI shielding and is 100% recyclable. Allied Tube & Conduit®’s mission is to be the leader in providing solutions and more choices for customers.

Is EMT aluminum or steel?

EMT is generally made of coated steel, though it may be aluminum. EMT is available in trade sizes 1/2″ through 4″, and 10′ and 20′ lengths. Some manufacturers also produce EMT in a range of colors for easy system identification.

What is electrical EMT?

Electrical Metallic Tubing (EMT) is lightweight steel tubing that is easy to install and can be bent or cut with the appropriate tools. EMT conduit is more affordable than IMC or GRC, but its thin walls are more easily punctured. … Galvanized Rigid Conduit (GRC) offers the highest level of protection at a higher cost.

Article first time published on

What is the minimum size of EMT?

Trade size, inchesMetric desig- natorBendingMinimum radius378133½9115410316

What is the wall thickness of conduit?

Possible wall thicknesses include “light” 2.0 mm, “medium” 2.6mm, and “heavy” 3.2mm which implies inner diameter of 17.4mm (0.69″), 16.5mm (0.66″), 15.3mm (0.61″)

What is the id of 1.5 EMT?

Conduit Trade SizeInside Diameter(in)(mm)(in)1271.0491 1/4351.3801 1/2411.610

How much thinner is EMT than rigid?

Because of its thinner walls, large EMT weighs approximately 40 percent less than similar-sized Galvite® Electrical Rigid Metal Conduit-Steel (Galvite® ERMC-S). Thinner walls also provide more than 20 percent extra interior space for wiring when compared to identically sized Galvite® ERMC-S.

Is EMT conduit galvanized?

Electrical Metallic Tubing (EMT) unthreaded steel conduit features hot-galvanized construction to resist corrosion. It also offers easy bending, cutting, and joining during installation.

Can EMT fittings be used on rigid conduit?

EMT connectors are permitted to be assembled into threaded entries of boxes, conduit bodies or internally threaded fittings having tapered threads (NPT). EMT fittings designed to NEMA FB 1, “Fittings, Cast Metal Boxes, and Conduit Bodies for Conduit and Cable Assemblies,” have straight threads (NPS).

Can I use regular PVC as conduit?

Yes, technically, PVC pipe can be used as a conduit. In fact, grey PVC pipe is manufactured precisely for this purpose. You could use PVC made for water since it’s basically the same thing but with a different gauge (thickness).

What is Greenfield conduit?

Flexible Metal Conduit, commonly referred to Greenfield, is available in either Reduced Wall Steel (RWS) or more often Reduced Wall Aluminum (RWA). The main difference between Flexible Metal Conduit and Liquid Tight is the absence of the PVC sheathing and the integrated copper ground bonding strip.

Can I use PVC conduit outside?

PVC conduit provides protection for electrical work that is buried underground. Out of the many conduit forms available, PVC conduit is considered best for outdoor applications. … Available in a variety of thicknesses or grades, PVC is well suited for direct burial or above ground work.

What are the 4 types of EMT connectors?

Bridgeport offers set screw, compression, push and raintight connectors and couplings for your EMT conduit installations.

What are the two main types of EMT fittings?

• Metallic couplings are for metallic conduit. You secure them with set screws or via compression.
• Threaded couplings screw onto couplings that have threaded ends.
• Nonmetallic couplings are for nonmetallic conduit and are usually attached with solvent cement.

What fitting is used between 2 conduits?

Couplers are used to join two lengths of non-flexible conduit together. Use a metallic coupler with metal conduit. Metallic couplers are available in both set screw and compression styles.

Is EMT ferrous?

Electrical Metallic Tubing — EMT (ferrous metal). Also commonly called thin-wall, EMT is a listed steel raceway of circular cross section, which is unthreaded and normally 10 feet long (Photo 3). The outside corrosion protection is zinc-based, and the inside features an approved corrosion-resistant organic coating.

Is EMT magnetic?

Aluminum is non-magnetic, and a superior grounding path for increased safety.

What is EMT made of?

Electrical metallic tubing (EMT) is made from coated steel or aluminum and is a more economical and thinner-walled option than other conduit. This conduit type doesn’t offer the same protection as rigid metal conduit but is lighter and can be paired with conduit fittings, eliminating the need for threading.

Does EMT conduit rust?

Typical EMT Type conduit will resist rust for a few years. It is however inevitable that it will rust. The most likely place for rust to start will be at the ends where it has been cut or along the surface where the finish has been scratched.

What is an EMT pipe?

EMT is a common, thinly-walled conduit pipe that is often chosen in place of galvanized rigid conduit. It is made out of coated steel and aluminum. The reason it is so popular is due to its affordability and flexibility.

Who manufactures EMT?

Wheatland Tube manufactures steel EMT in America, using the latest technology and protocols to ensure the highest quality. Our proprietary smooth ID coating ensures up to 20% faster wire pulling.

What is MC cable?

MC Cable Definition MC Cable, by most common definition, is a factory assembly of one or more insulated circuit conductors enclosed in an armor of interlocking metal tape or a smooth or corrugated metal sheath.

Can EMT pipe be welded?

Even when used by beginners, MIG welding makes nice, even weld beads. Electrical-mechanical tubing, or EMT, is galvanized steel tubing commonly used as conduit for running electrical wires through a building. … Welding EMT is normally accomplished through metal inert gas welding, or MIG.

How many feet is a 3/4 lift EMT?

Steel Electrical Metallic Tubing (EMT) 10 Ft. Lengths (Lift = 5000 Ft.)
