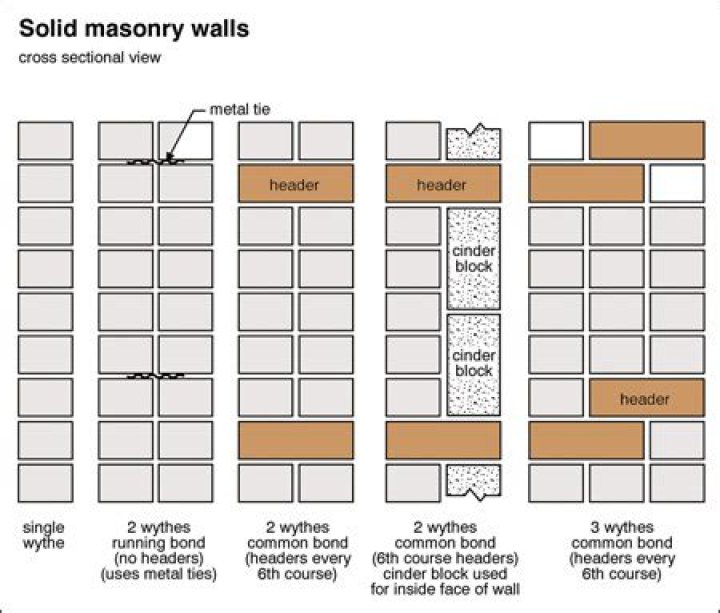

Solid masonry, also known as solid brick or double brick construction, consists of two layers of brick walls, or an inner wall of cinder or concrete blocks and an outer layer of brick. This double-wall is the skeleton and support of the structure.

How can you tell if a wall is solid masonry?

Solid brick walls usually have heavy stone or concrete lintels along with masonry arches. Masonry arches are typically composed of two rows of end-on bricks in an arch over the window. You can also check the depth of windowsills and doorjambs.

What are the types of masonry?

• Stone Masonry.
• Brick Masonry.
• Block Masonry.
• Veneer Masonry.
• Gabion Masonry.
• Composite Masonry.
• Reinforced Masonry.
• Bagged Concrete Masonry.

Where is solid masonry used?

Masonry is generally used to form the walls and other solid elements of buildings and structures such as bridges, tunnels and so on. It may be load bearing, forming an integral part of the structure, or non-load bearing, such as a partition wall or cladding.

What is a solid brick wall?

What is a solid wall? A solid brick wall is exactly like it sounds. Typically two bricks wide, with each row of bricks interlocking to form a completely solid 9 inch brick wall. There is no gap between the bricks to insulate, and so you must either add insulation to the inside of the property, or do so externally.

What is masonry construction type?

The common materials of masonry construction are brick, building stone such as marble, granite, and limestone, cast stone, concrete block, glass block, and adobe. Masonry is generally a highly durable form of construction. … A person who constructs masonry is called a mason or bricklayer.

What is brick veneer vs solid brick?

The biggest difference between brick veneer and solid brick is the main building support. Solid masonry is the structural support of the building. With brick veneer, the structural support comes from the concrete, steel, or wood that makes up the backup wall, and the brick is on the exterior for aesthetic purposes.

Is exterior brick structural?

In a structural brick wall system, however, the brick serves as both a structural system and the exterior finish facing (see Detail A). Using brick as both the building’s exterior finish and its structure capitalizes on the brick masonry’s strength, attractive appearance, and other inherent values.

Are all brick walls load bearing?

The first distinction that needs to be made is whether the brick masonry is load bearing or non-load bearing. All brick walls are one of the two. Load bearing walls are an integral part of the building structure.

What are the different types of masonry walls?

• Load Bearing Masonry Walls.
• Reinforced Masonry Walls.
• Hollow Masonry Walls.
• Composite Masonry Walls.
• Post-tensioned Masonry Walls.

Article first time published on

What is the difference between concrete and masonry?

The main difference is that masonry is the name of a building practice using other materials, while concrete is a type of building material.

What is a masonry contractor?

Masonry contractors are individuals who have been trained in the field of masonry construction. They play a specific role in providing builders with things such as masonry construction, masonry repair, and other diverse applications of masonry.

What are the 5 types of construction?

Buildings can be categorized into five different types of construction: fire-resistive, non-combustible, ordinary, heavy timber, and wood-framed.

What is a solid wall?

The term ‘solid wall’ refers to walls constructed as a single solid layer with no cavity section within the wall. This means the wall is literally solid from inside to outside. Solid walls are typically made from brick or stone, and are generally found within houses built before the 1930s.

What is cavity wall and solid wall?

A cavity wall is made up of two walls with a gap in between, known as the cavity; the outer leaf is usually made of brick, and the inner layer of brick or concrete block. … A solid wall has no cavity; each wall is a single solid wall, usually made of brick or stone.

Are cavity walls better than solid walls?

Cavity walls lose less heat than solid walls, and are much easier to insulate.

How long do solid brick houses last?

According to the International Association of Certified Home Inspectors (IACHI), brick buildings are built to last 100 years or more. Of course, that only happens with proper maintenance and normal wear and tear. Routine inspections help identify sources of leaks, damaged mortar and cracks.

What is the difference between masonry and masonry veneer?

The biggest difference is that with solid masonry, the brick is holding up the house. With brick veneer, the house is holding up the brick! … Behind the brick veneer is a wood frame wall which is actually holding up the house. The brick veneer is, in effect, siding!

What are mud bricks called?

These sun dried mudbricks, also known as adobe or just mudbrick, were made from a mixture of sand, clay, water and frequently temper (e.g. chopped straw and chaff branches), and were the most common method/material for constructing earthen buildings throughout the ancient Near East for millennia.

What are the 4 types of construction?

The four major types of construction include residential building, institutional and commercial building, specialized industrial construction, infrastructure and heavy construction.

What are the 3 types of construction?

Broadly, there are three sectors of construction: buildings, infrastructure and industrial: Building construction is usually further divided into residential and non-residential.

What is Type 4 building construction?

Type 4: Heavy Timber Easily recognized by firefighters, these buildings prominently feature wood in the walls and roof spans — barns, factories and old churches often use this kind of construction. Throughout the buildings, lumber is connected using metal plates and bolts, forming a robust structure.

Are all solid walls load bearing?

Remember that most home’s exterior walls are load bearing. Regardless of whether it’s made of wood, brick or another material, nearly all exterior walls will extend right into the concrete; thus, you may want to think twice before knocking down an external load-bearing wall.

How can you tell if a brick wall is structural?

Go to the inside face of an external wall and knock on it. If it sounds hollow, then you (probably) have plasterboard over a timber frame, meaning the external bricks are cladding only. If it sounds solid, then you (probably) have a structural brick cavity wall.

How do I know if a wall is load bearing or not?

To determine if a wall is a load-bearing one, Tom suggests going down to the basement or attic to see which way the joists run. If the wall is parallel to the joists, it’s probably not load-bearing. If the wall is perpendicular, it’s most likely load-bearing.

What is cavity brick construction?

Simply stated, a cavity wall is two wythes of masonry, separated by a cavity of varying dimension. The mason- ry wythes may consist of solid brick, structural clay tile, or concrete masonry units and are bonded together with.

What is full brick house?

Full Brickwork is the simplest type of brick wall and is constructed in solid brickwork, normally at least one brick thick. … This is in contrast to cavity brick walls where two layers (or leaves) of brickwork are tied together with metal ties, with a cavity that may be filled with insulation.

What is the difference between face brick and thin brick?

Thin brick is a much thinner version of full face brick. The use of thin brick has been around for some time. Thin brick is desirable in part because it provides the look and feel of a brick installation without the weight or construction requirements when using full brick.

Is concrete a masonry wall?

Masonry is the word used for construction with mortar as a binding material with individual units of bricks, stones, marbles, granites, concrete blocks, tiles etc. … The durability and strength of masonry wall construction depend on the type and quality of material used and workmanship.

Is masonry a brick?

Masonry consists of building structures from single units that are laid and bound together with mortar. Brick, stone and concrete blocks are the most common materials used in masonry construction. Masonry is a popular construction technique around the world, due to its many advantages.

Is cement a masonry?

Cement masons and concrete finishers perform specialized masonry work with poured concrete (concrete finishers) and finished concrete (cement masons). … Concrete finishers pour wet cement into various forms and tend to work on foundation slabs, sidewalks, roads, curbs and other ground-level projects.
