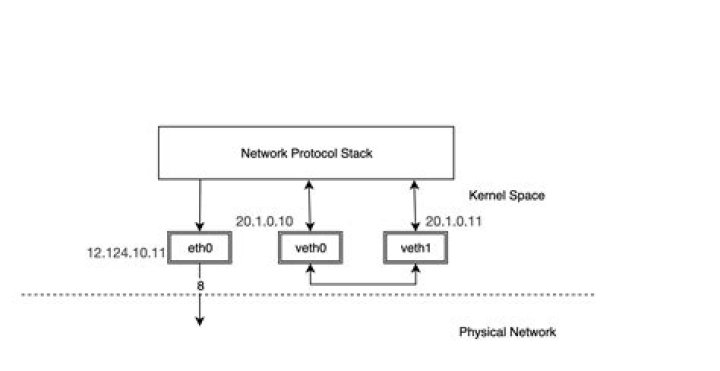

The VETH (virtual Ethernet) device is a local Ethernet tunnel. Devices are created in pairs, as shown in the diagram below. Packets transmitted on one device in the pair are immediately received on the other device. When either device is down, the link state of the pair is down.

What is Veth pair in Docker?

Then, Docker connects the new container network to linux bridge docker0 using a veth pair. This also enables container be connected to the host network and other container networks in the same bridge. … A “veth pair” is basically a virtual network cable which have a virtual network interface device (NIC) on each end.

What is Veth in Ifconfig?

veth* interfaces are the interfaces which got created on host machine when we run container.

What is a Veth?

The veth devices are virtual Ethernet devices. They can act as tunnels between network namespaces to create a bridge to a physical network device in another namespace, but can also be used as standalone network devices. veth devices are always created in interconnected pairs.

What does eth0 mean?

eth0 is the first Ethernet interface. (Additional Ethernet interfaces would be named eth1, eth2, etc.) This type of interface is usually a NIC connected to the network by a category 5 cable. lo is the loopback interface. This is a special network interface that the system uses to communicate with itself.

Do containers have IP addresses?

By default, the container is assigned an IP address for every Docker network it connects to. The IP address is assigned from the pool assigned to the network, so the Docker daemon effectively acts as a DHCP server for each container. Each network also has a default subnet mask and gateway.

What is vEth interface?

vEth – virtual Ethernet Virtual Ethernet (vEth) is a virtual interface within a network switch that dynamically provisions virtual machine (VM) operations based on network policies stored in the switch.

What is a tap device?

Introduction. A network TAP (Test Access Point) is a simple device that connects directly to the cabling infrastructure to split or copy packets for use in analysis, security or general network management.

How do I uninstall Veth?

1. Getting the name of interfaces ifconfig | grep “^veth” | cut -d’ ‘ -f1.
2. Now we have to shut down the drivers for these interface using ifconfig vethxxxxxx down. ip link set $veth down. …
3. Here’s one-liner for copy paste : for veth in $(ifconfig | grep “^veth” | cut -d’ ‘ -f1); do ifconfig $veth down; done.

What is TAP device in Linux?

TAP, namely network TAP, simulates a link layer device and operates in layer 2 carrying Ethernet frames. TUN is used with routing. TAP can be used to create a user space network bridge. Packets sent by an operating system via a TUN/TAP device are delivered to a user space program which attaches itself to the device.

Article first time published on

What is Veth Ubuntu?

The veth devices are virtual Ethernet devices. They can act as tunnels between network namespaces to create a bridge to a physical network device in another namespace, but can also be used as standalone network devices. veth devices are always created in interconnected pairs.

What is Virtual IP in Linux?

As its name suggests, Virtual IP address (VIP) is an IP address that doesn’t have an actual physical network interface. Incoming packets are sent to the VIP, but all packets travel through the real network interfaces. Virtual IP address is commonly used for database high availability.

How do you add Inet address in Linux?

1. Open /etc/network/interfaces. An example of the file is below: (Screen 1)
2. Below the line: auto eth0. Add the following line: …
3. Below the first interface description iface eth0 add the description of the second interface: iface eth0:1 inet static. address 207.210.118.58.

What is RX and TX in Ifconfig?

RX frame is a number of misaligned frames, i.e. frames with length not divisible by 8. TX packets is total number of packets transmitted.

What is Tx packet?

Tx packets – displays the number of transmitted packets. Rx packets – displays the number of received packets. Tx retry, % – displays the amount of retried packets (in percentages). Rx drop, % – displays the amount of dropped packets (in percentages).

What is ETH interface?

Ethernet networking interface refers to a circuit board or card installed in a personal computer or workstation, as a network client. A networking interface allows a computer or mobile device to connect to a local area network (LAN) using Ethernet as the transmission mechanism.

What is difference between OVS and bridges?

As mentioned above, the Open vSwitch is a multilayer virtual switch, which can work as a Layer 2 or Layer 3 switch. While the Linux bridge only behaves like a Layer 2 switch. … With these components, Linux bridge can be used for forwarding packets on routers, on gateways, or between VMs and network namespaces on a host.

What is virtual Ethernet switch?

A virtual switch is a software program that allows one virtual machine (VM) to communicate with another. Just like its counterpart, the physical Ethernet switch, a virtual switch does more than just forward data packets.

What is bridge network in Linux?

A network bridge is a Link Layer device which forwards traffic between networks based on MAC addresses and is therefore also referred to as a Layer 2 device. … It makes forwarding decisions based on tables of MAC addresses which it builds by learning what hosts are connected to each network.

What is a container in networking?

Container networking is a method of virtualization that separates out applications into independent boxes. Containers are similar to virtual machines, though with a few key differences. Containers can run large, distributed applications with low overhead. … Containers are also simpler than VMs.

Are containers OS specific?

Yes, they do. Every container is based on an OS image, e.g. Alpine, CentOS or Ubuntu. They just share the host kernel, but run every user-space process in a separate name space specific for that container.

What is host Docker?

A Docker host is a physical computer system or virtual machine running Linux. This can be your laptop, server or virtual machine in your data center, or computing resource provided by a cloud provider. The component on the host that does the work of building and running containers is the Docker Daemon.

What is tapping wireless network?

A network tap is an external monitoring device that mirrors the traffic that passes between two network nodes. A tap (test access point) is a hardware device inserted at a specific point in the network to monitor data.

What is the purpose of a network tap?

A network TAP is an external network device that creates a “copy” of the traffic for use by various monitoring devices. It allows traffic mirroring and is an intricate part of an organization’s network stack.

What is a tap in telecom?

Transferred Account Procedures (TAP) is a collection of procedures used in GSM to send billing records of roaming subscribers from the visited mobile network (VPMN) to their respective home network operator (HPMN).

What is TAP device driver?

TAP devices are virtual network kernel devices supported entirely in software – and not backed up by hardware network adapters. TAP drivers are used for TAP devices to work and they are designed with low-level kernel support for Ethernet tunneling.

What is TUN IP?

A TUN interface is a virtual IP Point-to-Point interface and a TAP interface is a virtual Ethernet interface. That means the user program can only read/write IP packets from/to a TUN interface and Ethernet frames from/to a TAP interface.

What is TAP network adapter?

A TAP adapter is a virtual network device. It does essentially the same job as your built-in network adapters, but it’s powered entirely by software, with no hardware behind it. TAP adapters are used by many VPNs to manage their encrypted connections.

What is Veth Linux?

The VETH (virtual Ethernet) device is a local Ethernet tunnel. Devices are created in pairs, as shown in the diagram below. Packets transmitted on one device in the pair are immediately received on the other device. When either device is down, the link state of the pair is down.

How does Kubernetes CNI work?

CNI concerns itself only with network connectivity of containers and removing allocated resources when the container is deleted. Kubernetes uses CNI as an interface between network providers and Kubernetes pod networking. For more information visit CNI GitHub project.

What is a network namespace?

A network namespace is a logical copy of the network stack from the host system. Network namespaces are useful for setting up containers or virtual environments. Each namespace has its own IP addresses, network interfaces, routing tables, and so forth.
