Part No.420Plate Thickness (T)0.060Overall Width (F)0.288Overall Width (G)0.344Unit of Measure (Inches or Millimeters)in

What Is a Number 41 chain?

41 Roller chain is the third largest size chain in the ANSI Standard lineup of roller chains. It features a 1/2″ pitch and is often referred to as “narrow 40 chain” due to its same form factor and dimensions with the exception of its narrower profile.

What pitch is a 420 chain?

Specifications: Chain No.: 420; Pitch: 1/2″; Roller Width: 1/4″; Roller Diameter: 5/16″; Sprocket Thickness: 0.227″.

Is 41 and 415 chain the same?

The #41 chain is a strong alternative chain that replaces the 415 & 410 motorized bike chains. … Most engine kits come with a 5 foot chain…

What does a 420 chain mean?

For example, a 420 chain has a pitch of 4/8″ = 1/2″ (12.70mm) and a roller width of 2.0/8″ = 1/4″ (6.35mm).

Is 40 and 420 chain the same?

#420 will have more strength than the #41 chain because the side plates will be taller. #40 will be the beefiest chain in this class. This will help with thicker sprockets since there is more room between the side plates. #41 will look just like the #420 chain, but will stand shorter.

How do I know what size chain I have?

To determine the pitch (chain size), you’ll need to measure the distance between any three consecutive rivets, then divide the result by 2. The rivets are the small, round pegs/studs that hold the chain segments together. Measure from the first to the third, then divide that number in half to get your chain pitch.

What is the difference between 415 and 415H chain?

#415 and #415H chain has a 1/2″ center to center spacing between each link pin, a 3/16″ spacing between inner plates, and is approximately 3/8″ wide. #415 and #415H chain is also known as 1/2″x3/16″ chain. #420 chain is the exact same size as #41 chain however it has thicker pins which makes it stronger.

What size is 40 chain?

SizePitchMaximum Roller Diameter250.250 in (6.35 mm)0.130 in (3.30 mm)350.375 in (9.53 mm)0.200 in (5.08 mm)410.500 in (12.70 mm)0.306 in (7.77 mm)400.500 in (12.70 mm)0.312 in (7.92 mm)

What is a 410 chain?

410 roller chain is a non-standard series roller chain that is a common in stock item for USA Roller Chain. … This 410 roller chain also is supplied with a high-quality lubricant for additional working life. We stock this chain in 10ft boxes, 50ft reels, 100ft reels, 250ft reels, and cut to length strands upon request.

Article first time published on

What size is a 415 chain?

#415 chain is also known as #43, 083, and 1/2″ x 3/16″ chain. #415 chain has a 1/2″ center to center spacing between each pin, a 3/16″ spacing between inner links, and is approximately 7/16″ wide.

What is the pitch of a 415 chain?

Part No.415Pitch (P)0.500Pin Diameter (D)0.142Roller Width (W)0.188Roller Diameter (R)0.306

How do I know what size chain I need for my sprocket?

To measure the chain size, if you have just the sprocket, use calipers to measure between the teeth. Measure from center to center of where the chain roller would set between the teeth that will give you the pitch. Once you know the pitch you can determine what chain size you would need.

How strong is 420 chain?

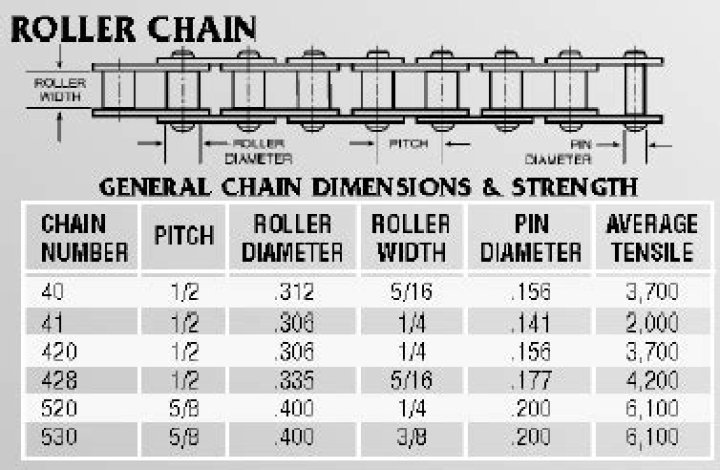

Standard Roller Chain Specifications & StrengthsChain SizeChain PitchAverage Tensile#4201/2″3,700#401/2″3,700#505/8″6,100

Will a 40 chain fit a 35 sprocket?

No. A #40 chain is 1/2″ between the pins and 5/16″ inside width. A #35 is 3/8″ between the pins and 3/16″ inside width. There is no way it will work.

What size chain is bigger than 420?

The primary difference between 420 and 428 is the pitch of the links. A 130 link 428 chain will be longer (and generally speaking, heavier-duty) than a 130 link 420 chain.

How do I know my bike chain size?

If you are using a bike with a derailleur the number of cogs on the rear hub will determine the chain size you will need. They are always 3/32″ chains. You can get a 5/6/7-speed, 8-speed, 9-speed, or 10-speed chains.

How do you measure a gold chain?

To measure, wrap a soft tape measure around your neck, keeping the tape measure parallel to the floor as you measure. Then, add 2 to 4 inches (5 to 10 cm) to your neck measurement to calculate your minimum recommended chain length.

Will a 428 sprocket fit a 420 chain?

A 420 and 428 are the same except width and the pins may be a little bigger diameter on the 428. They shouldn’t be though. Pin length should be the only difference.

What size chain does a bicycle use?

The chain in use on modern bicycles has a 1⁄2 inch (12.7 mm) pitch, which is the distance from one pin center to another, ANSI standard #40, where the 4 in “#40” indicates the pitch of the chain in eighths of an inch; and is standard 606 (metric) #8, where the 8 indicates the pitch in sixteenths of an inch.

What size chain is on a Coleman CT200U?

Front Jackshaft Size #420 Chain for Coleman CT200U CT200U-EX BT200X Mini Bike.

What is the pitch of Number 40 chain?

We know that from the ANSI numbering system, ANSI 40 chain has a pitch of 4/8s of an inch or . 5 inches.

What is #40 chain used for?

Some common applications for 40 roller chain include drive systems, agricultural equipment, industrial equipment and much more. This 40 roller chain is commonly used in lighter duty applications and not commonly seen in heavy duty applications. This power transmission chain conforms with the ANSI/ASME B29.

What is the pitch of a 40 chain?

40 Roller chain made to ANSI b 29.1 is 1/2″ or 12.7 mm pitch. It is available in single strand 40-1 duplex 40-2 and triplex 40-3.

What's the difference between 420 and 428 chain?

The primary difference between 420 and 428 is the pitch of the links. A 130 link 428 chain will be longer (and generally speaking, heavier-duty) than a 130 link 420 chain.

How big is a 25H chain?

Dimensions: Chain #: 25H. Pitch (P): 0.250″ Bushing Width (W): 0.125″

What is 415H?

415H roller chain is a non-standard series roller chain that is a common in stock item for USA Roller Chain. … This 415H roller chain also is supplied with a high-quality lubricant for additional working life.

What size is T8F chain?

DescriptionPitchWidth#256.35mm7.9mm8mm (T8F)8mm11.5mm41012.7mm16.6mm42012.7 mm14.7 mm

How long is a 420 chain link?

420 Motorcycle Chain 10 Feet with 1 Connecting Link.

Is 530 chain the same as 50?

Nowadays there is little to no difference between 50 and 530 chains, but the difference originated from where 50 chains were used in industrial applications whereas 530 chains were used primarily for transport and vehicles.

How long is a 140 link chain?

Details about size #35 140 links 4 feet chain for 79cc Motovox Mini Bike, MBX10 CHAIN, MBX11.
