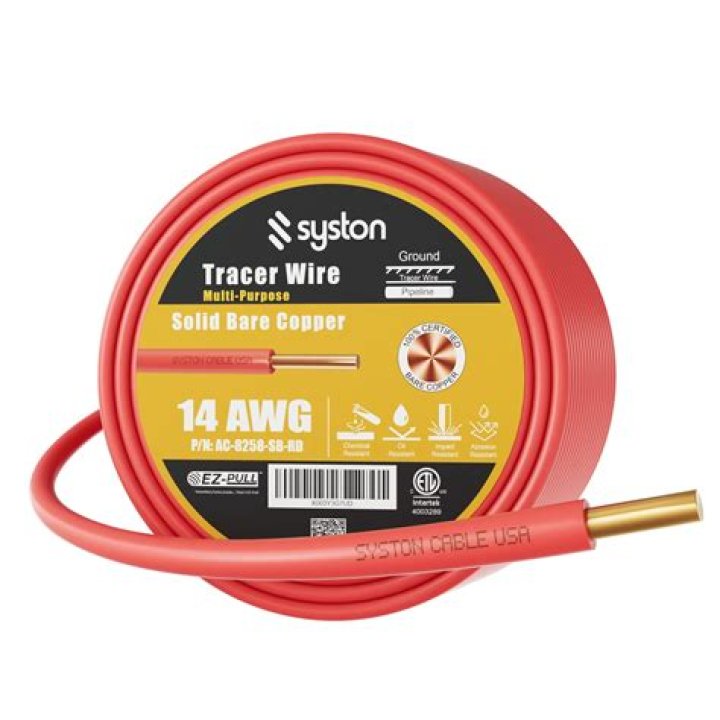

Underground tracer wire is available in sizes 14 through 6 AWG in an array of colors, depending on the intended use. The insulation is high molecular weight and high-density polyethylene, which is resistant to abrasions, crushing, chemicals, oils, and moisture.

What can I use as a tracer wire?

Warning tape, detectable tape, bare copper, coated solid copper, copper clad steel, stainless steel, and stranded copper or stranded stainless steel are all options being used. Proper care should be taken in selecting wire and connections for use in tracer wire systems.

What type of wire is tracer wire?

Tracer wire (also called locating wire or locator wire) is used to locate pipes and other buried utility lines. It is constructed using a solid copper and copper clad steel.

What gauge is gas tracer wire?

A coated copper clad steel tracer wire of #12 gauge (or larger) ( KUB item # 300362) shall be installed with all buried plastic mains and services. The tracer wire shall be laid within 6 inches of the plastic pipe where practical and directly above if possible.

What color is tracer wire?

The APWA (American Public Works Association) has a uniform color code so you can look at the tracer wire and know what kind of pipe it is. The red wire is for electric; yellow is for gas, Orange is for communication, blue tracer wire is for potable water and green is for sewer.

Can I use Thhn for tracer wire?

Pro-Line Type THHN or THWN conductors are used for tracer wire applications not exceeding 600 Volts. Tracer wire is used to conductively locate buried utility lines for the gas, water, sewer, telecommunication, and electrical markets. … Tracer wire is RoHS Compliant and manufacturered in the USA.

Is tracer wire required for electrical?

In short, it’s critically important to ground a tracer wire system so that the electrical current is pulled along the target line, and underground assets can be located. Accurate location can help prevent costly utility damage and needless hassle.

Do you need tracer wire for gas line?

GAS PIPE ALLOWABLE MATERIALSPipe MaterialIndoor InstallationOutdoor, Above Ground InstallationGalvanized SteelYesYesBlack SteelYesNo

Can you splice tracer wire?

Continuous wire installations that have multiple wire laid side-by-side or in close proximity to one another shall not be allowed. Install tracer wire as a single continuous wire. Splicing of wire, if necessary, shall be done in such a way to produce an electrically and mechanically sound connection.

Is copper wire a tracer?

Our standard tracer wire is a solid copper conductor insulated with high molecular weight polyethylene (HMWPE).

Article first time published on

What is green tracer wire used for?

2) Green Tracer Wire Green insulation indicates it will be used for sewer lines.

Can tracer wire be stranded?

Available in solid and stranded uncoated copper conductors, tracer wire is primarily used in the detection of underground piping and other underground utility installations. Constructed of High Molecular Weight Polyethylene (HMWPE) insulation which has excellent moisture, chemical, oil, crush, and abrasion resistance.

What is gas tracer wire?

Tracer wire is also known as locating wire or locator wire because it locates pipelines or pipe after burial. … Tracer wire is used to locate gas, water, sewer, electrical, and telecommunication lines.

How do you install underground tracer wire?

1. Hold the tracer wire at the start of the pipe near the street and fasten it to the pipe by wrapping it with electrical tape.
2. Roll out the tracer wire along the pipe, taping it to the pipe every 5 feet.
3. Run the wire up the pipe to the point where it exits above finished grade.

What is the yellow wire next to my gas meter?

There is a yellow wire wrapped around the gas line at the meter, and it is not connected. … This is a tracer wire we put in with the service line in order to locate the line back to the main.

What color is underground wire?

The bare copper wire in the cable is the ground wire. (In rare instances, you might find cable in which the ground wire is covered with green insulation—green is the color designated for ground wires.)

What is black cable underground?

Anyway, while any unidentified cable should be treated with respect, and nobody should handle it, I likewise suggest calling MISS DIG, DIGSAFE, or whatever it is in your area as well, as they will notify anyone who may own it.

When would you use a tracer wire?

Tracer wire, which is also called locating wire or locator wire, is used to assist in locating pipes and other lines after they’ve been buried in the ground. Once a pipe is laid down, tracer wire is placed along it’s length and buried next to the pipe.

How do you trace PVC pipe?

1. Step 1: Gather the necessary tools.
2. Step 2: Make a map of your yard on a paper.
3. Step 3: Use detectable tape to burry with the pipes.
4. Step 4: Use a probe rod.
5. Step 5: Start searching from the best possible location.
6. Step 6: Dig the ground with a shovel.
7. Step 7: Use a pipe locator.

How do I find a buried propane line?

Calling the 811 Hotline The best way to locate gas and other utility lines that are underground before you dig is by calling 811.

Can I direct bury Thhn wire?

THHN wire can be used in a conduit but is not rated for direct burial alone. Our 8 awg THHN is also THWN-2 dual rated which means this conductor is appropriate for use in wet or dry locations at temperatures not to exceed 90° C or not to exceed 75°C in oil or coolants.

What wire is direct burial?

Common types of cables with a copper conductor suitable for direct burial are USE-2, UF-B Underground Feeder Cable, and Tracer Wire. Aluminum URD Direct Burial Wire is the most commonly used direct burial aluminum wire.

What is AWG in wire size?

AWG or American Wire Gauge is the US standard measure for the diameter of electrical conductors. The American Wire Gauge chart is based on the number of dies originally required to draw the copper down to the required dimensional size. It means the higher the AWG number is, the smaller the wire diameter is.

What size should gas pipe be?

Most gas combi boilers require a 22mm supply pipe to be fitted from the combi boiler to the meter. It may also have to be upgraded to 28mm and even 35mm in sections if the gas route is a particularly long distance, has many bends and turns in the route it takes or services many appliances.

How deep does a gas pipe need to be?

A gas main should normally be laid with a minimum depth of cover of 750 mm in a road or verge and 600 mm in a footpath. A gas service pipe should normally be laid with a minimum depth of cover of 375 mm in private ground and 450 mm in footpaths and highways.

Can a gas line be above ground?

Exterior piping may be either buried or installed aboveground and shall be well supported and protected against mechanical damage.

Why is copper coated steel used for the central wire?

Copperclad Steel Wire is a strong, non-rusting, efficient grounding conductor. It is composed of Coppercladding that is permanently bonded to the central steel core of each wire. Copperclad provides the same conductivity and corrosion resistance as copper while maintaining the high strength of steel.

Why do fire hydrants have wires?

So, the wire at the base of recently-installed fire hydrants is a tracer wire, and contractors are required to lay these in the trench, above plastic water mains, solely for the purpose of later locating the exact path of the buried water main.

Are Thhn and THWN the same?

THHN stands for Thermoplastic High Heat-resistant Nylon-coated. THWN wire is the same, but the “W” stands for water-resistant. The main difference between these two standards is their maximum temperature in wet locations. … However, most of these wires, so you can use THHN and THWN interchangeably.
