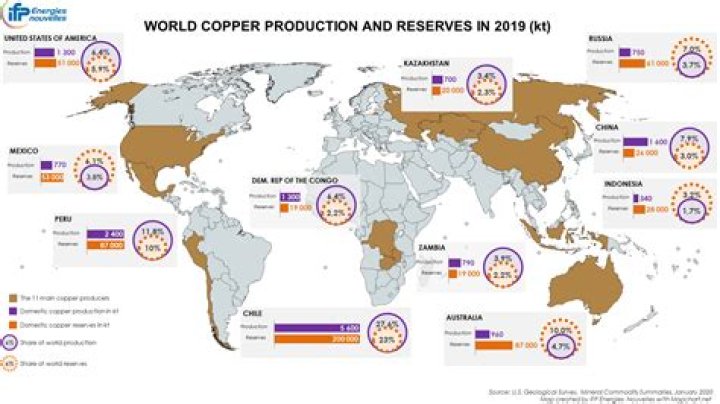

The largest copper mine is found in Utah (Bingham Canyon). Other major mines are found in Arizona, Michigan, New Mexico and Montana. In South America, Chile, the world’s largest producer, and Peru are both major producers of copper.

What are the 5 steps in copper production?

Sulfide ores undergo a five-step process: 1) the ore is crushed into a fine sand to loosen the copper minerals; 2) it is froth floated, where the sand is mixed with water and chemicals to make the copper particles water repellent; 3) air is passed through the mixture, allowing the copper minerals to attach to bubbles …

How is copper obtained?

Copper can be extracted from its ore by: Underground: sinking a vertical shaft into the Earth to an appropriate depth and driving horizontal tunnels into the ore. Open pit: 90% of ore is mined by this method. Ores near the surface can be quarried after removal of the surface layers.

How is copper recovered and processed?

In the case of copper, the common hydrometallurgical recovery method includes chemical leaching in sulphuric, (22−25) nitric, (26,27) or hydrochloric acids (28−30) combined with different oxidants such as air, ferric chloride, ferric sulfate, or hydrogen peroxide.

How is copper mined?

Copper mining is usually performed using open-pit mining, in which a series of stepped benches are dug deeper and deeper into the earth over time. To remove the ore, boring machinery is used to drill holes into the hard rock, and explosives are inserted into the drill holes to blast and break the rock.

How does copper mining affect the environment?

A peer-reviewed study of the track record of water quality impacts from copper sulfide mines found severe impacts to drinking water aquifers, contamination of farmland, contamination and loss of fish and wildlife and their habitat, and risks to public health.

Does copper have to be processed?

Mined from open pits, copper ore must be crushed as part of the process that occurs between extraction and production. … After the ore is crushed, it’s roasted, which helps to convert sulfides to oxides. The oxides are smelted to produce matte, which then undergoes several refining processes.

What is copper made into?

It is commonly used to produce a wide variety of products, including electrical wire, cooking pots and pans, pipes and tubes, automobile radiators, and many others. Copper is also used as a pigment and preservative for paper, paint, textiles, and wood.

How is copper made simple explanation?

Copper is typically extracted from oxide and sulfide ores that contain between 0.5 and 2.0% copper. … Regardless of the ore type, mined copper ore must first be concentrated to remove gangue or unwanted materials embedded in the ore. The first step in this process is crushing and powdering ore in a ball or rod mill.

What is copper refining?

Through copper refining, unwanted material is progressively removed and copper is concentrated at up to 99.99 percent purity, the standard for Grade A copper. … Copper ore that is rich in sulfides is processed via pyrometallurgy, while copper ore that is rich in oxides is refined through hydrometallurgy.

Article first time published on

How was copper processed in ancient times?

In ancient times learned how to obtain copper from the ore by heating the rock to the metal melting point. They used to mould bronze objects by pouring the metal into stone shapes or ingots.

What is copper leaching?

Leaching offers an alternative to copper mining. First, the ore is treated with dilute sulphuric acid. This trickles slowly down through the ore, over a period of months, dissolving copper to form a weak solution of copper sulphate. The copper is then recovered by electrolysis.

How can you obtain copper using electrolysis?

Copper is purified by electrolysis . Electricity is passed through solutions containing copper compounds, such as copper(II) sulfate. The anode (positive electrode ) is made from impure copper and the cathode (negative electrode) is made from pure copper.

What are copper concentrates?

Concentrates are the raw material for all copper smelters, which by processing it obtain an impure form of metallic copper, anode or blister copper, which is later used to produce high purity refined copper. … The concentrates from different regions have approximately between 24% up to 36% of copper.

What is the natural form of copper how it can be converted to copper?

The method used to extract copper from its ores depends on the nature of the ore. Sulfide ores such as chalcopyrite (CuFeS2) are converted to copper by a different method from silicate, carbonate or sulfate ores. Chalcopyrite (also known as copper pyrites) and similar sulfide ores are the commonest ores of copper.

What are the steps in mining process?

1. Exploration. …
2. Mining.
3. Open Pit Mining. …
4. Underground Mining. …
5. Processing. …
6. Stage 1: Crushing and Grinding. …
7. Stage 2: Flotation and Oxidisation. …
8. Stage 3: Leaching and Absorption.

Why do we mine copper?

Do we need both newly mined copper and copper scrap? Sure we do, and we use each where it is best suited, technically and economically. Copper scrap is important because it reduces our reliance on newly mined copper. Its use also helps reduce energy consumption and the emission of greenhouse gases.

What machines are used to mine copper?

Left: Open Pit Mining. Right: Underground Mining. In each of these mining methods, various earth-moving equipment including shovels, dozers, hauling trucks, and loaders are used to remove and transport the ore.

How is copper made naturally?

Copper is a metal that has been deposited from hot sulphur solutions, created in volcanic regions. The hot solutions concentrated the copper up to a thousand times more than would normally be found in rocks. The resultant enriched rocks are called copper ores.

How long does it take to mine copper?

Extraction (“Mining it”) The extraction stage can take from 5-30 years to complete, although many mines have been open for more than 100 years, and may cost anywhere from a few million dollars to hundreds of millions of dollars a year depending on the size of the mine and its location.

Why is copper mining toxic?

Sulfide-ore copper mining is a toxic industry with a very poor track record of success. … Sulfide-ore copper mining also releases sulfates, which fuel the chemical reactions that transform mercury to its toxic form methylmercury.

What is the byproduct of copper mining?

By-products generated in the process are sulfur dioxide and slag. The sulfur dioxide is captured for use in earlier leaching processes.

Can copper be mined safely?

Yes: Technology and regulations ensure protection of environment.

Is copper a mineral or metal?

Copper is a mineral and an element essential to our everyday lives. It is a major industrial metal because of its high ductility, malleability, thermal and electrical conductivity and resistance to corrosion.

How was copper mined in the Bronze Age?

Copper Ore Use in the Bronze Age. … The ores were mined using a technique known as fire setting. Fire setting involved setting a fire against the rock face and then throwing water on the heated surface. The copper ores were then prised from the rock face using mauls and hammer stones.

How was copper first made?

Copper axes were manufactured by casting in the Balkans in the 4th millennium BC. The ancient Romans extracted copper ores on Cyprus. In this time, where Bronze tools replaced all the other metal, including copper, due to its strength. And copper was smelted with tin to create bronze.

What forms of energy are needed to process copper?

The copper is then recovered by electrolysis and the electro-winning step is used to produce copper cathodes (Schlesinger et al., 2011). Copper ores processing requires important amounts of electricity, heat, fuel, water, oxygen, and chemical agents among other services.

What is the process of leach mining?

Leaching is a chemical process in mining for extracting valuable minerals from ore. Leaching also takes place in nature, where the rocks are dissolved by water. Post leaching, the rocks are left with a smaller proportion of minerals than they originally contained.

How is the metal mined or obtained?

Metal is extracted from the crushed ore by one of two major methods: smelting or electrolysis. Smelting uses heat to separate the valuable metal from the rest of the ore. … Charcoal burned with hematite ore, for instance, smelts iron. Electrolysis separates metal from ore by using acid and electricity.

What are electrodes made of?

Electrodes often are made of metal. Sometimes they are graphite. But whatever they’re made of, electrodes must be conductors. These electrodes are key parts of what scientists call an electrochemical cell.

Why are copper electrodes used in electrolysis?

To investigate the electrolysis of copper sulfate solution using non-inert electrodes. Copper electrodes take part in the reactions and are described as non-inert: at the positive electrode, copper atoms lose electrons and form copper ions , Cu.
