Electrical conduit PVC’s main purpose is for use in electrical systems as a housing for electrical wires or cables. PVC conduit is often used in underground and wet location applications where electrical cables need to be protected.

Can you use conduit in a house?

Electrical conduits are primarily used to protect circuit wires that are exposed in exterior and interior environments. Conduits offer a layer of protection against moisture and damage. Moreover, you can use it in the unfinished areas, such as attics and basements.

Can Schedule 40 PVC be used indoors?

Indoor Applications PVC Schedule 40 is approved to be used indoors. It can be used behind wall or on the surface of the wall (provided it’s not subject to physical damage). If it penetrates a fire wall, it has to be firestopped.

Do you have to glue PVC conduit indoors?

Yes, an electrical PVC conduit needs to be glued properly with PVC solvent cement or water and insects could get in there to damage the electrical wires, especially if the conduit is buried underground. Yes – it is required by the electrical code and would be illegal not to (in the US).

Can I use PVC as electrical conduit?

Yes, technically, PVC pipe can be used as a conduit. In fact, grey PVC pipe is manufactured precisely for this purpose. You could use PVC made for water since it’s basically the same thing but with a different gauge (thickness). It might not pass an electrical inspection but would work.

Can Romex go in conduit?

Running Romex in a Conduit When using any non metallic wire outdoor, including Romex, it is a good idea to run it through a conduit. Yes, they can be used outdoors, it is better to be safe than sorry. We recommend using a conduit when running the wire underground.

Can you use plumbing PVC for electrical conduit?

Applications. Electrical PVC is not intended to be exposed to high pressure, as in water lines, and is not rated for use with high-pressure air. … Conversely, plumbing PVC should not be used for electrical conduit applications as it does not handle ultraviolet radiation well, and is of reduced rigidity.

Can Romex be exposed in basement?

Code and common sense both dictate that Romex shouldn’t be left exposed but must run through conduits. If you are running it through the basement or attic (or both), the wire must past through studs or be secured on top of joists or trusses.

How do I connect my conduit to my breaker box?

Attach a polyvinyl chloride, or PVC, conduit to a breaker panel using a threaded PVC Hub. Unlike rigid metal conduit or intermediate metal conduit, PVC conduit cannot be threaded. Unlike thin-wall electrical conduit, setscrew and compression connectors cannot be used with PVC conduit.

Can PVC conduit be used in a garage?

It’s easy with PVC conduit But running wire through PVC conduit mounted on walls and ceilings makes the job faster and a whole lot less frustrating. … And unlike metal, PVC plastic is quick and easy to cut. If you goof up, you can cut out your mistake and add new parts using couplings. It couldn’t be simpler.

Article first time published on

Can I use PVC conduit in attic?

A cable into the back of the box should be fine. Unless subject to damage a sleeve should not be needed. You mentioned running more 12’s in the future,why not run the PVC from the meter into the attic into a “J” box and make your transitions up there,although an attic may not be the ideal place to work.

What is the difference between white PVC and GREY PVC?

Grey PVC is used as electrical conduit and is better suited for sunlight resistance. The fittings for this type of pipe are made to pull wires into and not intended for containing pressured fluids. White is for plumbing applications. Both use the same solvents and glues.

Which is better PVC or metal conduit?

PVC is an excellent corrosion resistant material and doesn’t break down in corrosive environments like salt water or chemical exposure. The downside to PVC is that it does not have grounding capabilities, being a non-metal conduit. To address this, electricians use an extra grounding conductor in all PVC conduits.

Does electrical wiring need to be in conduit?

There are no wires in conduit and they must be installed, or pulled, through the conduit after installation. … Rigid conduit is used for very large wires, exterior installations and where structural strength is required. EMT is the most common conduit used in residential wiring.

Can you use PEX for electrical conduit?

Pex tubing or any other plumbing pipe is not listed for use as an electrical raceway. If you just want some physical protection for the Cat 5 cable then PVC electrical conduit will perform nicely. Save your scrap pex for a plumbing project.

Whats the difference between conduit and PVC?

PVC pipe and PVC conduit have different uses. PVC pipe is used primarily in plumbing and other pressurized systems. PVC conduit is used primarily in electrical systems. PVC pipe thus is used to carry water, while PVC conduit typically works as housing for wiring.

Can Romex be exposed in garage?

No, you cannot expose Romex wires or non-metallic sheath wires in the detached garage or anywhere. Because it’s not safe to expose it on the outside. Besides, it goes against the National Electrical Code or NEC.

How many wires can I put in a 1 inch PVC conduit?

By National Electrical Code, 1″ EMT can handle (35) 14 gauge wires (THWN, THHN) or (26) 12 gauge wires, or (17) 10 gauge wires, or (9) 8 gauge wires, or (7) 6 gauge wires, or (4) 4 gauge wires, or (3) [3 or 2] gauge wires, or (1) [1 gauge through 4/0 or 250 mcm through 350 mcm] wire.

What kind of wire do you run in conduit?

Wiring Used With Conduit The most common type of cable used in home wiring is non-metallic (NM), or Romex, cable. While NM cable can be run inside a conduit, this is seldom done. The types of wire most commonly installed inside of conduit are THHN and THWN.

Which PVC pipe is best for electrical wiring?

Rigid Non-Metallic (PVC) Conduit – preferred for cases where wiring is run just beneath the surface of concrete walls or flooring. It’s primarily chosen because it will keep water that may seep through the wall from the wiring.

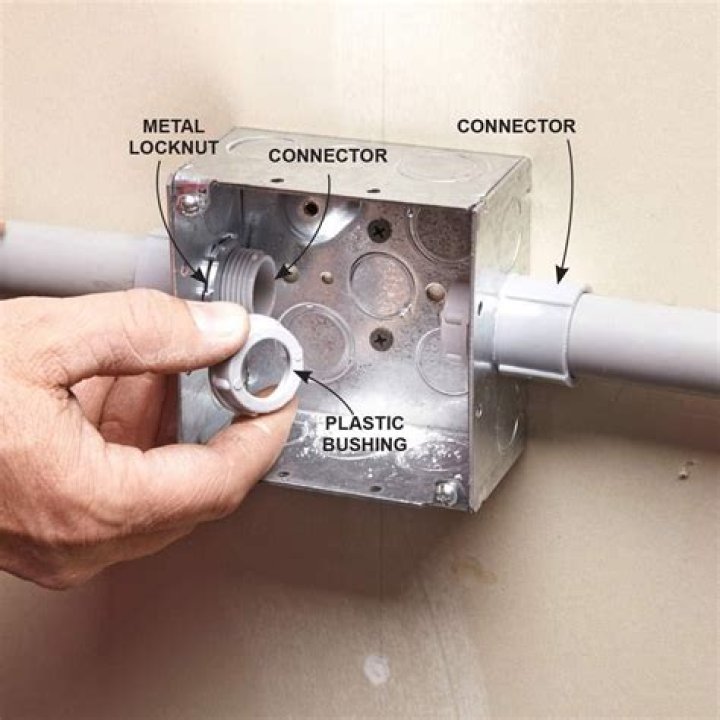

Can you use plastic conduit with metal boxes?

Plastic junction boxes cannot be used with metal conduit, which is required in various installations, such as outdoors or when wiring runs are exposed (not concealed inside wall or ceiling cavities).

Why is Romex illegal?

Staffers there said house wiring known by the brand name Romex can be dangerous if the insulation is gnawed by rodents or punctured by nails. They said the flexible insulation on the cable lacks the protection of conduit, the rigid metal tubes that encase wires.

Can you pull Romex through PVC conduit?

7 Answers. Yes, NM cable can be in conduit. In fact. NEC calls for it to be in conduit, when protection from physical damage is required.

Do finished basement outlets need to be GFCI?

GFCI protection is required for 125-volt to 250-volt receptacles supplied by single-phase branch circuits rated 150 volts or less to the ground. GFCI receptacles are required in bathrooms, garages, crawl spaces, basements, laundry rooms and areas where a water source is present.

Is EMT or PVC cheaper?

Aluminum EMT is much more cost-effective than either PVC – or steel, for that matter – and it’s just as strong and durable.

What is Romex?

Romex is the trade name for a type of electrical conductor with non-metallic sheathing that is commonly used as residential branch wiring. … Romex™ is a common type of residential wiring that is categorized by the National Electrical Code (NEC) as underground feeder (UF) or non-metallic sheathed cable (NM and NMC).

What size wire do I need to run from house to garage?

If you’re putting in a new dedicated circuit to the garage it will depend on the size of the circuit breaker, once again, typically lighting circuits use 15 amp breakers and 14 gauge wire. and standard receptacles typically use 20 amp breakers and 12 gauge wire.

What is conduit from basement to attic?

Conduit from basement to attic allows wiring run to the second floor interior walls and ceilings. If you have an unfinished basement, running cabling to the main floor walls is not difficult for those skilled to do such.

Do you need conduit in attic?

No, conduit is NOT required in attics. Not unless conduit is required in your area. There are other factors involved in wiring in attic spaces, but your question is a bit too vague to go into that. You only have to put the wiring in conduit, if you have to protect it from physical damage.

Can electrical conduit be used for water?

Conduit is the term applied to PVC pipe made for electrical wiring containment. … Stabilizers and other ingredients used in conduit PVC may be toxic; conduit PVC is not held to the same drinking water standards as NSF marked pipe and should not be used in potable water systems.

Can Schedule 40 PVC be used for electrical conduit?

Schedule 40 PVC conduit is permitted for exposed locations where not subject to physical damage. Schedule 80 PVC conduit is identified for use in areas subject to physical damage.
