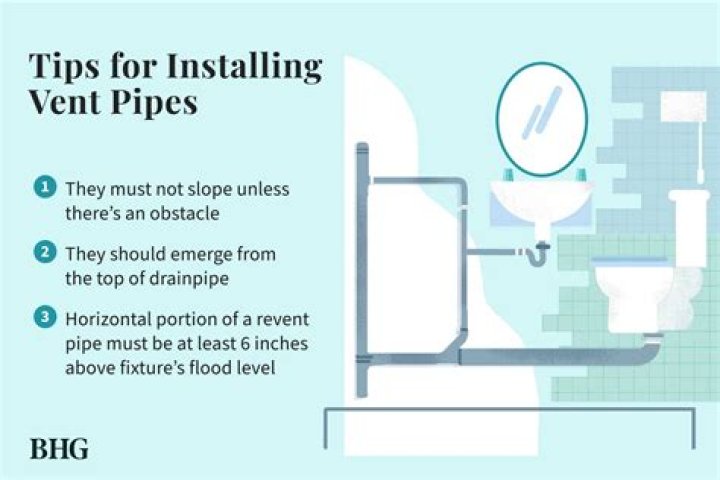

Plumbing the Bathroom The most common configuration is to feed 2″ PVC down from the ceiling within the wall behind the toilet. The vent pipe connects into the toilet drain pipe. The sink drain pipe and the tub/shower drain pipe are vented with 1.5″ pipe that branches off from the 2″ PVC mainline.

How far can tub drain be from vent?

For a 1 ½-inc pipe the vent should be 42 inches away at the most while a 2-inch pipe must have a maximum distance of 5 feet. For pipes that have a diameter of 3 inches the distance is 6 feet and for a 4-inch pipe the most it should be away from the vent is 10 feet.

Can a tub and shower share a vent?

Yes, they will both be using the same drain pipe at somepoint inside or outside of your house. But the the pipes must join well below the level of both items or the pipe must be large enough for the combined flow, otherwise when you put water down one of them, it will flow out of the other!

Does a stand alone tub need a vent?

You need a vent before it goes vertical after the trap and can t use 2 traps. pretend this sink is the tub. extend the tub tailpiece so you can have a configuration like this. keep the top of the trap outlet pipe even with the bottom of the joist.

Will a shower drain without a vent?

It’s easy to forget, but it’s a vital and required part of any plumbing fixture drain. The vent pipes remove sewer gases while allowing air into the system to help the water drain. Without a vent, your shower won’t drain correctly.

Does a plumbing vent have to go through the roof?

It does not have to go through the roof. From the plumbing code (I have the 2003 edition), P3103: It must not be less than 4 feet directly beneath a door, openable window or other air intake of the building or adjacent building.

Do I need a vent for every drain?

Whether you’re putting in a tub, toilet, sink, or floor drain, they all need a plumbing vent on the drain to make it work properly. If there is no vent, a number of problems may occur: The fixture without a vent may drain slowly. The drain will likely make gurgling noises.

What is a wet vent?

The official definition of a wet vent is a pipe that serves as a waste pipe and a vent at the same time. The wet vent also protects the drain’s trap for several fixtures, all connected to one system.

Do you need a trap on a bathtub drain?

Yes, you should always install a P-Trap as part of the plumbing of a bathtub or any other wastewater drain system. Failure to include a P-Trap could result in foul smells, harmful gases, and small animals entering through your tub’s drain.

What happens if you dont vent a sink?

Without venting, the negative pressure caused by the flow of draining water can potentially suck water out of the drain trap and allow sewer gases to enter the home. The vents allow air into the drain pipes to help keep the drain flowing properly.

Article first time published on

Can a tub and washer share a drain?

Tubs, showers and washing machines usually drain to the same pipe. … Tying a shower and tub drain to the same drain as the washing machine is feasible as long as you follow the basics of plumbing, keeping the water flowing and vented with adequate pressure.

Can a sink and bathtub share a drain?

1:Can multiple bathroom sinks, baths, showers ect share a common drain pipe ? Yes they can and do all the time.

Can shower and sink use same drain?

Is It Possible to Have the Same Drain for the Shower and Sink? Yes, the drain for the shower and the sink can be the same. The shower and sink can use the same drain pipe if it is well below the sink and shower level.

Does a walk in shower Need AP Trap?

Yes, shower and tub drains require a trap in the plumbing to prevent harmful sewer gases from coming into the home.

What happens if you don't vent a shower drain?

All Drainage/plumbing has to be connected to a ‘stack’ if there is no vent the ‘gas’ will back up and escape through your ‘peripheries’ ( toilets , sinks, baths) The end result is a horrible rotten egg smell wafting through your house. Sometimes vents do get blocked.

Where are plumbing vents required?

Vent pipes shall terminate not less than 6 inches above the roof, measured from the highest point where the vent intersects the roof. EXCEPTION: Where a roof is used for any purpose other than weather protection, vents shall extend at least 7 feet above the roof and shall be properly supported.

What happens if plumbing is not vented?

Poorly-vented drain lines will not be able to effectively move wastewater and solid waste out of your building. This could lead to problems such as overflowing drains, backed-up toilets, and similar plumbing issues.

Is there a ventless toilet?

What is a ventless toilet and how does it work? Ventless toilets are just like regular ones, except there is no vent for the toilet to release the water vapor. Instead, they use a siphon action that pulls the water out of the toilet bowl into an underground waste pipe.

Do toilets need a vent pipe?

“Does a toilet need a vent?” And the answer is yes, your toilet has to have a vent. For more information on the great importance of plumbing vents, read our plumbing vent article here. And the size of this vent pipe depends on your local plumbing code.

Can a plumbing vent go up and down?

as far as i’m concerned, yes. as long as any condensation can drip somewhere, there should be no problem. we run island vents for kitchen/bar sinks all the time. they go down.

Can a plumbing vent terminate horizontally?

Re: Plumbing Vent Termination…Horizontal? Edward, 2000 Uniform Plumbing Code 906.1- “Each vent pipe or stack shall extend through it’s flashing and shall terminate vertically not less than six(6)inches(152mm)above the roof nor less than one(1)foot(305mm) from any vertical surface.”

How close does a toilet need to be to a vent?

According to the UPC, the distance between your trap and the vent should be no more than 6 feet. In other words, for the vent to work properly, it needs to feed into the drain line within 6 feet of the trapways that connect to it.

What kind of trap do you use for a bathtub?

The proper size for both a bathtub drain and trap is 1 1/2 inches in diameter, regardless of the bathtub size. The type of trap used on a tub drain is a p-trap. Because they are the same size, the trap will glue directly onto the PVC drain pipe without the use of adaptors or fittings.

What is a bathtub trap?

P-traps are S-shaped pipe components that keep toxic sewer gases from escaping into your residence. They are required on all plumbing fixtures, including sinks, tubs and showers. … A bathtub trap begins at the end of the tub drain assembly, where it is glued onto a fitting screwed to the drain outlet.

How do you vent a shower plumbing?

In new construction, the simplest way to vent a bathroom group is usually to install a single vertical vent pipe behind the bathroom sink. This works as long as all the plumbing fixtures connect to the main drain line in the floor within 6 to 10 lineal feet of the sink drain.

How does a bathtub trip lever work?

With the trip lever down, the plunger is lifted and the drain is open; when the trip lever is up, the plunger is forced down and the drain is closed. And if the tub is accidentally overfilled, excess water can still run down the overflow tube behind the trip-lever plate and can drain away because the plunger is hollow.

Can a tub be wet vented?

Traditional wet venting is the venting of one or two bathroom groups. A bathroom group includes all the fixtures located within a bathroom, such as a water closet, lavatory, bathtub, shower or bidet. All these fixtures can be vented with a single dry vent. … The wet vent can serve as the drain for another fixture.

Can you wet vent a shower drain?

So yes the shower can also be vented by the wet vent along with the toilet. There is one major stipulation when wet venting multiple fixtures when a toilet is one of them: the toilet must be the last fixture connected to the wet vent.

Does a laundry drain need to be vented?

All plumbing fixtures—including washing machines—must be vented. Improperly vented drains can be sluggish and noisy, and can emit hazardous fumes. Properly vented drains allow the P-trap to do its job: prevent sewer gases from escaping into your home. … distance between the washing machine and the vent.

Why does my house smell like sewage when it rains?

Raining often causes atmospheric pressure changes, which can lead to the air becoming heavy. As such, the methane gases typically found in the septic tank don’t flow through the vent as they normally would. Instead, they stay low to the ground, causing a foul smell similar to rotten eggs.

Why does my sink fill with water when my washing machine drains?

Sometimes, water might back up in the kitchen sink while you’re doing a load of laundry, or your bathtub will fill with water. Either case means that your main drain line is clogged. You need to call a professional to clear the drain for you. … You will need to get your drains cleaned professionally for that.
