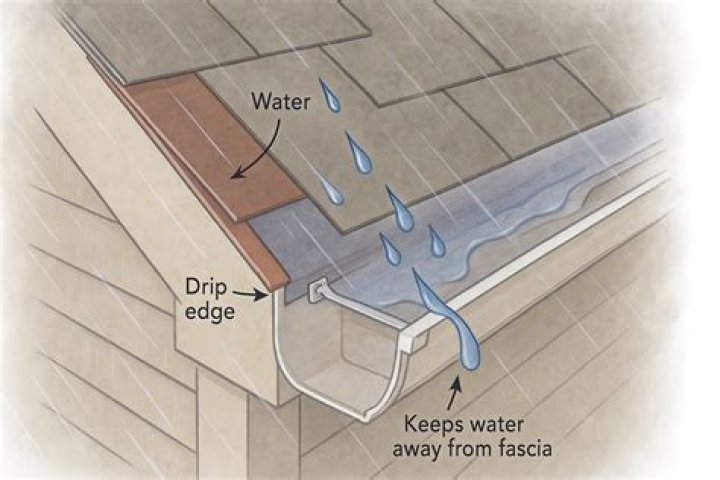

The correct placement of a roof drip edge is on top of the roof’s exterior cover directly between the sheathing and the fascia board, which forms a drainage gap between the drip edge and the fascia board. As a result, the drainage improves water flow and protects the roof from potential water damage.

How far should shingles go over drip edge?

Shingles should not extend more than 3/4” (19 mm) past the drip edge. If shingles overhang the edge of the roof by more than 3/4” (19 mm), then they are not supported and may crack and break off.

Should drip edge be tight to fascia?

A vertical drip edge lip extends down roughly 1 5/8″ and as Steve points out, should not be set tight against the fascia board or water may run behind the gutter and down the fascia, inviting leaks and rot.

Should drip edge go over gutter?

It is recommended that gutters are placed under or ‘behind’ the drip edge of your roof. … If gutters are installed below the drip edge, water can drip behind the gutter and cause damage to the wood supporting the gutter system.

Can you install drip edge after shingles?

Can Drip Edge Be Installed After Shingles? The most popular time to install a drip edge is when new shingles are installed. However, the drip edge can be installed at any time. The materials involved include: a ladder, a flat pry bar, a hammer, tin snips, eave stripping, and galvanized roofing nails.

Does roofing felt go over or under drip edge?

1 Answer. It depends on where the drip edge is. At the side, or gabels, of a roof, the drip edge goes over the roofing felt. At the bottom of the roof, the drip edge goes under the roofing felt.

Does underlayment go under drip edge?

According to most building codes and manufacturer recommendations, the drip edge should be installed beneath the underlayment along the eaves of the roof. But over the underlayment along the rake edges of the roof. Understanding the proper way to install the drip edge will only get you so far.

How much overhang should a roof have?

Overhangs can vary from a few inches to a few feet depending on preference; however, the suggested width of an overhang is between 12” and 18” for eaves and no more than 8” for rakes. That said, overhangs can extend as far as 2′ without the need for external supports.

Do shingle manufacturers require drip edge?

A drip edge is required to be provided at the eaves and rakes of asphalt shingle roof systems. A drip edge’s flange should extend back onto the roof surface a minimum of 2 inches.

How many nails do you use on drip edge?

Install the starter strip so that it overhangs the drip edge by 1/2-inch. Nail the starter strip about 3” up from the leading edge, using 4 nails evenly spaced for a full strip (approximately 10”-12-inches apart).

Article first time published on

Why is rain dripping between gutter and fascia?

Water Gets Behind the Gutter If water is dripping behind your gutter, it’s probably because it was installed without any flashing over the back of the gutter. The gutter apron will prevent the dripping. A gutter apron is a bent piece of flashing that tucks up under the shingles and over the gutter.

How far should gutter be from roof line?

A safe distance between the gutter and the roof edge should be between 2 to 3 inches. If the gutter distance is more than 3 inches, the rain will run off the roof and won’t drain properly.

Should fascia be screwed or nailed?

Replacement fascia requires 4d galvanized casing nails. … Hometime.com recommends using screws instead of nails when replacing fascia to avoid jarring the existing framing with hammering.

Can you install a drip edge on an existing roof?

The drip edge is often replaced when new shingles are installed, but it can be replaced at any time. Asphalt roof shingles can become brittle in cold weather, so wait until a warm (but not hot) day to remove and replace eave stripping.

How much does it cost to install a drip edge?

The cost of drip edge Drip edge is always going to be included in your roof replacement. Because of this, it’s going to have an impact on the price you’ll pay for your new roof. The standard drip edge used (aluminum) is going to be around $2.00 a linear foot, including labor to install.

Does drip edge go on rakes and eaves?

A drip edge should be installed on the eaves and rakes of the roof, flush with the decking and fascia. On eaves, the drip edge is installed directly to the deck with underlayment installed over it for proper water shedding. On rakes, the underlayment is installed over the drip edge.

Does roofing paper go on before drip edge?

The best way is to install the roof drip edge only along the eaves first, then place ice-and-water barrier (in the snowbelt) or felt paper (underlayment) over the drip edge. This lets any water that gets on the roof run down the underlayment and over the drip edge.

Is drip edge and flashing the same thing?

Drip edges are metal sheets, usually shaped like an “L,” installed at the edge of the roof. Also called drip edge flashing or D-metal, they serve a vital function by directing water away from the fascia and into the gutter.

Does a shed roof need drip edge?

Your shed should be built to withstand the elements. That means repelling water in the most efficient way possible. Installing drip edge around the perimeter of the shed is the best way to keep water out and away from your shed.

Do roofs need overhangs?

In general, a south-facing overhang will direct the sun’s rays lower on the window, allowing less light in and preventing that light from heating up the house in the summer. This means less need for air conditioning, less energy used and less money spent. … So large roof overhangs are functional and they also look good!

What is the overhang of the roof called?

What Is a Soffit? Your roof by necessity, will often times extend over the walls of your home. This overhang can go by a few names, such as the house eaves or the rafters of your roof. The underside of this overhang, when given a finished appearance, is known as the soffit, which means “something fixed underneath”.

How far should shingles overhang the rake?

The edge of the shingles should hang over a roof between an inch and an inch and a half — or between a half inch and three-quarters of an inch if drip edge flashing is installed. Too much overhang and the shingles could blow off in high winds; too little can allow water to seep into rake or fascia boards.

Why is water dripping from my fascia?

If the water is coming from a leak between the gutter and the fascia, it is very likely that this is a gutter problem and that the back of the gutter was not installed correctly.

Why is water dripping from my soffit?

Gutter Problems A gutter that is clogged with organic debris such as leaves, or that is damaged so that water does not flow down the gutters as intended, can lead to water leaking through the house’s soffit.

Why is water dripping from my eaves?

Should I be concerned about water dripping from the inside the eaves of my house? It’s leaking from the ventilation holes in the aluminum underneath the overhang of my roof. … The usual cause of this trouble is a build up of ice along the bottom edge of a roof. This is called an ice dam and it poses a roof leak hazard.
