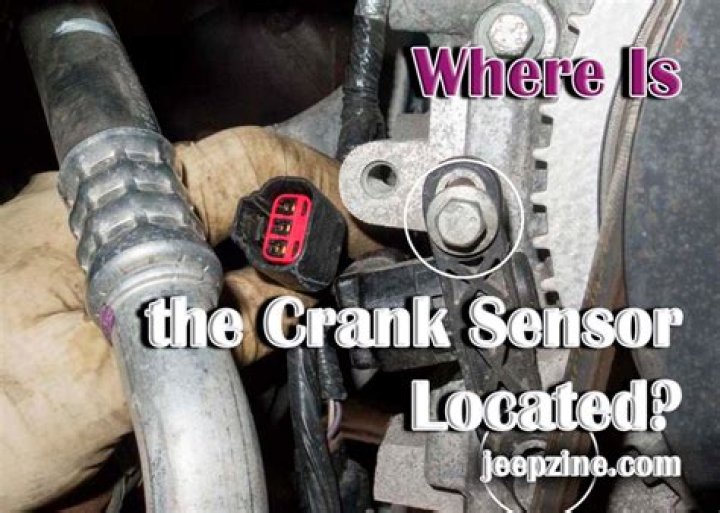

The crankshaft sensor is usually located near the bottom of the block, toward the front of the engine. In most cases, you’ll find it behind the harmonic balancer. In some vehicles, you might find the crankshaft sensor behind the timing cover, near the bottom of the block, though this is rare.

Will a car start if the crank sensor is bad?

The beginnings of issues with the sensor that times the crank can start with stalling out or with your check engine light coming on. Once the problem becomes severe, significant damage can happen to the engine if you continue to drive it.

What happens when a crank position sensor goes bad?

Vehicle is Stalling and/or Backfiring Along the same lines as the symptom above, a problem with your crankshaft position sensor could cause your vehicle to stall and/or backfire. Stalling is more common than backfiring as the interruption of the crankshaft signal can cause the engine to be cut off.

Is an engine speed sensor the same as a crankshaft sensor?

Registered. To VW the Crank Position and the “Engine” speed sensor are one in the same. The Vehicle Speed Sensor is something else entirely. The Crank Postion goes in front of the block near the oil filter housing.

Does crank sensor control fuel pump?

Technically the crank sensor does indirectly control the fuel pump on a lot of vehicles, when the ignition is switched on the pump runs for a couple of seconds to pressurise the system, it then stops and will only start to run again when the engine starts to rotate, this rotation is sensed by the crank angle sensor …

Can I replace crankshaft sensor myself?

While the crankshaft position sensor is a pretty sophisticated piece of equipment, and you might be intimidated by the idea of replacing it yourself, you probably shouldn’t be. With a good set of instructions, the right tools, and some effort, you can replace your crankshaft sensor yourself.

Does the crankshaft sensor have a fuse?

The crankshaft sensor in modern passenger vehicles runs on 12 volts of DC power. … Possible causes for the sensor not receiving power include a blown fuse, frayed wire, a faulty powertrain control module and a bad ground or loose connection.

Will disconnecting battery reset crankshaft sensor?

To reset the check engine light you can disconnect the battery via the negative battery terminal and let the vehicle sit for an hour before reconnecting the battery. … A failed crankshaft position sensor will generally cause the vehicle to stalls when it’s running or cause the vehicle to not start at all.

How long does it take to change crankshaft sensor?

The labor to replace the sensor is just under 1.5 hours according to my labor guide and the part is approx $50.

What happens if I don't do a crankshaft relearn after replacing the crankshaft sensor?

When the crank sensor is replaced, it must be resynced to the PCM. Without resyncing, the PCM cannot properly determine the position of the crankshaft.

Article first time published on

How do I fix code P0315?

1. Repair or replace wiring harness around crankshaft position sensor.
2. Repair or replace crankshaft position sensor.
3. Repair or replace crankshaft or related components.
4. Repair or replace timing belt.
5. Repair or replace powertrain control module.

Can you bypass a crank position sensor?

No. You just cannot bypass the crankshaft sensor, the car will crank but will not start. The DME needs to see this signal in correlation with the cam sensor for start up and fuel injection sequence.

What sensors can cause a car not to start?

A bad Crankshaft Position sensor is a common cause of no starts. The signal from this sensor goes to the PCM or ignition module that switches the ignition coil(s) on and off. If you have an RPM signal, a bad ignition module or PCM may not be switching the coil(s) on and off.

Can you clean a crank sensor?

Spray a small amount of solvent on the sensor. Wipe it dry with another rag. Replace the camshaft sensor, and tighten the screws.

What will a faulty speed sensor do?

Therefore, a failing speed sensor will have a direct impact on automatic transmission operation. One of the most common signs of a bad speed sensor is abnormal automatic transmission operation. If the VSS is faulty, the transmission may exhibit symptoms such as delayed shifts, hard shifts, and limited gear operation.

What sensor measures engine speed?

A tachometer is a sensor device used to measure the rotation speed of an object such as the engine shaft in a car, and is usually restricted to mechanical or electrical instruments. This device indicates the revolutions per minute (RPM) performed by the object.

Which sensor measures the engine speed?

A crank sensor is an electronic device used in an internal combustion engine, both petrol and diesel, to monitor the position or rotational speed of the crankshaft. This information is used by engine management systems to control the fuel injection or the ignition system timing and other engine parameters.

Will a crank sensor throw a code?

From what I understand so far, they almost always throw a code when they go out.

How much does it cost to get a crankshaft sensor replace?

The sensor will cost somewhere between $50 and $100 depending on the manufacturer. However, installation can really vary depending upon the car, and in some cases runs upwards of $600 to $700 or more.

Can a bad crank sensor cause no power to fuel pump?

If either due to a faulty crank sensor, or ecu, the crank sensor signal is not being read, the ignition and fuel pump systems will not power up.

Does crank sensor control injectors?

The crank position sensor also manages fuel injector function in vehicles with distributorless ignition systems. … A failed crank position sensor may not trigger fuel injectors at all which will result in a no-start condition for the vehicle.

How do you test a crank sensor with an ohm meter?

A multimeter can measure voltage, current, and resistance. You can remove the sensor, and then test the resistance. Attach one end of the multimeter to each wiring lead of the sensor. Resistance of zero means that the there is a short circuit.

How do you test a crank sensor?

1. Unplug the CKP sensor electrical connector.
2. Set your digital multimeter to DC voltage scale using a low range.
3. Turn the ignition key to the On position, but don’t start the engine.
4. Touch the DMM black lead to ground.

Can a bad crankshaft sensor cause limp mode?

Limp Mode means the engine is not able to perform as it should and has been incapacitated . If the engine starts, then definitely it cannot be due Cam Position Sensor or Crank Position Sensor malfunction. It could be Coolant Temperature Sensor or the Manifold Pressure Sensor which can cause this in an engine.

How do you reset a crank sensor without a scanner?

1. Turn off all of the accessories. …
2. Accelerate the vehicle to 55 mph at part throttle. …
3. Cruise at 55 mph for another 5-6 minutes.
4. Decelerate to 45 mph without using the brakes, and maintain 45 mph for 1 minute.
5. Perform 4 deceleration cycles, without using the brakes, of 25 seconds each where no specific speed is necessary.

Does disconnecting battery erase codes?

Disconnecting the battery will clear the error codes and reset the check engine light.

Can a bad battery throw codes?

A dying, fading car battery means low voltage. As a result, your car’s computer, which is responsible for reporting error codes, is also receiving low voltage. An error code will be generated which will in turn trigger the Check Engine Light or even the Battery Charge Warning Light to display.

How do you align a crankshaft sensor?

1. Rotate crankshaft until cylinder 1 is 45 degrees BTDC. …
2. Working above the right drive axle, remove the crankcase timing plug.
3. Install the TDC timing peg finger tight.
4. Hole on crankshaft pulley will align with hole on timing cover.

What scan tool can relearn crankshaft position sensor?

The FOXWELL NT510 GM scanner will relearn the crankshaft position sensor on a 2009 chevy cobalt.

What is code P0315?

P0315 OBD-II Trouble Code (Crankshaft Position Sensor Variation Not Learned) By Jerry Renshaw. You probably know by now that an illuminated Check Engine Light (CEL) means that a sensor that monitors a system in your drivetrain has noted a reading outside of normal parameters.
