If a joint has only two non-collinear members and there is no external load or support reaction at that joint, then those two members are zero- force members. In this example members DE, DC, AF, and AB are zero force members.

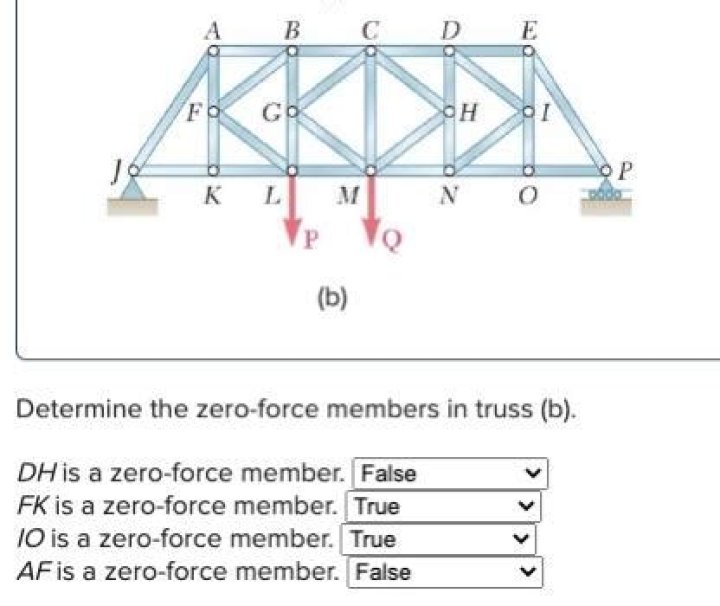

Which are the zero force members in the given truss?

Zero-Force Members: structural members that support No loading but aid in the stability of the truss. Two-Force Members: structural members that are: a) subject to no applied or reaction moments, and b) are loaded only at 2 pin joints along the member.

How many zero force members are there?

If a joint has only two non-collinear members and there is no external load or support reaction at that joint, then those two members are zero- force members.

Do frames have zero force members?

Zero force members are members in a truss/frame that theoretically have no force in them. The third member will be zero-force. … Joins with two members and no external load.

Which of the following are 0 force members Mcq?

Explanation: IH is a zero member force as is FI. So, IC too will be zero force members. In the above figure, force is applied at joint c and its magnitude is 10N with downward direction. .

What are Noncollinear members?

applied to non-collinear member → Non-collinear member is a zero-force member. Zero-force members. Page 14. Method of joints: Method to determine forces in members.  Entire truss is in equilibrium if and only if all individual pieces (truss.

What is joint method?

The method of joints is a process used to solve for the unknown forces acting on members of a truss. The method centers on the joints or connection points between the members, and it is usually the fastest and easiest way to solve for all the unknown forces in a truss structure.

What is redundant truss?

Redundant Truss is a Truss in which the excess number of members that makes it impossible to determine all member forces by using the equilibrium equation set.

What is a zero force truss?

Zero force members in a truss are members which do not have any force in them (obviously…). … At a TWO member joint: If those members are NOT parallel AND there are no other external loads (or reactions) at the joint THEN both of those members are zero force members.

What trusses lie on a plane?

Explanation: The planar trusses lie on a plane. Like for e.g. the trusses in the bridges. These trusses are the main supports of the bridge. They are extended straight vertical and are strong enough to resist various changes in the weather.

Article first time published on

What is a two force member?

A two-force member is a structure that has exactly two points where external forces can be applied. This means that the net force acting at those two points must lie along the line that contains those two points of application.

What are the zero forces from the following truss Mcq?

The zero member force are having no loadings. They doesn’t involve in the loading part of the story in the trusses. They doesn’t provide the stress nor the strain to the body of the structure. Hence they have no load associated with them.

What is the degree of freedom of space roller joint?

What is the degree of freedom of space roller joint? Explanation: It can move along a slot in the base plane. … Explanation: To treat every member of a space truss as axial- force members, every joint is assumed to be of ball & socket type. 10.

Which of the following is not true for method of joints?

Which of the following is not true for the method of joints? Explanation: Method of joints can be used to solve for up to 2 unknowns at a joint as we have only 2 equilibrium equations. 4.

What are the 3 types of trusses?

• Gable Trusses. A variety of the trusses shown above fit into the common or gable truss category, including the King Post, Queen Post, Howe, and Double Howe trusses. …
• Hip Truss. …
• Scissor Roof Truss. …
• Attic Truss. …
• Mono Truss. …
• North Light Roof Truss. …
• Flat Truss. …
• Gambrel Truss.

What are joints in trusses?

The method of joints is a process used to solve for the unknown forces acting on members of a truss. The method centers on the joints or connection points between the members, and it is usually the fastest and easiest way to solve for all the unknown forces in a truss structure.

How do you identify a two force member?

If an element has pins or hinge supports at both ends and carries no load in-between, it is called a two-force member. These elements can only have two forces acting upon them at their hinges. If only two forces act on a body that is in equilibrium, then they must be equal in magnitude, co-linear and opposite in sense.

What do zero force members do?

Zero force members are used to increase stability and rigidity of the truss and to support various loading conditions.

Why is M 2j 3?

In a simple truss, m = 2j – 3 where m is the total number of members and j is the number of joints. A simple truss is constructed by successively adding two members and one connection to the basic triangular truss. In a simple truss, m = 2j – 3 where m is the total number of members and j is the number of joints.

What is redundant member?

Definition of redundant member : a member in a framed structure that is not actually necessary for support.

What is structural redundancy?

Structural redundancy: Structural redundancy is defined as redundancy that exists as a result of the continuity within the load path. Any statically indeterminate structure may be said to be redundant. For example, a single span is statically determinate and cannot distribute load or stress to another span.

Which support is not used in truss?

Which of the following material is not used in making trusses? Explanation: Concrete is good in compression but weak in tension. Explanation: Space between adjacent bents in a roof truss is called a bay.

What is principal rafter?

Definition of principal rafter : one of the upper diagonal members of a roof truss supporting the purlins and common rafters or those joints to which the roof boarding is secured.

Which truss is in triangular section?

The pitched truss, or common truss, is characterized by its triangular shape. It is most often used for roof construction.

What are the 3 principle forces?

Principles of Flying. (1) Lift, (2) Gravity force or Weight, (3) Thrust, and (4) Drag. Lift and Drag are considered aerodynamics forces because they exist due to the movement of the Airplane through the Air.

Can two force members have moments?

A two-force member is a body that has forces (and only forces, no moments) acting on it in only two locations. In order to have a two-force member in static equilibrium, the net force at each location must be equal, opposite, and collinear.

What type of force is tension?

The tension force is the force that is transmitted through a string, rope, cable or wire when it is pulled tight by forces acting from opposite ends. The tension force is directed along the length of the wire and pulls equally on the objects on the opposite ends of the wire.

Which force does not cause rotation?

If any of the force is touching that axis, that force is not considered or is insufficient to cause a rotation. If a force is concurrent then the perpendicular distance of the force from the line of an axis is zero, thus no rotation.

Which of the following kinetic friction is smaller Mcq?

Which of the following kinetic friction is smaller? The coefficient of kinetic friction is less than the coefficient of static friction.

Which of the following is not considered as the true condition for the three members to be zero force members?

8. Which of following is not considered as the true condition for the three members to be zero force members? Explanation: The three members to be having a zero member must have any two of the three members collinear. There must be no external forces acting on the section or the joint which is being selected.

How many DOF are there in each node of space frame element?

There are three displacement DOF at each node (see the right side of Figure 3-1), and up to three reaction forces at a restrained joint. A space truss has six rigid body motions, all of which must be restrained in an analysis.
