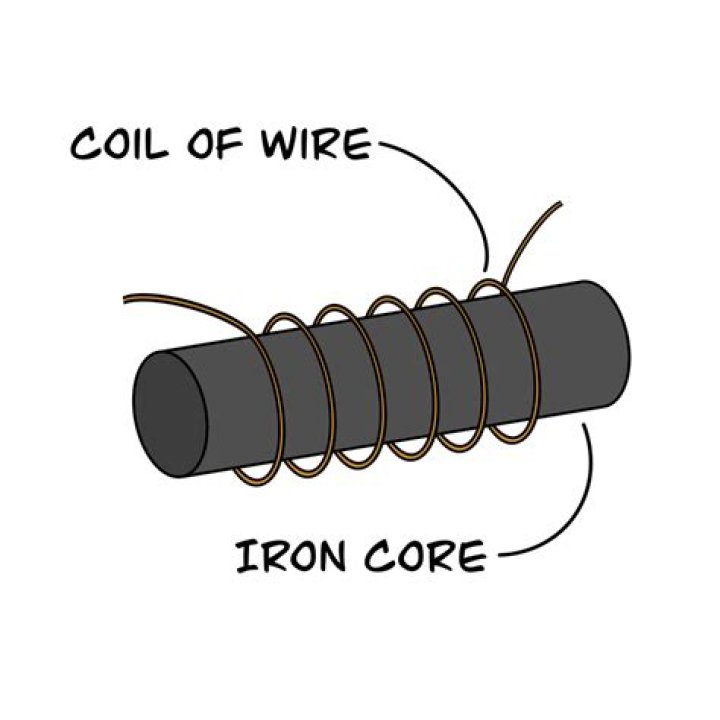

A simple electromagnet consisting of a coil of wire wrapped around an iron core. A core of ferromagnetic material like iron serves to increase the magnetic field created. The strength of magnetic field generated is proportional to the amount of current through the winding.

What is a coil of wire wrapped around an iron core called?

A coil with an iron core is called an electromagnet. The iron core increases the coil’s magnetic field strength. A simple electromagnet is made by coiling wire around an iron nail. A simple electromagnet.

What is a current-carrying coil wrapped around an iron bar?

solenoid: A current-carrying coil of wire that acts like a magnet when a current passes through it. electromagnet: A temporary magnet consisting of an iron or steel core wound with a coil of wire, through which a current is passed.

What is produced when a coil of wire is wrapped around an iron core and rotated near a magnet?

Produces an electric current when coil of wire is wrapped around an iron core and rotated near a magnet. -mechanical energy is changed to electrical energy. … When an electric current flows through the wire in the electromagnet, a magnetic field is produced in the coil.

What is called electromagnet?

: a core of magnetic material (such as iron) surrounded by a coil of wire through which an electric current is passed to magnetize the core.

When current flows through a single coil of wire wrapped around an iron core a blank can be created?

When an electric current flows in a wire, it creates a magnetic field around the wire. This effect can be used to make an electromagnet . A simple electromagnet comprises a length of wire turned into a coil and connected to a battery or power supply. wrapping the coil around a piece of iron (such as an iron nail)

What is the force that wraps around a magnet?

The magnetic field is the area around a magnet that has magnetic force. All magnets have north and south poles. Opposite poles are attracted to each other, while the same poles repel each other.

When electricity runs through the coil of wire What type of force is created around the coil?

A wire coil is an electrical conductor with one or more turns designed to produce a magnetic field. This is commonly used to increase the strength of a magnetic field. The more turns of wire on the coil, the stronger the magnetic field will be.

Does electricity flow through the wire around the core?

An electromagnet is made by sending electric current through an insulated wire wrapped around the iron core. How does the number of winds or wire around a core affect the strength of the magnetism? Electricity gets in more, because the more winds equals more magnetism.

Why is a wire wrapped around a nail?

Electricity and magnetism are linked phenomena. Moving electrons always create a magnetic field. Electrons moving along a wire make a magnetic field that goes in circles around the wire. … But when you coil the wire around an iron nail, the magnetic domains inside the nail line up and make a strong, temporary magnet.

Article first time published on

How does an iron core increases magnetic field?

Complete step by step answer:When a soft iron rod also known as the core is inserted inside a solenoid then the strength of the magnetic field increases because the iron ore gets magnetized due to magnetic induction and this combination of the solenoid and the soft iron core is called an electromagnet.

Is a coil of wire with an iron rod called a plunger?

A solenoid consists of a coil of wires with a metal plunger that is able to move freely within the coil.

Why is the wire used in an electromagnet coiled?

The advantage of using the coil shape is that it increases the strength of the magnetic field produced by a given current. The magnetic fields generated by the separate turns of wire all pass through the center of the coil and add (superpose) to produce a strong field there.

Why electromagnets are made of soft iron?

The soft iron gets easily magnetised due to its high susceptibility and also loses its magnetism as soon as the induced magnetic field is removed because of its low-retentivity. … This is also a great reason for choosing soft iron for the making of electromagnets. Hence, Option (A) is the correct answer.

What is an electromagnet that is made from wires carrying an electric current?

An electromagnet is a coil of wire with an electric current flowing through it. When the wire is coiled around in a cylinder, we call this a solenoid. The solenoid becomes an electromagnet when a current flows through it.

When a piece of iron is placed in a magnetic field?

Q.When an iron piece is placed in a magnetic fieldC.the magnetic field will not be affectedD.the iron piece will breakAnswer» b. the magnetic lines of force will bend away from their usual paths in order to pass through the piece

Is iron magnetic yes or no?

Magnetic metals Iron is magnetic, so any metal with iron in it will be attracted to a magnet. Steel contains iron, so a steel paperclip will be attracted to a magnet too. Most other metals, for example aluminium, copper and gold, are NOT magnetic.

Which of the following reasons why an iron atom acts as a magnet?

Magnets attract iron due to the influence of their magnetic field upon the iron. … When exposed to the magnetic field, the atoms begin to align their electrons with the flow of the magnetic field, which makes the iron magnetized as well. This, in turn, creates an attraction between the two magnetized objects.

When electricity conducted passes through a wire that is coiled carefully around an iron bar or rod the iron metal becomes a an?

An electromagnet consists of a long coil of insulated copper wire wound around an iron rod. When the two ends of the coil are connected to a cell, a current passes through the coil and produces a magnetic effect. This magnetic effect magnetises the iron rod. So, the iron rod becomes an electromagnet.

When an iron nail has a wire carrying a current wound around it?

By simply wrapping wire that has an electrical current running through it around a nail, you can make an electromagnet. When the electric current moves through a wire, it makes a magnetic field. If you coil the wire around and around, it will make the magnetic force stronger, but it will still be pretty weak.

What is produced when electricity flows in a conductor a coil B magnetism c nail D wire?

Electromagnetism is produced when an electrical current flows through a simple conductor such as a length of wire or cable, and as current passes along the whole of the conductor then a magnetic field is created along the whole of the conductor.

What is a coil of wire wrapped around a bar of iron or other ferromagnetic material?

Devices with Electromagnets An electromagnet is a coil of wire wrapped around a bar of iron or other ferromagnetic material. When electric current flows through the wire, it causes the coil and iron bar to become magnetized. An electromagnethas north and south magnetic poles and a magnetic field.

What is wrapped around copper wire?

Magnet wire or enameled wire is a copper or aluminium wire coated with a very thin layer of insulation. … The wire itself is most often fully annealed, electrolytically refined copper. Aluminium magnet wire is sometimes used for large transformers and motors.

Why are the wires wrapped in copper?

Copper has greater conductivity compared to aluminum, which results in smaller (diameter) conductors being required to be used. Copper doesn’t undergo major cycles of expansion and contraction as compared to aluminum.

What happens to the metal core typically iron when electric current electricity flows through the coiled wire solenoid in an electromagnet?

What happens to the metal core (typically iron) when electric current (electricity) flows through the coiled wire (solenoid) in an electromagnet? The metal core becomes magnetized. … They are similar because they convert the same things (electrical current and mechanical force).

What force makes the coil spin?

The permanent magnet attracts its opposite pole on the coil and repels its like pole, causing the coil to spin. Another way to describe the operation of the motor is to say that the permanent magnets exert forces on the electrical currents flowing through the loop of wire.

When electric current flows through the wire the wire and the iron become a?

An iron bar placed through the center of the coiled wire would become a temporary magnet, called an electromagnet, as long as the electric current is flowing through the wire.

Which material would you wrap wire around to make an electromagnet?

A simple electromagnet using everyday materials, constructed as part of a student activity. Electromagnets can be created by wrapping a wire around an iron nail and running current through the wire. The electric field in the wire coil creates a magnetic field around the nail.

Why steel nails are attracted to the magnet?

The nail will stick to the bar magnet because it will become magnetized. The presence of the nearby north pole rearranges the magnetic domains inside the steel so that their south poles all point toward the north pole of the permanent magnet. … Science Behind It: Iron and most steels contain magnetic domains.

What happened to the iron nail with copper wire when you connected it to the dry cell?

When the copper wire is coiled around an iron nail and attached to a battery, the atoms in the nail start to line up, too. … The electricity from the battery creates a magnetic field around the coiled wire and nail that acts just like a bar magnet.

Why does iron core increase induced current?

The iron core is a good conductor, so the currents induced in a solid iron core will be large. Furthermore, the eddy currents flow in a direction which, by Lenz’s law, acts to weaken the flux created by the primary coil.
