Concrete joints are used to compensate when concrete expands or shrinks with changes in temperature. Concrete joints are normally used to prevent cracks when the concrete shrinks by creating forming, tooling, sawing, and placing joint formers.

What is the purpose of construction joints?

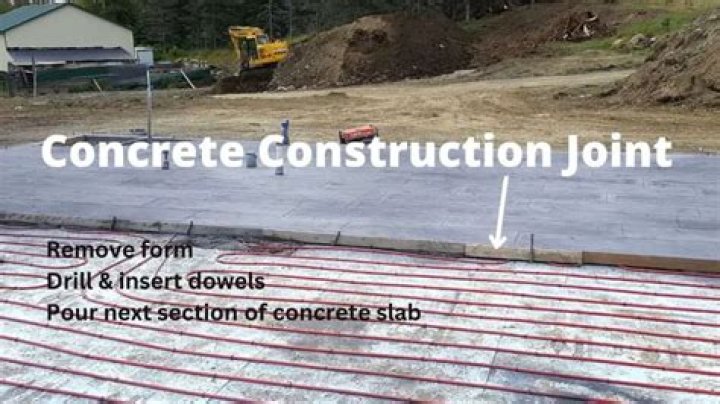

CONSTRUCTION JOINTS A construction joint is defined by the ACI1 as ‘the surface where two successive placements of concrete meet, across which it may be desirable to achieve bond and through which reinforcement may be continuous‘.

What happens if you don't cut concrete?

Cutting too early can mark the pavement surface as well as cause joint raveling. Late sawing can result in random concrete cracks. Shallow cracks aren’t sufficient to prevent uncontrolled cracking while deep cuts are excessively labor intensive and undermine the aggregate interlock in the concrete.

How often do you need control joints in concrete?

Usually, expansion joints should be no farther apart than 2 to 3 times (in feet) the total width of the concrete (in inches).

Is it too late to cut control joints?

WHEN TO SAW CONTROL JOINTS Cutting freshly poured concrete too late can lead to unwanted cracks in the concrete, rendering the joints ineffective. … For most concrete work, cutting should take place within the first 6 to 18 hours and never beyond 24 hours.

How long should concrete cure before removing forms?

Walls and columns can be removed after about 24-48 hours. Slabs, with their props left under them, can typically be removed after 3-4 days. Soffits, with their props left under them, can be removed after one week. Props supporting slabs under 15 feet can be removed after one week.

What is an isolation joint in concrete?

An isolation joint is a separation between adjacent sections of a concrete structure to allow relative movement in three directions and through which all of the bonded reinforcement is interrupted.

How far apart should you cut concrete?

While experience will help you get a better idea of what works for your concrete and climate, there is a rule of thumb to start with. Cuts should be approx.2-3 times the thickness of your slab in feet. For example, a 6” slab would have cuts 12′ – 18′ apart.

How soon can you walk on concrete?

After 24 hours, you can walk on your newly poured concrete, but avoid dragging your feet, ‘doing the twist’, or allowing your pets to walk on it as their claws can scuff the concrete.

Does rebar prevent cracking concrete?

Steel reinforcing bars and welded wire reinforcement will not prevent cracking. Reinforcement is basically dormant until the concrete cracks. After cracking, it becomes active and controls crack widths by restricting crack growth.

Article first time published on

How do you cut concrete without cracking it?

Make sure there are no electrical or plumbing lines under the area. Next, connect your concrete saw to a running supply of water and power it up. Make sure you wear the necessary safety gear and clothing before you begin cutting. Finally, position the saw on one of the edges of the marked area and start cutting slowly.

Why we do groove cutting?

The purpose of the Groove Cutting is to weaken the slab along the approved line so that the slab cracks there instead of somewhere else. … Their purpose is to distribute the load evenly between slabs thereby protecting the concrete along the joints.

What happens if you don't put expansion joints in concrete?

If you have a concrete floor in your commercial building, you know expansion joints are necessary to allow for the natural expansion and contraction that occurs from temperature changes. Without these joints, large cracks can travel across your floor, creating costly damage.

Are expansion joints necessary?

Expansion joints are virtually never needed with interior slabs, because the concrete doesn’t expand that much—it never gets that hot. Expansion joints in concrete pavement are also seldom needed, since the contraction joints open enough (from drying shrinkage) to account for temperature expansion.

Do I need expansion joints in concrete driveway?

Every concrete slab, inside (basements, garages, etc.) or outside (driveways, patios, entries, etc.) are required to have joints every eight feet horizontally and vertically. Expansion Joints provide space between concrete slabs as a buffer for expansion on hot days and contraction when it is cold.

What happens if you dont water concrete?

If there is not enough water, the concrete will be hard to work into place. Concrete that is too dry on the left, and too wet on the right. #3: Once the concrete is poured, you can just leave it to dry, or, better yet, blow some fans on it to help it dry faster.

How often should you water new concrete?

DO spray new concrete with water. One of the most common methods for curing concrete is to hose it down frequently with water—five to 10 times per day, or as often as you can—for the first seven days. Known as “moist curing,” this allows the moisture in the concrete to evaporate slowly.

Does it take 100 years for concrete to cure?

Does concrete take 100 years to cure? No, this is a bit of a myth with the concrete industry. While concrete does continue to harden indefinitely, pore moisture has to drop below a certain level at some point and this isn’t typically 100 years.

How long does 4 inches of concrete take to cure?

Your concrete should be solid enough to walk on, without leaving footprints, after anything from 24 to 48 hours. By seven days, your concrete should be cured to at least 70 percent of its full strength.

Does rain hurt new concrete?

If the rain occurs when the concrete is fresh (about 2-4 hours after mixing), the surface should be protected from the rain. … If the concrete has stiffened to the point where it is ready for grooving and grinding (typically 4-8 hours after mixing), damage due to rain is usually no longer a concern.

Why do cats walk on wet concrete?

Cats walk on wet concrete because they aren’t familiar with the concept of drying concrete. The presence of animal paws spoils the look of freshly poured, smooth concrete.

Where do you put expansion joints in concrete?

Expansion joints are put in place before the concrete is poured. Expansion joints are used to allow the slab to move and not put stress on whatever it abuts. These joint are placed where a slab meets a building, where a slab meets another slab, and where a pool deck meets the coping.

When should you float concrete?

Float the concrete when you’re done grooving and edging (Photo 6). Floating removes the marks left by edging and brings the surface one step closer to a final finish. You may have to bear down on the float if the concrete is starting to harden.

What can you put between concrete joints?

Expansion joints must be sealed with a flexible sealant, like QUIKRETE® Self-Leveling Polyurethane Sealant or QUIKRETE® Non-Sag Polyurethane Sealant…or an expansion joint strip, to prevent water from penetrating the joint and deteriorating the sub-base.

What is top and bottom reinforcement?

TOP Bar : Top bar acts as reinforcement which provides strength against flexular moment. It also act reinforcement for compression load which is induced on the top side of beam. Bottom bar : Bottom bar provide strength for tensile load that is induced in lower portion of beam.

How far apart is rebar in concrete?

Place rebar in a grid pattern with a spacing between bars of approximately 12 inches. In either case, blocks should be used under the reinforcement to keep centered within the concrete.

How can I strengthen concrete without rebar?

If you’re not doing a commercial-level project but still want some additional reinforcement for your concrete, a wire mesh is a great (and cheaper) alternative to rebar. Wire mesh use is becoming much more common for projects like a home driveway.

Why do they cut new concrete?

Saw cuts are a used to create control joints in concrete, which help control where cracking occurs due to shrinkage. The cuts should be made at a predetermined spacing and only after the concrete has obtained sufficient strength but before internal cracking begins.

What does a toe kick saw do?

ideally if existing flooring or plywood being removed runs under cabinets or drywall. Additionally, toe kick saws are used for underlayment removal often found in kitchens that may have vinyl floors installed above.

What is meant by VDF flooring?

This system is called Vacuum Dewatered Floors (VDF) The Vacuum Dewatered (VD) Flooring method, is a system for laying high quality concrete floors with superior cost-effectiveness. The key to the use of this method is the dewatering of concrete by vacuum process.

Is code for concrete road?

1IS : 383-19705IS: 2386 (Part-III) 19636IS: 3812 (Part-I) 20037IS: 1489-Part-I 19918IRC: 15-2011 – Standard specifications and code of practice for construction of concrete road (Fourth revision)
