The base current controls the collector current when the transistor is in the active region. A transistor is made up of two PN junctions, an emitter junction and a collector junction. The active region is when the emitter junction is forward biased and the collector junction is reverse biased.

Why is base current low?

The base region is thin and lightly doped. Due to this, only a few of the large number of electrons emitted from heavily doped emitter recombined with holes in the base region, and hence base current is very low.

Why base current of a PNP transistor is too small while comparing with collector and emitter current explain?

The base region is thin and lightly doped. Due to this, only a few of the large number of electrons emitted from heavily doped emitter recombined with holes in the base region, and hence base current is very low.

What happens when the base current of a transistor is increased?

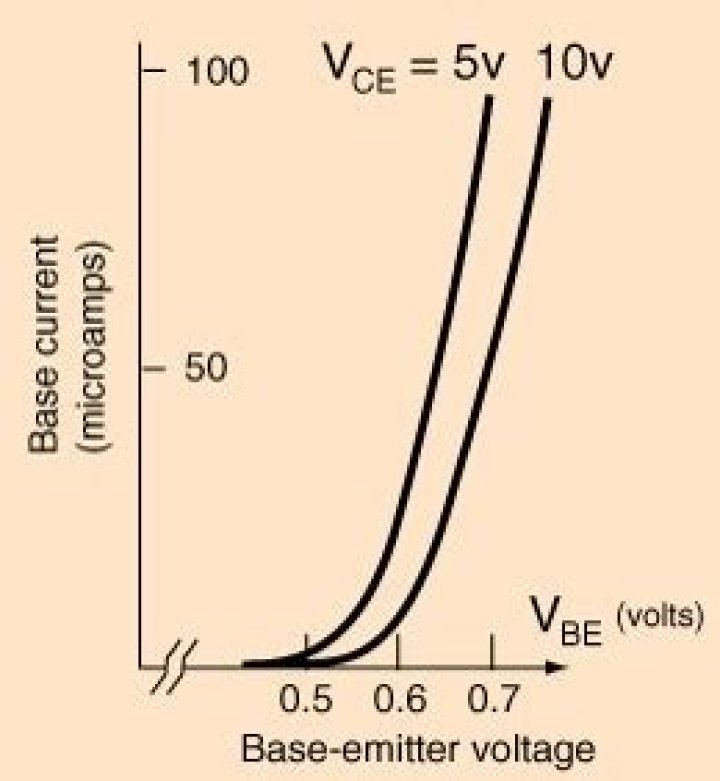

An increase in this voltage results in increased currents in both the base and the collector, and indeed, an increase in base current causes an increase in B-E voltage.

How does the value of base current affect the collector current for a constant value of collector emitter voltage?

As the base current increases the collector increases proprtionally till the operating point reaches the boundary between the active region and the saturation region. At this point the collector current will be equal to collector saturation current.

What is the most important fact about the collector current?

What is the most important fact about the collector current? It is measured in milliampere. It equals the base current divided by the current gain.

Can base current be negative?

For a negative Vbe, where the voltage on the base is more negative than the voltage on the emitter, there will be current flowing out of the base terminal, as the reverse leakage current of the B-E diode junction as it is reverse-biased.

Why BJT is called bipolar?

Bipolar transistors are a type of transistor composed of pn junctions, which are also called bipolar junction transistors (BJTs). Whereas a field-effect transistor is a unipolar device, a bipolar transistor is so named because its operation involves two kinds of charge carriers, holes and electrons.

Why BJT is used as switch?

The transistor can be used as a switch if biased in the saturation and cut-off regions. This allows current to flow (or not) in other parts of a circuit. Because a transistor’s collector current is proportionally limited by its base current, it can be used as a sort of current-controlled switch.

How do transistors increase current?

A current at the base turns on the transistor. The current is then amplified and travels from the emitter of the transistor to the collector. … During the negative alternation of the input signal, the transistor current increases because the input voltage aids the forward bias.

Article first time published on

What is the reason why it is possible to force current to flow between the emitter & collector whenever the base emitter junction is forward biased?

When The Base Emitter P-N Junction is forward Biased it ceases to act like a diode and is just a conductor and since the N-Doped Collector region is filled with electrons and the Baser-Emitter Depletion region no longer exists the Current Flows From Collector to Emitter.

Why collector current is quite large?

Collector Current It increases for larger emitter currents because the larger number of electrons injected into the base exceeds the available holes for recombination so the fraction which recombine to produce base current delines even further.

Why the width of the base region of a transistor is kept very small compare to other regions?

Why the width of the base region of a transistor is kept very small compared to other regions? Base region of a transistor is kept very small and very lightly doped so as to pass most of the injected charge carriers to the collector.

Why collector current in transistor is greater than base current?

The base current in the BJT is due to the recombination of holes and electrons. If we take it the other way round, the larger the base current the greater is the recombination, so the collector current should reduce, but Beta Ic/Ib. …

Why thickness of base is typically smaller than emitter and collector?

The collector has the weakest doping level so that the depletion layer will be large so that it can handle a large reverse voltage. … The depletion region in the base will be smaller than the depletion region in the collector because the base has a higher doping level !

When the collector current increases What does current gain do?

Hence, the value of current gain decreases or increases with respect to the collector current. base current.

Why does collector current increase with temperature?

As the temperature of a transistor increases, the collector current will increase because: Intrinsic semiconductor currrent between the collector and base increases with temperature. Its flow through the biasing resistors drives the base more positive, increasing forward bias on the base-emitter diode.

What is the relationship between collector current and base current?

What is the relationship between the base-emitter and collector-emitter voltages of a bipolar transistor? Generally, the current that flows from the emitter to the collector or vice versa is the base current times the DC current gain (hFE).

What is base current?

Base current is like base voltage. Base current is calculated using base kVA/MVA and base voltage. These are used as a reference to Cal. the per unit quantity (current, voltage) and thereby per unit impedance values. These per unit values are used in power system fault analysis mainly in Cal.

How do you find the base current?

Assuming the LED is white, its VF is about 3V. From these, you can calculate the base current IB=9V−0.6V220kΩ and collector current IC=9V−0.2V−3V330Ω, and then find β=ICIB.

How is base voltage of a transistor calculated?

This can be done using the formula: Vcc = Vrc + Vrb + Vbe + (Ic + Ib)Rc + IbRb + Vbe, where “Vrc” is the voltage across the collector resistor; “Vrb” is the voltage across the base resistor (connected across the base) and the junction between the collector resistor and the transistor collector; and “Vbe” is the voltage …

When the Q point moves along the load line VCE decreases when the collector current?

The below characteristics curve of transistor shows that when the Q point moves along the load line, VCE decreases when the collector current increases.

What term is used to indicate a current gain in a common emitter configuration?

Current gain (α) The current gain of a transistor in CE configuration is defined as the ratio of output current or collector current (IC) to the input current or base current (IB). The current gain of a transistor in CE configuration is high.

When a transistor switch is on the collector current is limited by?

Because a transistor’s collector current is proportionally limited by its base current, it can be used as a sort of current-controlled switch.

Why BJT is called current controlled device?

A BJT is a current controlled device because its output characteristics are determined by the input current. A FET is voltage controlled device because its output characteristics are determined by the Field which depends on Voltage applied.

How is BJT used as a faster switch *?

Explanation: If BJT is to act as a switch with negligible power dissipation, then BJT is operated in the cut-off and saturation region, as in the TTL family. When BJT has to be operated as a fast switch, then it is operated in the active and cut-off region, as in the ECL family.

What is the function of BJT?

The main basic function of a BJT is to amplify current it will allow BJTs are used as amplifiers or switches to produce wide applicability in electronic equipment include mobile phones, industrial control, television, and radio transmitters. There are two different types of BJTs are available, they are NPN and PNP.

Which current is largest in a bipolar transistor?

• The emitter current is the sum of base and collector current and is the largest.
• Next largest is the collector current.
• Base current is the smallest.

What is difference between BJT and Mosfet?

BJTMosfetTemperature coefficientNegative temperature coefficientPositive temperature coefficientInput ImpedanceLowHighSwitching FrequencyLowHigh

Why do transistors amplify current?

A transistor acts as an amplifier by raising the strength of a weak signal. The DC bias voltage applied to the emitter base junction, makes it remain in forward biased condition. … Thus a small input voltage results in a large output voltage, which shows that the transistor works as an amplifier.

Does transistor reduce current?

The transistor (BJT, MOSFET…) doesn’t generate a larger current from a smaller current. It merely allows a low current to control the flow of a much larger current. The large current is provided by a power supply of sort connected to the transistor circuit.
